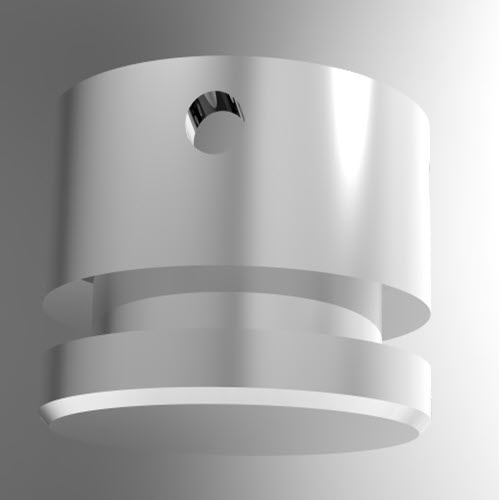

Workshop Press.co.uk tooling ram cap bottom side view

Workshop Press.co.uk tooling ram cap top view

Workshop press optional tooling V-Block front view

Workshop press optional tooling V-Block facing down view

Dimensions for different sized Motorised Workshop Presses where letters displayed related to a particular dimension.

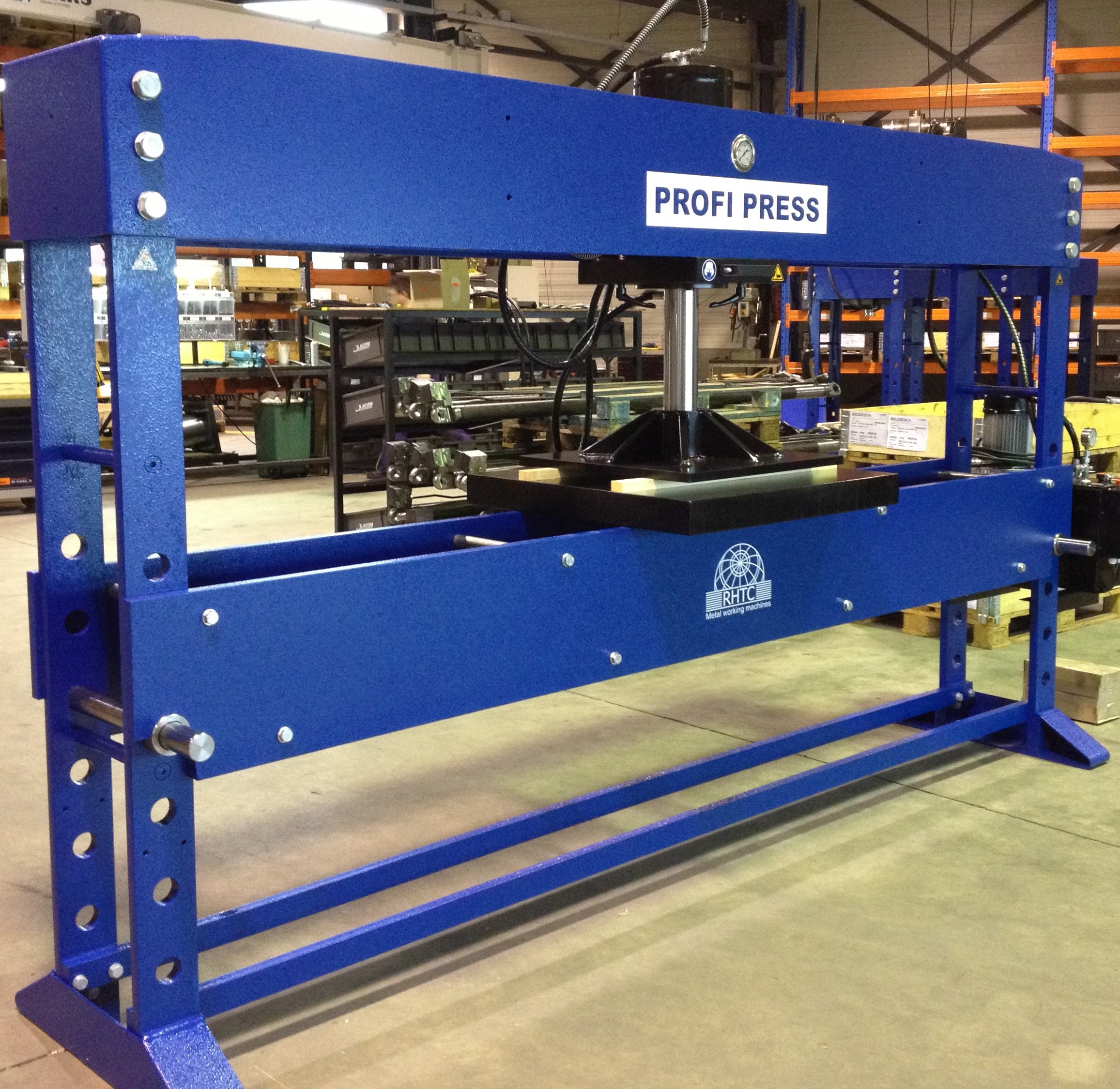

100 Ton Workshop Press 3000 mm working width

Please contact for prices

100 Ton Motorized Hydraulic Workshop Press with an extra-wide 3000 mm working width. Dual-acting cylinders, adjustable table, joystick control for precise operation, CE certified.

SKU: 10058-100TON-3000MM Categories: Hydraulic Presses - 100 Ton, Hydraulic Presses for Sale - Industrial-Grade Power & Precision, Special and Custom Presses Tags: 100 Ton Press, 100 Ton Workshop Press 3000 mm working width, 3000 mm working width, Bespoke Hydraulic Press, Custom Hydraulic Press, Dual Acting Cylinder, hydraulic workshop press, Industrial Press, Large Metal Press

Description
Additional information

This 100 Ton Motorized Hydraulic Workshop Press with an extended 3000 mm working width is designed for precision and heavy-duty presswork. Engineered with the latest in hydraulic press technology, this machine is perfect for workshops requiring a wider working space for larger materials. Manufactured in the EU, it meets all CE certification standards, providing reliable and efficient performance. With features like dual-acting cylinders, a movable press cylinder, and joystick control for ease of use, this press excels in flexibility and precision for large-scale operations. The adjustable working table allows easy handling of different press applications, making it a versatile and indispensable tool for heavy pressing needs.

Technical Specifications

Pressure force [kN]: 981
Maximum pressure [bar]: 258
Piston stroke [mm]: 380
Oil delivery [ltr/min]: 5.64 / 17.2
Oil capacity [dm³]: 46
Working speed [mm/sec]: 2.47
Approaching speed [mm/sec]: 7.54
Return speed [mm/sec]: 9.06
Motor power [kW]: 2.2
Voltage [V]: 400/3
Frequency [Hz]: 50/60
Revolutions per minute [rpm]: 3000
Insulation protection [IP]: 54
Working width [mm]: 3000
Weight [kg]: 1350

Industries Using the Machine and Their Uses

Automotive Manufacturing: Pressing large metal panels, vehicle frames, and chassis components
Aerospace Industry: Forming and pressing larger aircraft components
Heavy Machinery Manufacturing: Fabricating and assembling machine parts
Shipbuilding Industry: Pressing and forming structural elements for ships and vessels
Construction Sector: Fabricating large beams, supports, and other construction materials
