Scantool 16ATF Pillar Drill • V-Belt Driven • 20 mm • MT2 • 3-Phase

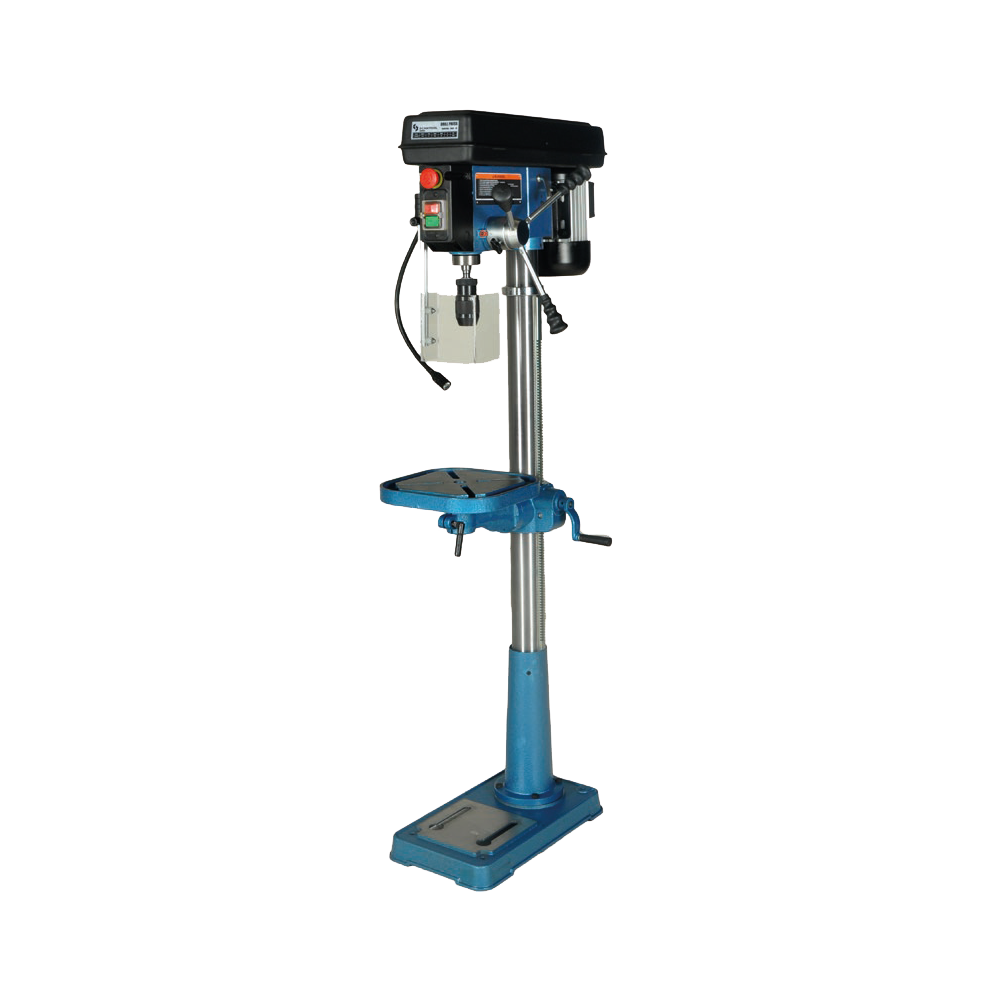

Scantool Pillar Drill 16AEF from WorkshopPress.co.uk

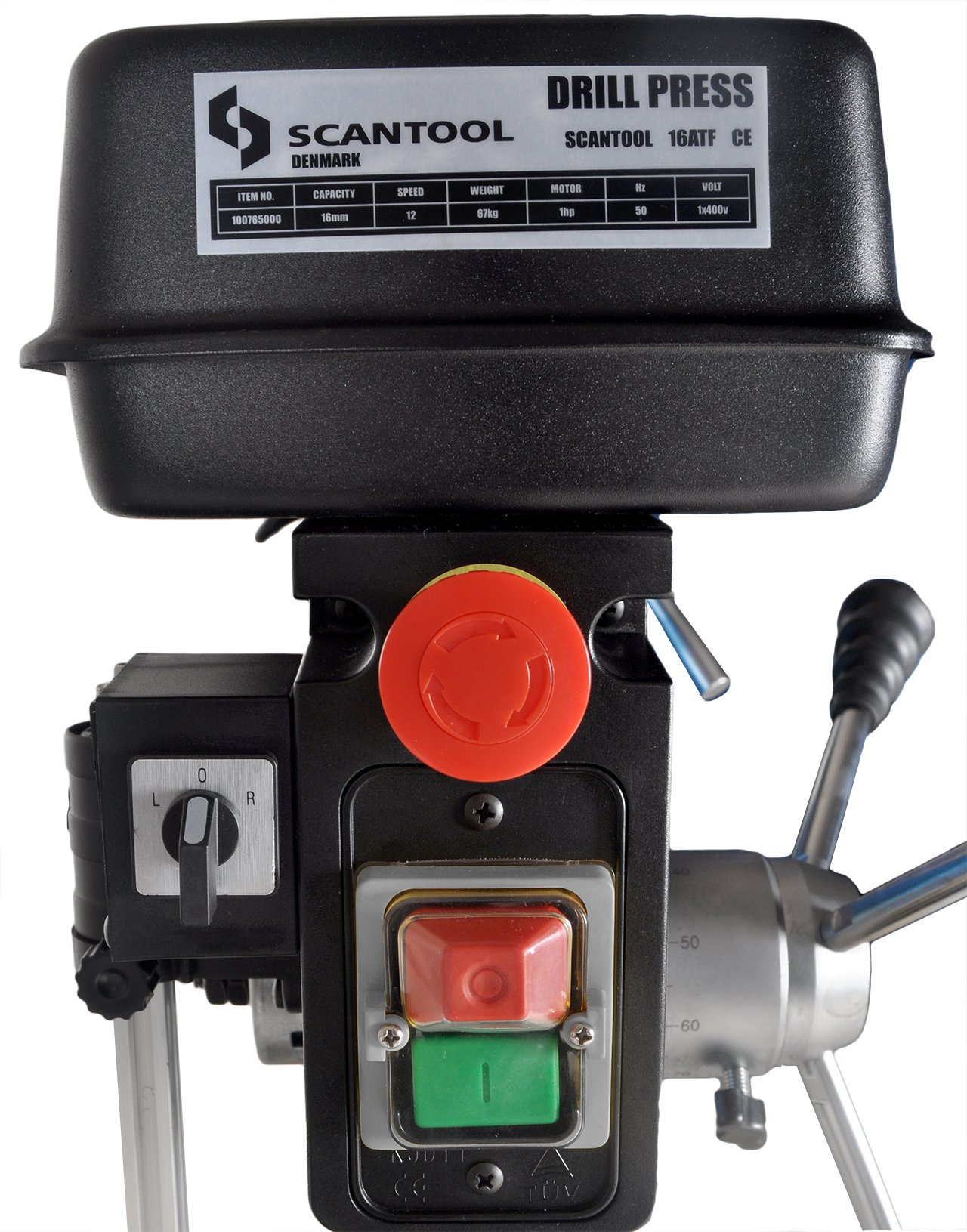

Headstock view of a V-Belt driven pillar drill from Scantool offered by The Workshop Press Co UK

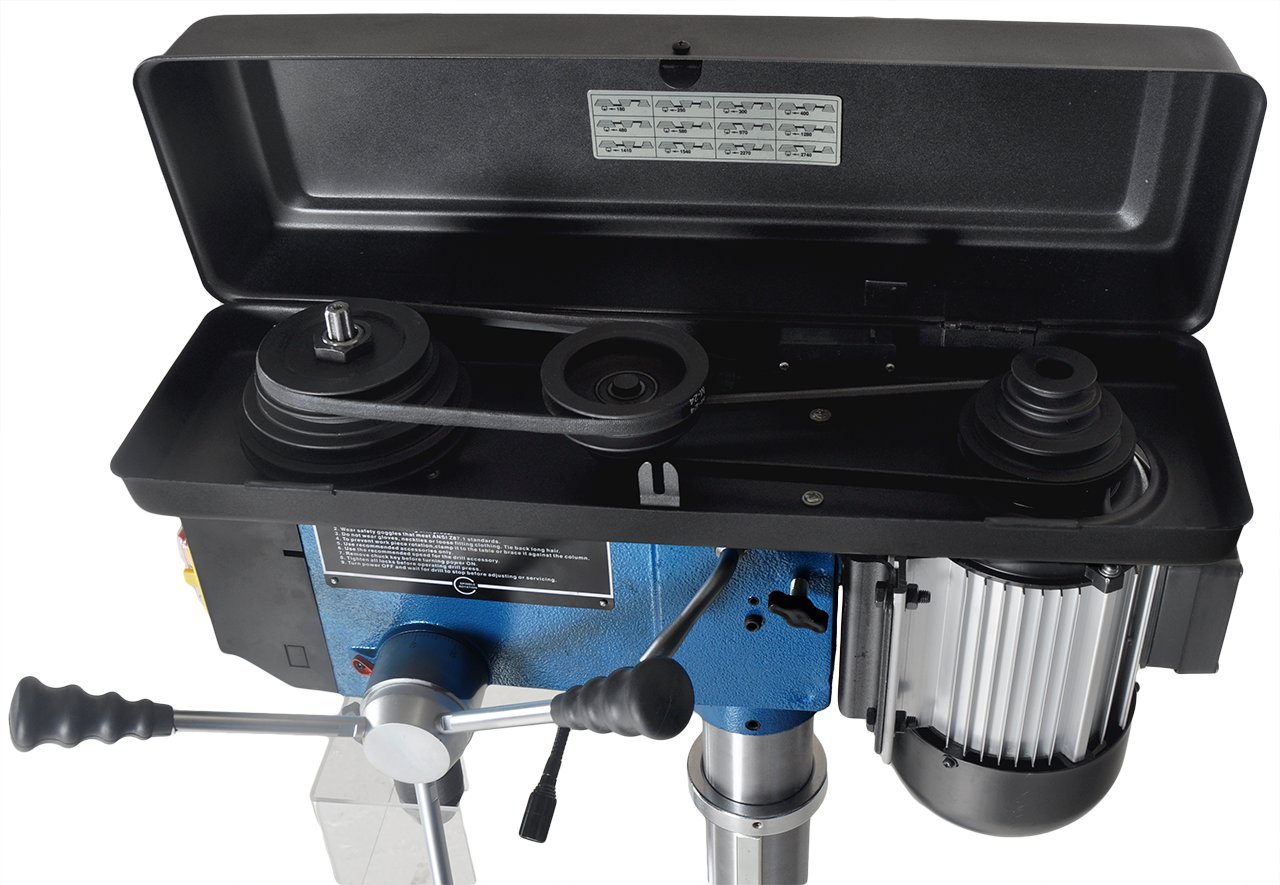

SCANTOOL 16ATF Drill Press with Top Lid Open Exposing V Belts and Pulleys
SCANTOOL 16ATF Drill Press On/Off Buttons and Depth Gauge on Tiller Wheel

Scantool 16ATF Pillar Drill • V-Belt Driven • 20 mm • MT2 • 3-Phase

Please contact for prices

Professional-grade SCANTOOL 16ATF V-belt driven drill press with advanced safety features, reversible spindle, and tilt-able working table for versatile workshop and industrial use.

SKU: 100765000 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , ,

The SCANTOOL 16ATF V-belt driven drill press is an excellent choice for both workshops and industrial settings. Equipped with a Morse Taper No. 2, this drill press offers versatile drilling applications. It features a reversible spindle rotation, an auto lock chuck for secure bit holding, and a large tilt-able working table with a degree scale. Safety is prioritized with a separate emergency stop, working light, and a safety guard complete with a micro switch. The SCANTOOL 16ATF is designed for durability and ease of use, making it ideal for various drilling tasks. Its competitive pricing further enhances its appeal.

Technical Specifications

  • RPM: 280-2380
  • Voltage: 3x400V – 50 Hz
  • Motor: 0.75 kW
  • Drilling Capacity: 1-20 mm diameter
  • Taper: MT2
  • Drill Chuck: 16 mm
  • Max. Spindle Travel: 80 mm
  • Throat Depth: 190 mm
  • Swing Capacity: 410 mm (14″)
  • Max. Distance Spindle/Table: 720/1210 mm
  • Table Size: 285 x 285 mm
  • Base Size: 480 x 270 mm
  • Max. Tilt of Table: +/- 45°
  • Number of Spindle Speeds: 12
  • Reversible: Yes
  • On Pedestal: Yes
  • Height: 1600 mm
  • Net Weight: 67 kg

Features and Uses

  • Morse Taper No. 2 for versatile drilling applications
  • Reversible spindle rotation for increased functionality
  • Auto lock chuck for secure bit holding
  • Separate emergency stop and working light for enhanced safety
  • Safety guard complete with micro switch
  • Designed for both home workshops and industrial use
  • Manufactured using advanced technology on semi-automatic production lines
  • Simple construction for high quality and long life
  • Large tilt-able table with degree scale
  • Competitively priced for professional use

Industries Using & Uses

  • Metal Fabrication: Precision drilling for metal components
  • Manufacturing: High-volume drilling in production lines
  • Automotive: Drilling and maintenance tasks for vehicle parts
  • Aerospace: Precision drilling for aircraft components
  • Construction: Versatile drilling for building and structural components
  • Home Workshops: High-quality drilling for DIY and small-scale projects

HM Scantool Professional Pillar Drill Capacity Chart Logo

Professional Pillar Drills
FAQ button for all product categories offered by The Workshop Press Company UK

View Pillar Drill Press FAQs by Clicking HERE

Additional information

Weight 67 kg
Dimensions 550 × 550 × 1700 cm
