AHB 60 • Profile Bender • Ring Roller • Hydraulic Dual Pinch • 60mm Shafts • NC Touchscreen

Name: AHB 60 • Profile Bender • Ring Roller • Hydraulic Dual Pinch • 60mm Shafts • NC Touchscreen
Availability: InStock

Please contact for prices

Powerful AHB-60 Profile Bender Ring Roller with 60mm shaft diameter, Delta touch screen HMI, and three driven rolls. Ideal for precise bending in various industries.

Description

The AHB-60 Profile Bender Ring Roller is engineered for high precision and efficient bending of metal profiles and rings. It features a 60mm shaft diameter and a top roll diameter of 177mm, driven by a robust 4 kW motor and operating at 400V/50Hz. The machine includes three driven rolls and bottom moveable rolls for enhanced versatility. The intuitive Delta touch screen HMI allows for easy control and operation. Built with a heavy-duty SR355 steel framework, the AHB-60 is suitable for demanding industrial applications, providing consistent and reliable bending performance.

Technical Specifications:

Shaft Diameter: 60mm
Top Roll Diameter: 177mm
Motor Power: 4 kW
Working Speed: 6.5 mm/min
Machine Dimensions: 1400mm (L) x 950mm (W) x 1500mm (H)
Weight: 1000 kg
Moveable Rolls: 2
Moveable Roll(s) Position: Bottom
Voltage: 400V
Frequency: 50Hz

Frequency: 50Hz

Features and Uses:

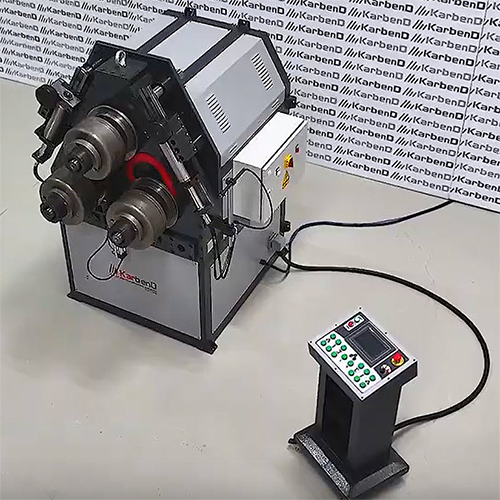

High-quality Delta touch screen HMI for user-friendly control

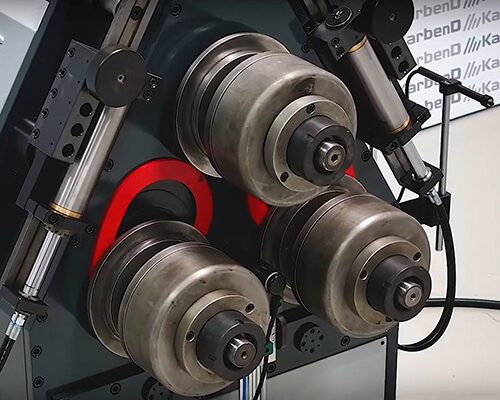

Three driven rolls for superior bending capabilities

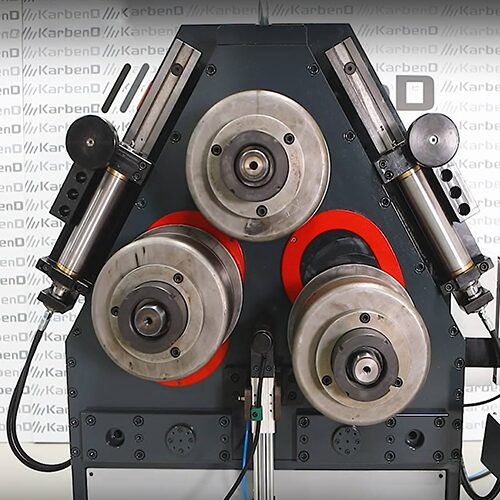

Bottom moveable rolls for increased flexibility
Heavy-duty SR355 steel framework for durability

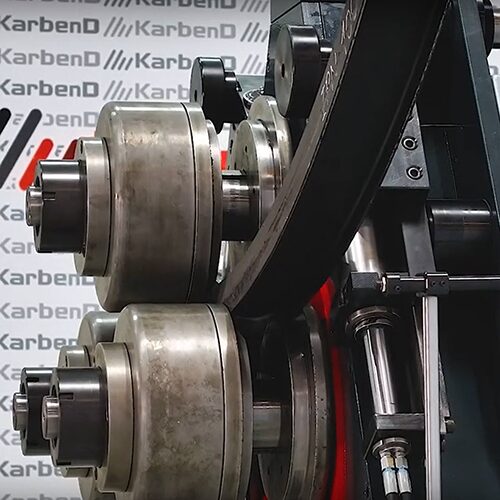

Accurate bending of various metal profiles and rings
Suitable for a wide range of industrial applications
Equipped with emergency stop and speed control for safety

Industries and Their Uses:

Construction: Bending metal profiles for handrails, safety rails, and structural components.
Automotive: Fabricating roll cages, chassis components, and custom metal parts.
Marine: Building boat pulpits, ship structures, and marine framework.
Art and Design: Creating metal sculptures, decorative elements, and architectural features.
Industrial Sites: Manufacturing safety barriers, machinery guards, and framework.
Transportation: Producing components for rail transport, bridges, and airplane frameworks.

Profile	Dimensions [mm]	Min. Bending Diameter [mm]
Equal Angle Leg Out	35 x 35 x 3	250
Equal Angle Leg Out	50 x 50 x 5	500
Equal Angle Leg In	30 x 30 x 3	400
Equal Angle Leg In	40 x 40 x 5	600
Equal Angle Leg In	50 x 50 x 6	1000
T-Section Leg Out	30 x 30 x 3	300
T-Section Leg Out	80 x 40 x 7.5	600
T-Section Leg In	30 x 30 x 3	300
T-Section Leg In	50 x 50 x 6	600
T-Section Leg In	70 x 35 x 6	1200
Flat Bar Hard Way	40 x 10	220
Flat Bar Hard Way	60 x 20	500
Flat Bar Hard Way	80 x 25	2100
Flat Bar Easy Way	50 x 5	200
Flat Bar Easy Way	80 x 16	400
Flat Bar Easy Way	80 x 20	1200
Flat Bar Easy Way	15	300
Flat Bar Easy Way	30	600
Flat Bar Easy Way	40	1400
Solid Bar	20	300
Solid Bar	35	600
Solid Bar	50	800
Solid Bar	25 x 15	200
Solid Bar	60 x 20	800
Solid Bar	70 x 2	1600
