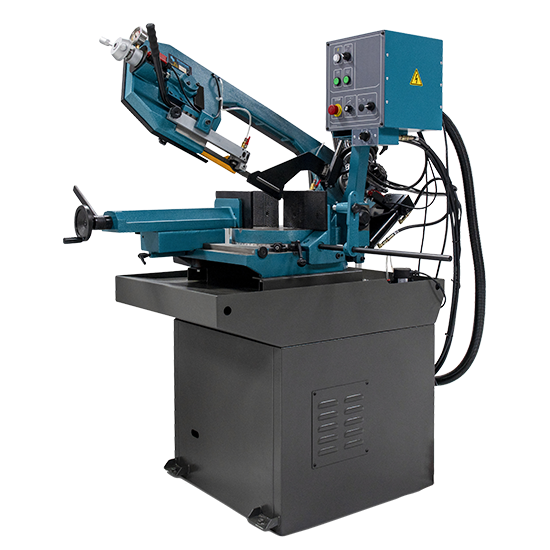

Metal Cutting Bandsaw • Scantool 320 GSHT

Technical Specifications

• Motor Power:
  1.5 kW
• Saw Blade Dimensions:
  2750 x 27 x 0.9 mm
• Saw Blade Speed:
  25 to 90 m/min
• Sawing Capacity at 0°:
  Round: ø255 mm
  Square: 240 x 240 mm
  Rectangular: 310 x 230 mm
• Sawing Capacity at 45°:
  Round: ø200 mm
  Square: 190 x 190 mm
  Rectangular: 120 x 180 mm
• Sawing Capacity at 60°:
  Round: ø115 mm
  Square: 115 x 115 mm
• Voltage:
  400V, 50 Hz, 3-Phase
• Dimensions (L x W x H):
  1400 x 700 x 1540 mm
• Weight:
  395 kg

Features and Uses

• Hydraulic Feed and Lift:
  Provides smooth and controlled movement of the saw bow for precision cutting.

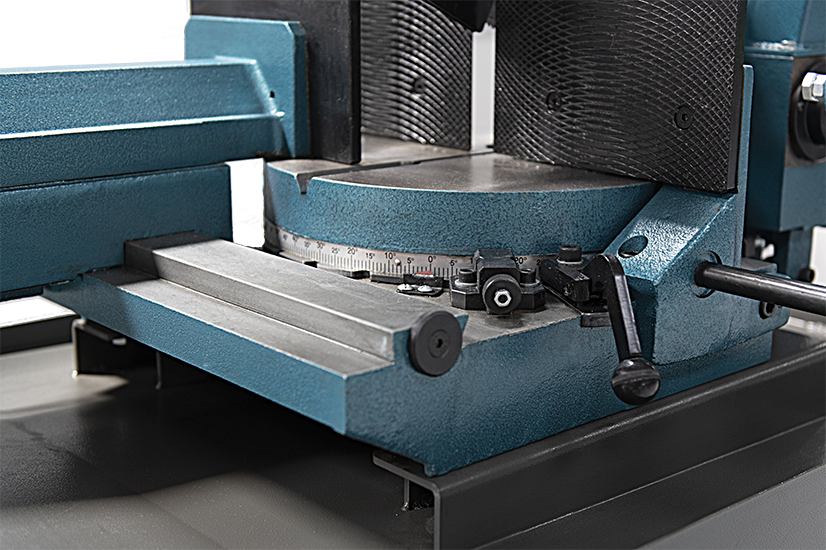

• Rotatable Saw Bow:
  Allows for versatile cutting angles to meet various application needs.
• Built-in Cooling System:
  Ensures clean and safe operation by maintaining optimal cutting temperatures.

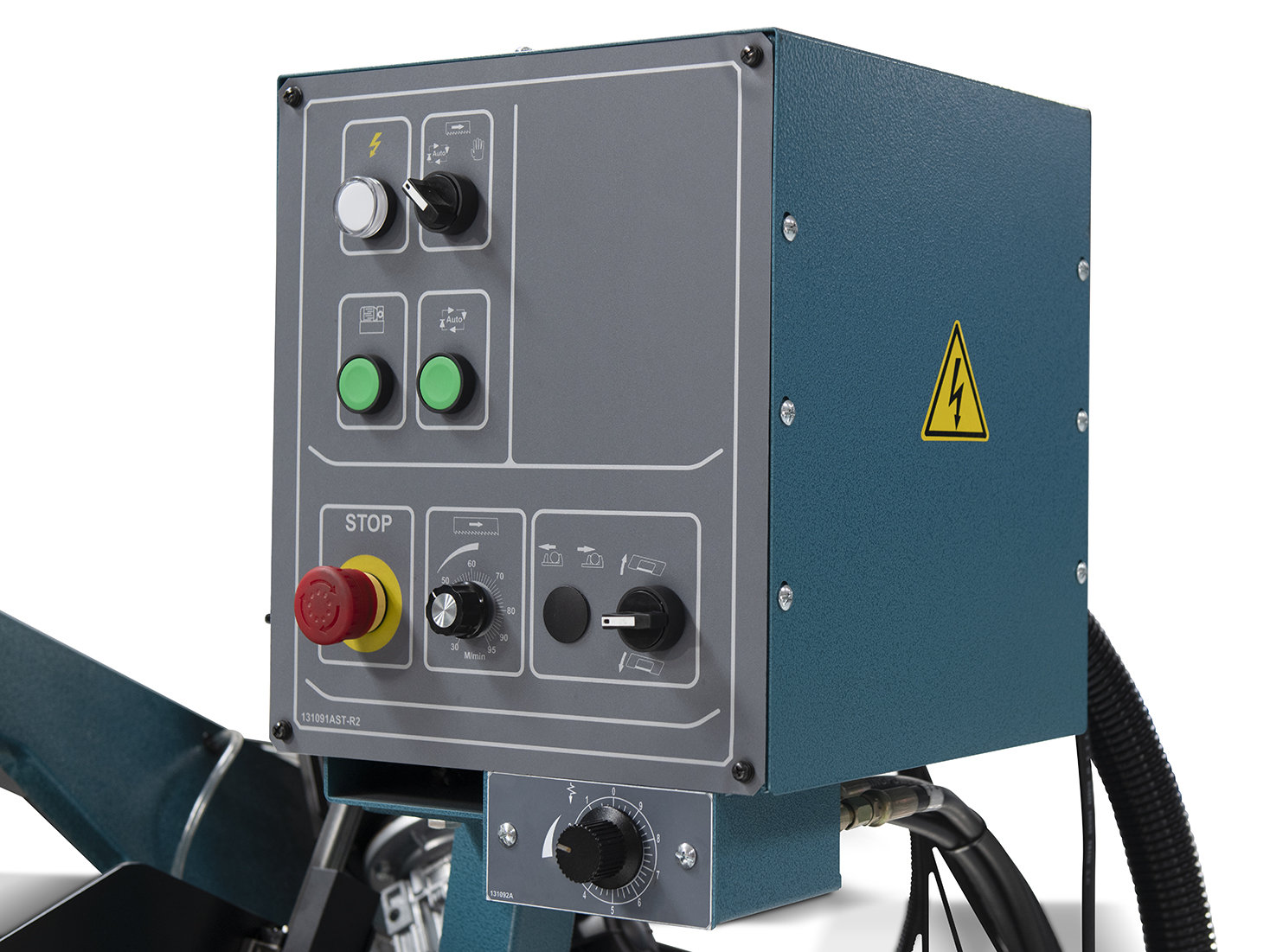

• Variable Speed Control:
  Offers adjustable speed settings to accommodate different cutting requirements.

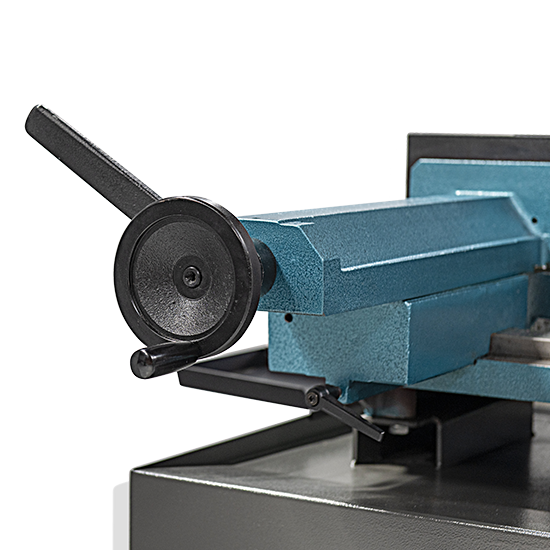

• Quick Release on Vice:
  Enables fast and easy adjustments for efficient operation.
• High Accuracy with Minimal Vibration:
  Delivers precise cuts with reduced vibration, enhancing accuracy.
• CE Certified:
  Complies with European safety and quality standards.

Industries Using the Machine and Their Uses

• Metal Fabrication:
  Precision cutting of steel and metal pipes.
• Manufacturing:
  Suitable for high-volume production environments.
• Construction:
  Ideal for preparing metal components for building projects.
• Automotive:
  Used for cutting metal parts and components in vehicle manufacturing.
