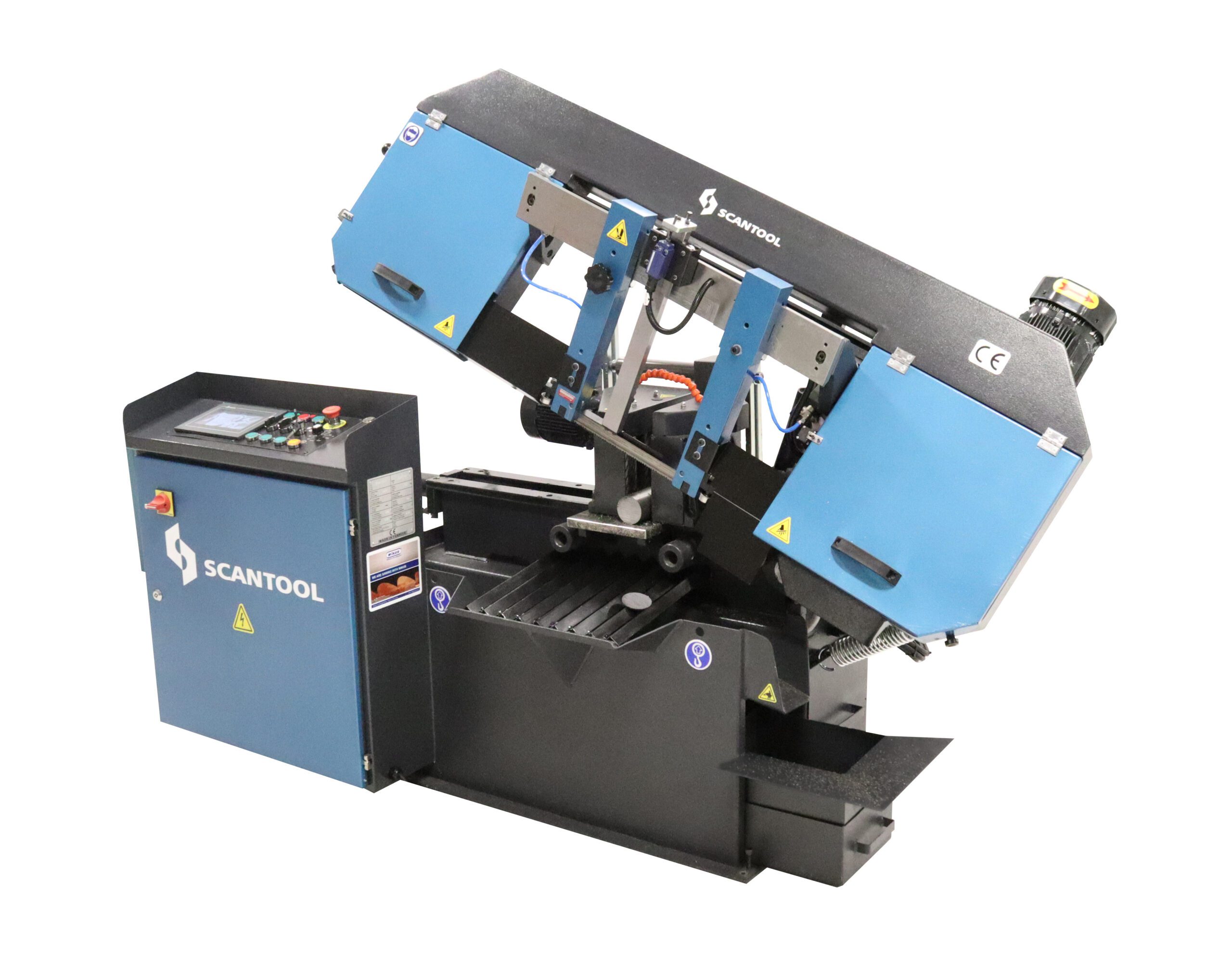

Metal Cutting Bandsaw • Scantool BS 320E

Technical Specifications

• Motor Power:
  2.2 kW
• Hydraulic Motor:
  0.4 kW
• Feeder Motor:
  0.25 kW
• Net Weight:
  770 kg
• Saw Blade Dimensions:
  3660 x 27 x 0.9 mm
• Saw Blade Speed:
  20 to 100 m/min
• Sawing Capacity at 0°:
  Round: ø320 mm
  Box Section: 320 x 320 mm
  Rectangular Section: 3000 x 320 mm
• Sawing Capacity at -45°:
  Round: ø320 mm

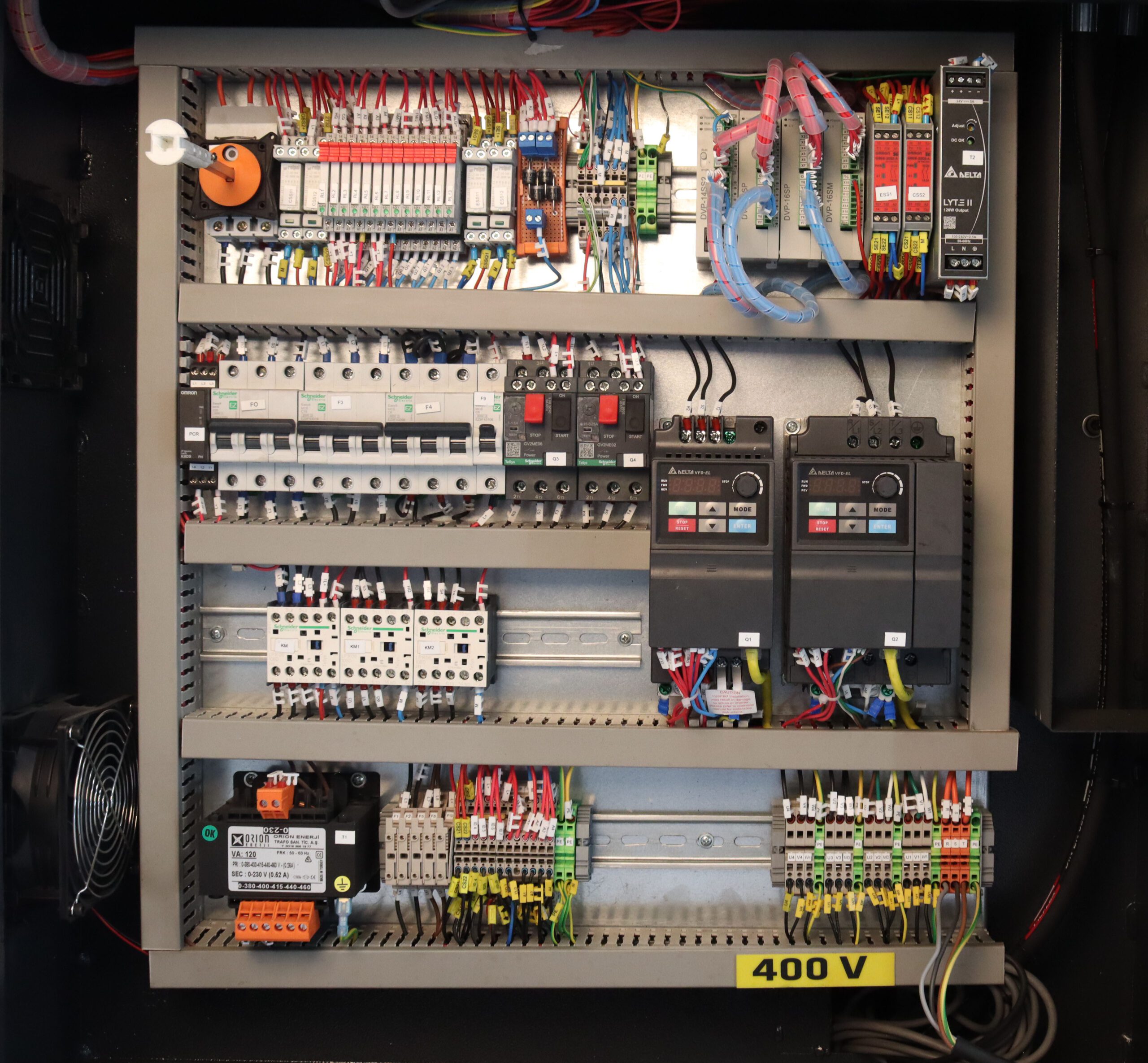

• Voltage:
  400V, 50 Hz, 3-Phase
• Working Height:
  640 mm
• Dimensions (L x W x H):
  1900 x 850 x 1300 mm

Features and Uses

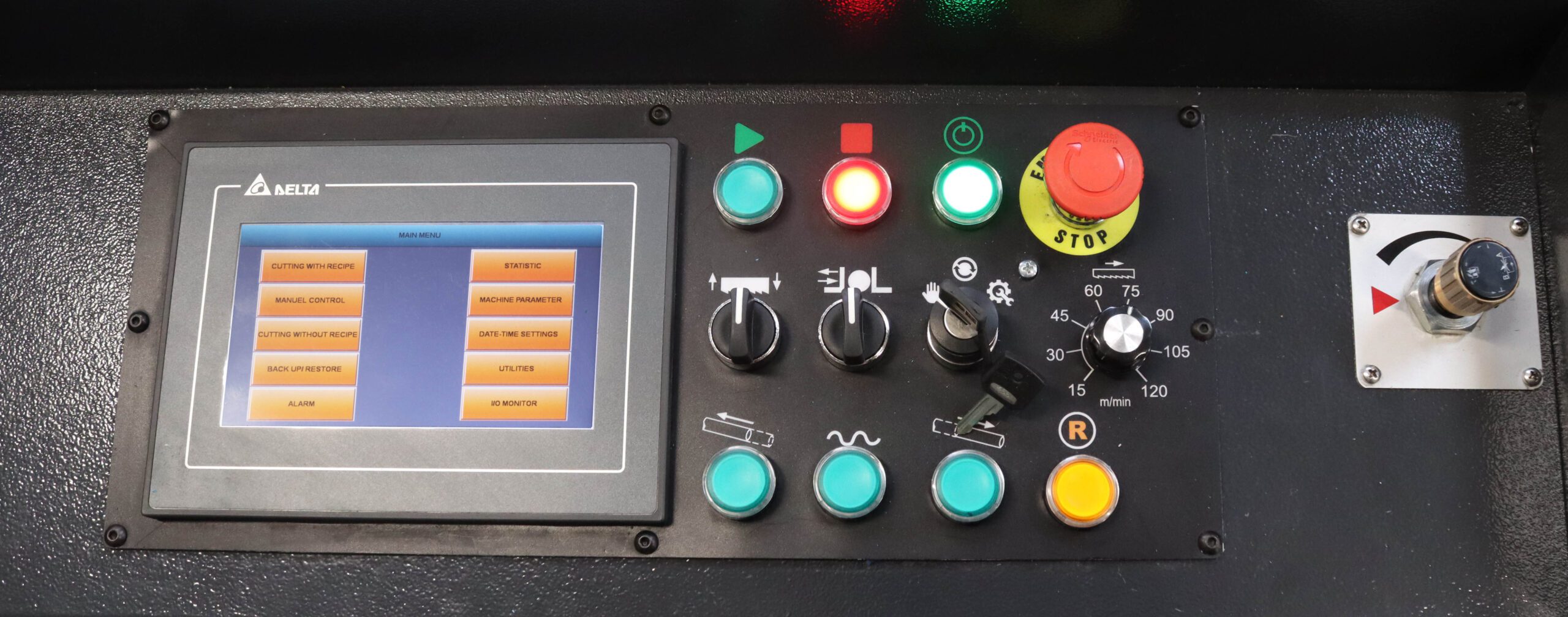

• Fully Automatic Operation:
  Controlled by a PLC controller and encoder for precision.
• Hydraulic Feed and Lift:
  Ensures precise cutting with hydraulic feed and lift of the saw bow.
• Hydraulic Vise:
  Provides stable and secure clamping during operation.
• Built-in Cooling System:
  Maintains a clean, dry, and safe working environment.
• Variable Speed Control:
  Adjustable speed for different cutting requirements.
• Quick Release on Vice:
  Allows for easy and fast adjustments.
• High Accuracy with Minimal Vibration:
  Ideal for mass production with precise cuts.
• CE Certified:
  Manufactured according to CE regulations for safety and quality.

Industries Using the Machine and Their Uses

• Metal Fabrication:
  Precision cutting of steel and metal pipes.
• Manufacturing:
  Automated cutting for large-scale production environments.
• Construction:
  Preparation of steel components for building and infrastructure projects.
• Automotive:
  Cutting metal parts and components for automotive manufacturing.
