Horizontal Beam Cambering Press • 150 Ton • PPHC150 • RHTC

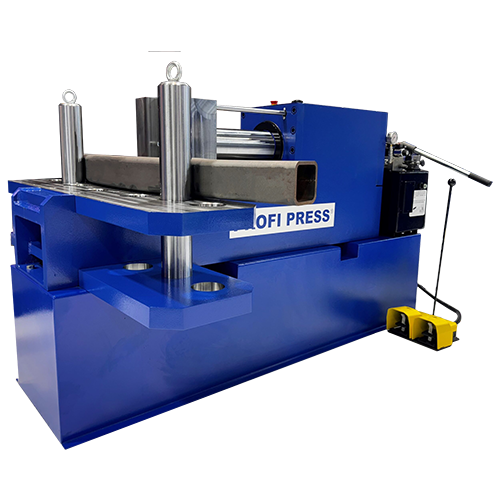

Close-up of Profi Press cambering press bending a square tube beam, highlighting its precision and stability

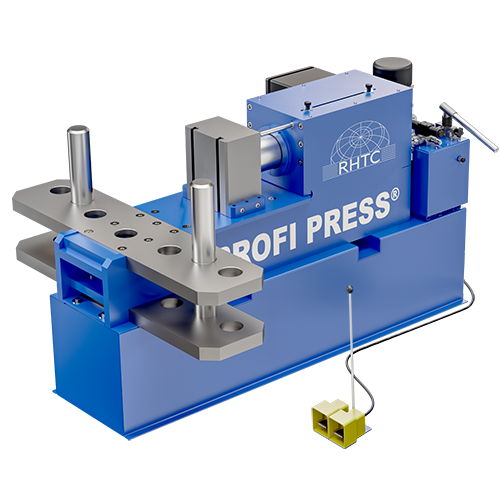

Profi Press Cambering Press - High-quality horizontal press for bending and straightening large beams and profiles.
PPHC Series RHTC Cambering Hydraulic Press Controls Centerr for stroke and pressure.

Horizontal Beam Cambering Press • 150 Ton • PPHC150 • RHTC

Please contact for prices

The Profi Press PPHC-150 Hydraulic Horizontal Press offers exceptional strength and precision for bending and straightening large profiles, bars, and beams. Built in Europe with a 150-ton capacity, this robust cambering press features a durable S355JR steel structure, a double-acting cylinder with anti-turning system, and a horizontal design for easy handling of heavy-duty materials. Engineered to meet CE standards and backed by a 2-year warranty, this press is customizable to suit your industrial needs.

SKU: PPHC150 Categories: , , Tags: , , , ,

The Profi Press PPHC-150 Hydraulic Horizontal Press is designed for heavy-duty straightening and bending applications. With a robust electro-welded horizontal structure made from S355JR steel, this press ensures exceptional stability and reliability. A pushing main table supported by cylindrical lateral guides delivers perfect alignment during operation.

Key functionalities include a double-acting cylinder with an anti-turning system, limit switches for cylinder stroke regulation, and a two-speed hydraulic unit with automatic high-speed disconnection when counterpressure is detected. Precision tools like a pressure regulator, tons gauge, and hand pump make it versatile for demanding tasks.

Fully CE-compliant and built to last, the PPHC-150 comes with a 2-year warranty and customizable options, including larger openings between tables, extended support tables, or Siemens NC-control. Contact us for more information on how this press can meet your specific requirements.

Technical Specifications

  • Pressure force [tn]: 150
  • Motor power [kW]: 4
  • Working speed [mm/sec]: 2.40
  • Approaching speed [mm/sec]: 7.48
  • Max Speed [mm/sec]: 9.35
  • Pressure max. [bar]: 250
  • Piston stroke [mm]: 380
  • Opening between tables [mm]: 500
  • Pushing main table [mm]: 400 x 400
  • Working height [mm]: 800
  • Total length [mm]: 2350
  • Total width [mm]: 1600
  • Overall height [mm]: 1300
  • Weight [kg]: 3450

Key Features

  • Supporting back pins
  • Pushing main table
  • Cylindrical lateral guides for perfect alignment
  • Adjustable end-stroke switches
  • Selector for 1 or 2 speeds
  • Pressure regulator and manometer
  • Hand pump for precision pressing

Optional Accessories

  • Supporting back table (1800 x 400 mm)
  • Foot pedal, hand remote control, or two-hand operation
  • Basic supply rails with height adjustment (available in different lengths)
  • Siemens NC-control to digitally set and save press parameters
  • Multiple tools for specific tasks—contact us for your requirements!

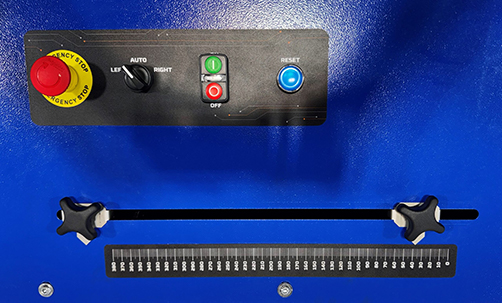

PPHC Series RHTC Cambering Hydraulic Press Controls Centerr for stroke and pressure.

PPHC Series Cambering Hydraulic Press Controls Center for Stroke, Operation Mode, On/Off, and E-Stop.

Additional information

Weight 6700 kg
Dimensions 2520 × 2000 × 1570 cm
