Horizontal Press Brakes • Beam Cambering Presses • Portal Presses • 10 to 300 Tons • Bespoke Models Available

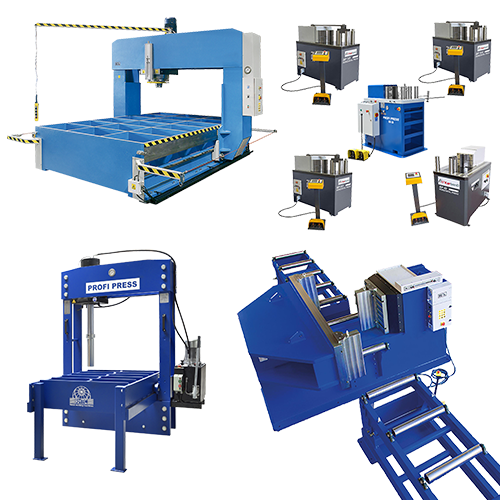

Bending Straightening presses from the workshop press company UK Include portal presses roll frame presses cambering presses and horizontal press brakes
Side view of RHTC Cambering Press side dispaly showing main control box and foot pedal control for manual and automatic modes
Portal presses also known as rule frame presses come in either a format where the gantry is manually or mechanically moved
Portal presses with manual movable portal » PPTL-160 D=1500
Horizontal Brake Press and Bending Straightening Press 28 tons from The Workshop Press Company UK
Horizontal Press Brakes • Beam Cambering Presses • Portal Presses • 10 to 300 Tons • Bespoke Models Available - Image 6

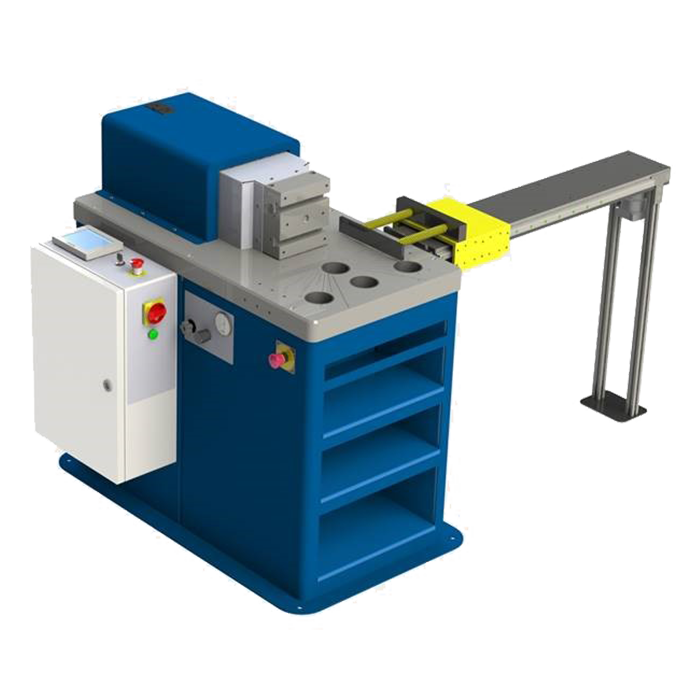

HB 28 Horizontal Press Brake with automated side gauge can store 99 programs with the standard Siemens HMI Controller.

Horizontal Press Brakes • Beam Cambering Presses • Portal Presses • 10 to 300 Tons • Bespoke Models Available

Please contact for prices

Comprehensive range of press machines including motorised portal presses, manual portal presses, and horizontal press brakes. High precision and durability for various industrial applications.

SKU: TWPCO-Bending-Cambering-Straightening Categories: , Tags: , ,

Our comprehensive selection of press machines is tailored to meet the demands of multiple industrial sectors. The motorised portal presses, available in 150, 220, and 300 ton models, are equipped with powerful motors and precision control systems, making them ideal for heavy-duty tasks. The manual portal presses offer reliable performance with pressure forces up to 1570 kN, suitable for applications where manual control is preferred. Additionally, our horizontal press brakes, with capacities ranging from 10 to 100 tons, provide versatility and accuracy for metal bending and forming operations. Each machine is built to ensure long-term productivity and efficiency, making them essential for automotive, manufacturing, aerospace, and metalworking industries. OK

Horizontal Press Brakes:

  • HB-28 NC:
    • Maximum pressure: 28 tons
    • Maximum pressure: 200 bar
  • HPB-10, HPB-20 NC, HPB-30, HPB-40, HPB-50, HPB-80, HPB-100:

    • Maximum pressure: 10 to 100 tons
    • Maximum pressure: 200 to 250 bar

All Horizontal Bending Straightening Press Brakes are available with a standard NC controller or a Touchscreen Controller

Horizontal Press Brake Category

Horizontal Press Brakes and Cambering machines from The Workshop Press Co UK come in a variety of capacities as well as bespoke models.

Click HERE

Manual Gantry Portal Presses

  • PPTL-100:
    • Pressure force: 981 kN
    • Pressure max: 258 bar
    • Table dimensions: 800 mm x 600 mm
    • Piston stroke: 350 mm
    • Gantry travel: 700 mm
  • PPTL-100-Wide:
    • Pressure force: 981 kN
    • Pressure max: 258 bar
    • Table dimensions: 1000 mm x 800 mm
    • Piston stroke: 350 mm
    • Gantry travel: 700 mm
  • PPTL-160:
    • Pressure force: 1570 kN
    • Pressure max: 255 bar
    • Table dimensions: 1000 mm x 700 mm
    • Piston stroke: 400 mm
    • Gantry travel: 900 mm
  • PPTL-160-Wide:
    • Pressure force: 1570 kN
    • Pressure max: 255 bar
    • Table dimensions: 1200 mm x 900 mm

Manual Roll Frame Press Category


Portal presses with manual movable portal » PPTL-160 D=1500
Click HERE

Motorised Gantry Roll Frame Presses

    • 150 Ton Model:
      • Force: 150 tons
      • Motor: 4 kW
      • Approach speed: 9.3 mm/sec
      • Table dimensions: 1200 mm x 900 mm
      • Piston stroke: 400 mm
      • Gantry travel: 800 mm
    • 220 Ton Model:
      • Force: 220 tons
      • Motor: 5.5 kW
      • Approach speed: 9.0 mm/sec
      • Table dimensions: 1500 mm x 1000 mm
      • Piston stroke: 450 mm
      • Gantry travel: 1000 mm
    • 300 Ton Model:
      • Force: 300 tons
      • Motor: 7.5 kW
      • Approach speed: 9.9 mm/sec
      • Table dimensions: 1800 mm x 1200 mm
      • Piston stroke: 500 mm
      • Gantry travel: 1200 mm

Motorised Gantry Roll Frame Presses Category


Portal presses also known as rule frame presses come in either a format where the gantry is manually or mechanically moved
Click HERE

Cambering Presses

  • PPHV-150:
    • Force: 150 tons
    • Motor Power: 4 kW
    • Throat Depth: 300 mm
    • Working Speed: 2 mm/sec
  • PPHV-220:
    • Force: 220 tons
    • Motor Power: 5.5 kW
    • Throat Depth: 330 mm
    • Working Speed: 2.2 mm/sec
  • PPHV-300:
    • Force: 300 tons
    • Motor Power: 7.5 kW
    • Throat Depth: 405 mm
    • Working Speed: 2 mm/sec

Cambering Presses Category


Cambering and Straightening Press from The Workshop Press Co UK

Click HERE

Industries Using these Machines and Their Uses:

  • Automotive: Component forming, assembly, and body panel manufacturing
  • Manufacturing: High-efficiency pressing and metal bending operations
  • Aerospace: Fabrication of critical parts and assemblies
  • Metalworking: Heavy-duty pressing, forming, and bending tasks
  • Construction: Production of structural parts and support beams
  • Shipbuilding: Creation of hull components and maritime structures
  • Railway: Production of structural and functional components for railcars and locomotives
  • Defense: Fabrication of parts for military vehicles and equipment
  • Energy: Manufacturing components for wind turbines, pipelines, and other energy infrastructure

Additional information

Weight 13300 kg
Dimensions 3200 × 2500 × 1840 cm
