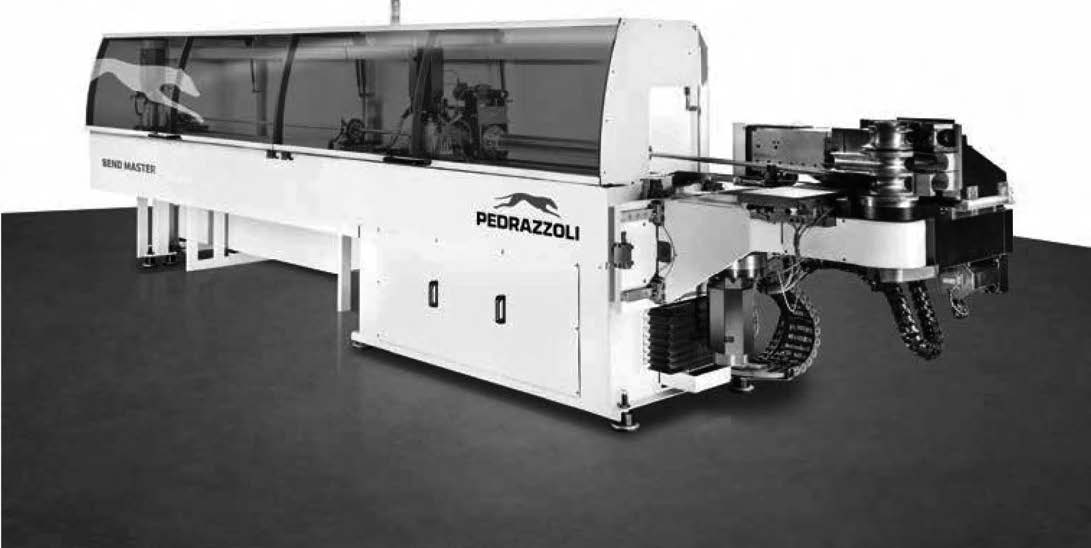

BEND MASTER 114/127 – Heavy-Duty CNC Tube Bender with 10+1 Axes and 127mm Capacity
Please contact for prices
Powerful 127 mm CNC tube bender with 10+1 electric axes, multi-radius control, and IMS/FANUC automation for high-performance bending.

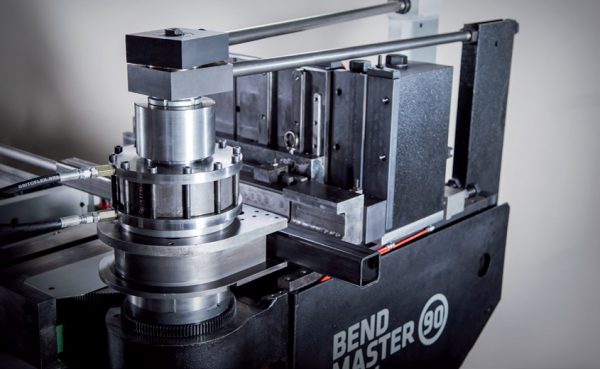

The BEND MASTER 114/127 dx/sx delivers exceptional repeatability and performance for large-diameter tube forming, integrating FANUC drives with IMS.4 software for intelligent control. Its compact bending head ensures minimal interference, while the system’s high-speed mandrel and tube rotation functions enable complex geometries with efficiency. Features include IGES file import, elastic springback compensation, teleservice webcam support, and automation-ready design for loading/unloading. With thrust modulation for tight-radius work and up to four stacked tools, this unit is a powerhouse for demanding production floors.
Specifications
- Bending Capacity [mm]: 127 x 2.2 (Steel, R=400 N/mm²)
- Max Radius [mm]: 450
- Stack Tooling Levels: 3 + 1
- Push-Bending [mm]: 114.3 x 2 with R=10xØ
- Bending Speed [°/s]: 72
- Mandrel Speed [mm/s]: 1200
- Tube Rotation Speed [°/s]: 360
- Booster System: Yes
- Machine Dimensions [mm]: 7580 x 1710 x 1900 (H)
- Machine Weight [kg]: 4700
Features
- Fully electric operation with 10+1 axis control
- Multi-radius and variable-radius bending
- High-capacity 127 mm bending for thick-wall tubes
- IMS.4 control with real-time diagnostics and G-code
- Automation-ready with remote teleservice options
Options
- 11th Axis for Bend Die Return
- Integrated Punching System
- Guillotine Cutting Unit
- IGES File Import Module
- Teleservice Webcam Kit
