Bespoke Pillar Drills from ERLO • Floor Standing • Bench Top • Multi-Drive • Drilling • Tapping

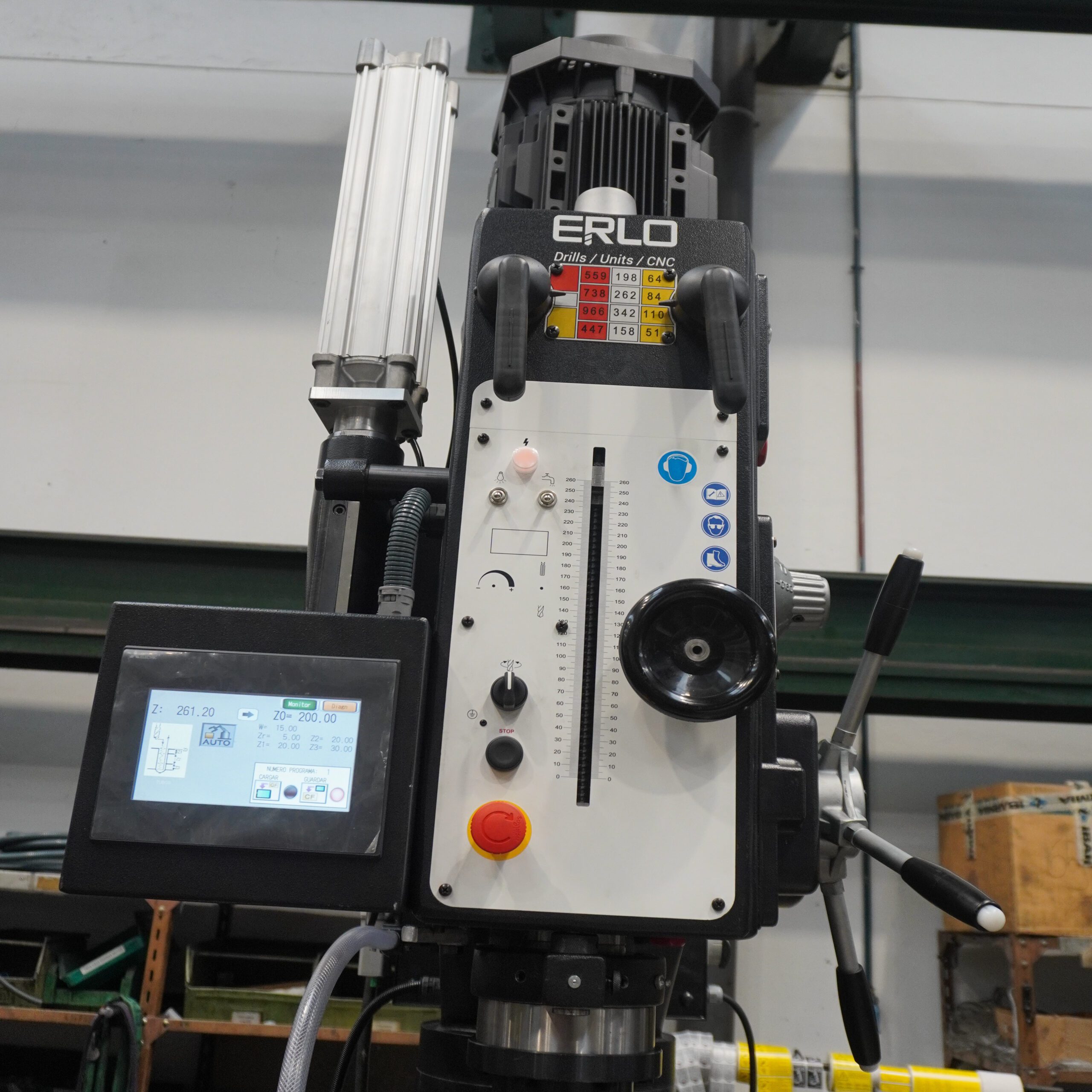

Erlo TSA series pillar drill with advanced HMI-controlled Z-axis for precision drilling.

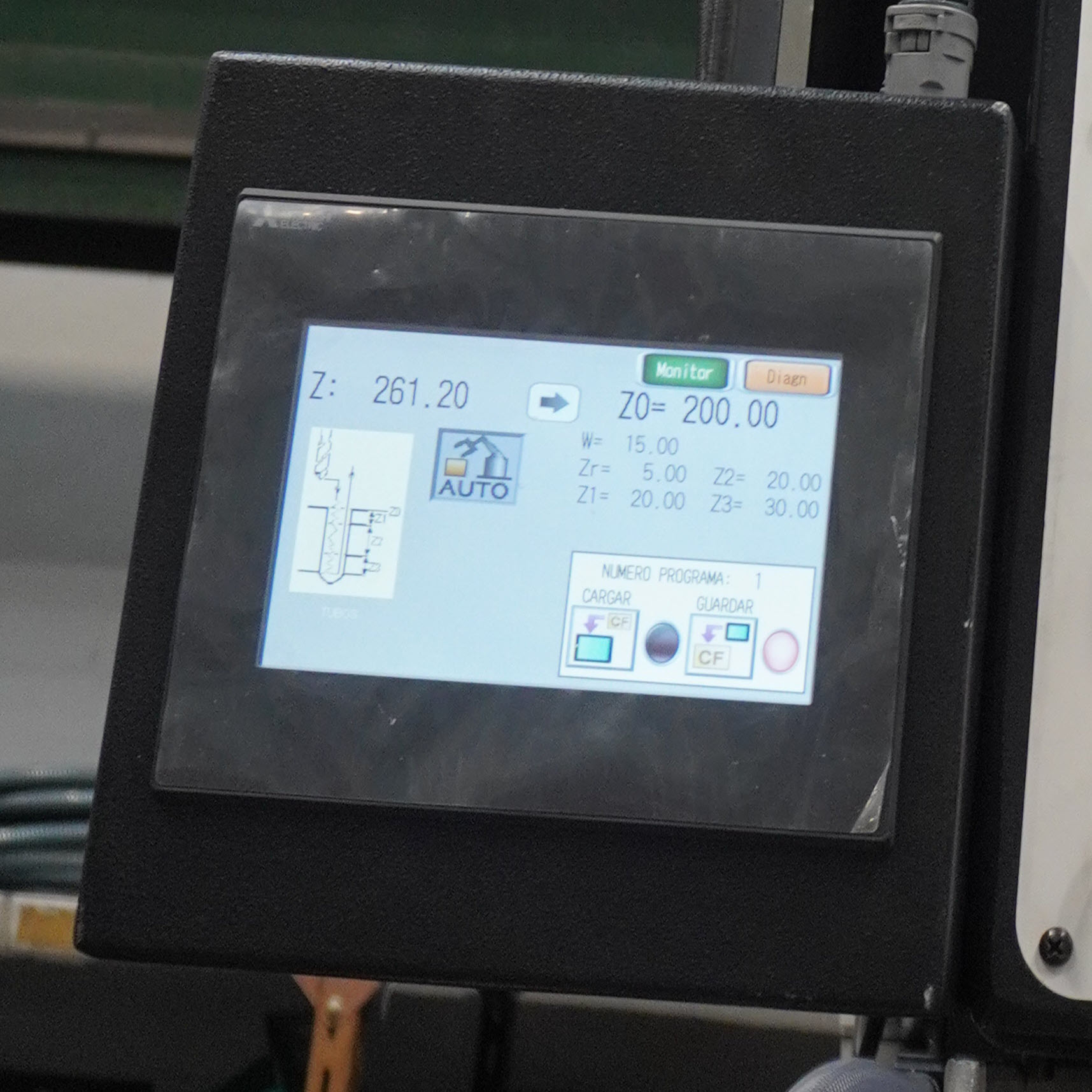

Close-up view of the user-friendly HMI panel on the Erlo TSA series pillar drill

Bespoke Pillar Drills from ERLO • Floor Standing • Bench Top • Multi-Drive • Drilling • Tapping

Please contact for prices

Elevate your manufacturing capabilities with the Erlo TSA Series Pillar Drill. Featuring an HMI-controlled Z-axis, this drill delivers precision drilling with ease of use, making it perfect for intricate engineering projects. Experience unmatched accuracy and efficiency.

SKU: ERLO-BESPOKE Category: Tags: , , , , ,

Our Bespoke Pillar Drill Presses are designed to meet the unique demands of various industrial applications. With customizable features such as advanced HMI controls, precision-engineered components, and tailored drilling capacities, these machines provide exceptional versatility. Whether you require specific feed mechanisms, variable speed options, or enhanced safety systems, our bespoke pillar drills are built to exceed your production needs. Each machine is crafted for reliability, ensuring long-term performance and reduced downtime, making them the ideal solution for workshops and manufacturing facilities requiring precise and adaptable drilling solutions.

TSA Series – Column Pillar Drills – Gear Driven

Specification TSA.25 TSA.30
Drilling capacity (mm): 25 30
Tapping capacity (mm): M22 M25
Transmission: Gear Gear
Speed Range (w/o variator) (rpm): 65 to 3060 65 to 3060
Speed Range (with variator) (rpm): 45 to 3100 45 to 3100
Feed: Automatic Automatic
Motor (w/o variator) (hp): 1.1 / 1.6 1.5 / 1.9
Motor (w/ variator) (hp): 2 2
Spindle cone: MT3 MT3
Spindle stroke (mm): 120 120
Distance spindle-column (mm): 250 250
Distance spindle-table (Min/Max mm): 170 / 660 170 / 660
Distance spindle-base (mm): 1216 1216
Column diameter (Ø mm): 100 100
Table (mm): 270 x 300 270 x 300
Base w/o coolant (mm): 600 x 380 600 x 380
Base w/ coolant (mm): 665 x 400 665 x 400
CE Certified: Yes Yes
Weight Net/Gross (kg): 260 / 320 260 / 320
Packaging (mm): 2200 x 600 x 900 2200 x 600 x 900

Technical Features

  • Advanced HMI interface for precise Z-axis control
  • Robust construction for durability and stability
  • High-performance drilling capacity for various materials
  • Adjustable speed settings to suit different drilling requirements
  • Integrated safety features for operator protection
  • Easy setup and operation for enhanced productivity
  • Precision-engineered components for long-lasting reliability
  • Compact design for efficient use of workspace
  • Energy-efficient operation to reduce operational costs
  • Versatile drilling options for a wide range of applications

Product Uses

  • Precision drilling in metalworking projects
  • Woodworking and carpentry applications
  • Manufacturing custom parts and components
  • Aerospace component fabrication
  • Automotive parts production
  • Electrical and electronics assembly drilling
  • Creating intricate designs in crafts and jewelry
  • Prototyping for engineering and design projects
  • Maintenance and repair operations
  • Educational purposes in technical and vocational training

Additional information

Weight 205 kg
Dimensions 405 × 505 × 1730 cm
