Broaching press 15 TON Motorised
Please contact for prices
High-precision 15 ton broaching press with 600 mm stroke, joystick control, pressure regulation, and optional V-block and tray systems.

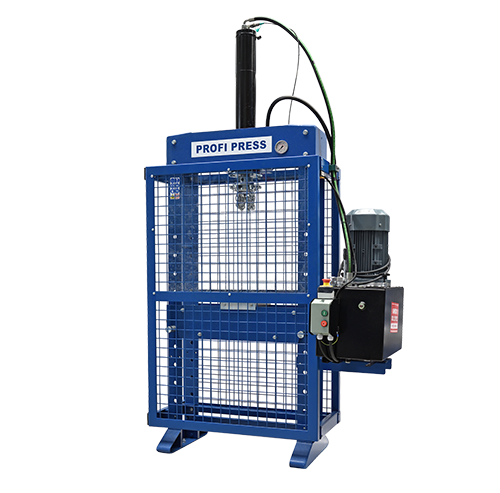

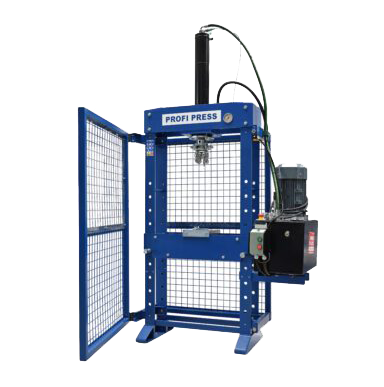

The Profi Press 15 Ton Broaching Press (BPP2000) is a European-manufactured hydraulic machine designed for precise linear broaching operations. Constructed from high-quality steel, it features a 600 mm piston stroke, 5.5 kW motor, and a fully adjustable working table. Operators benefit from intuitive joystick control of the vertical movement and integrated valves for speed and pressure adjustment. The robust 147 kN pressure force makes it suitable for a wide range of machining applications in metalworking and fabrication. Optional accessories such as V-block sets and collection trays provide enhanced usability.
Technical Specifications
- Pressure Force [kN]: 147
- Max Pressure [bar]: 232
- Piston Stroke [mm]: 600
- Oil Capacity [dm³]: 35
- Oil Delivery [ltr/min]: 11.8
- Working Speed [mm/sec]: 0–30
- Approaching Speed [mm/sec]: 0–30
- Return Speed [mm/sec]: 0–40
- Motor Power [kW]: 5.5
- Voltage [V]: 400/3
- Frequency [Hz]: 50/60
- RPM: 1500
- Protection Rating [IP]: 54
- Weight [kg]: 305
Key Features
- 15 ton hydraulic broaching capacity for precision machining
- Joystick-operated piston movement for intuitive control
- Pressure and speed regulation for customizable performance
- Integrated pressure manometer for accurate feedback
- In-height adjustable working table for operator flexibility
- Robust European steel frame construction ensures durability
- Compact footprint ideal for workshops with limited space
- Quiet and efficient 5.5 kW motor system
- Designed specifically for linear broaching applications
- Optional trays and V-blocks enhance press utility
Hydraulic Cylinder Dimensions
- Inside Diameter [mm]: 90
- Piston Rod Diameter [mm]: 50
- Piston Head Diameter [mm]: 80
Optional Accessories
- V-block set for extra support

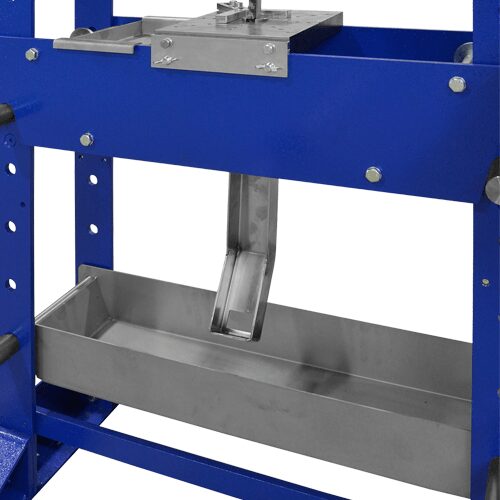

- Collection tray between the feet of the press
- Collection tray for the broach-tool
- Material tray for the working table
Machine Dimensions [mm]
- A: 2300
- B: 820
- C: 494
- D: 650
- E: 200
- F: 1140
- G: 100
- H: 112
- I: 900
- J: 700
- K: 110
Broaching Table Dimensions (Included)
