PPC-100 C-Frame Press • 100 Ton Profi Press

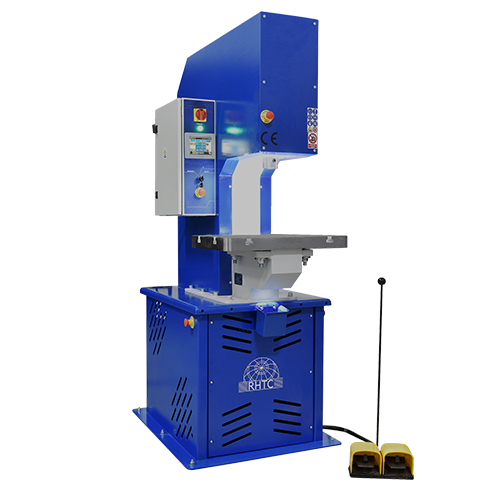

PPC-80 Hydraulic C-Frame Press with 80 Tons of pressure and T-Slots in the Table
PPC-100 C-Frame Press • 100 Ton Profi Press - Image 2
ppc-28-c-frame- control screen.

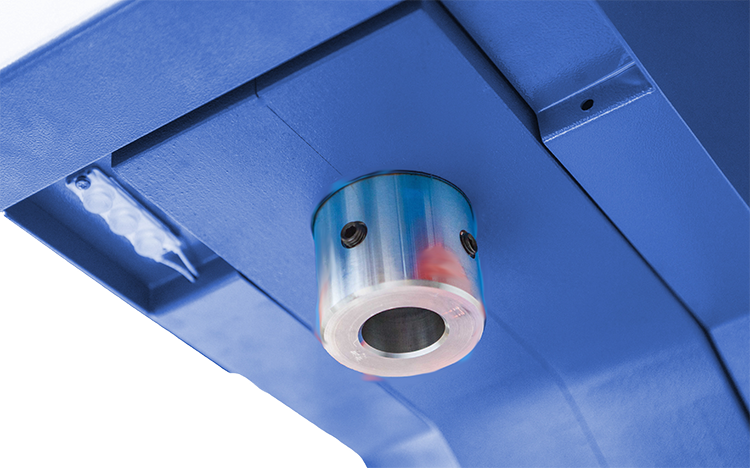

PPC-80 Piston 80 Ton C-frame Press RHTC no background 750 x 468

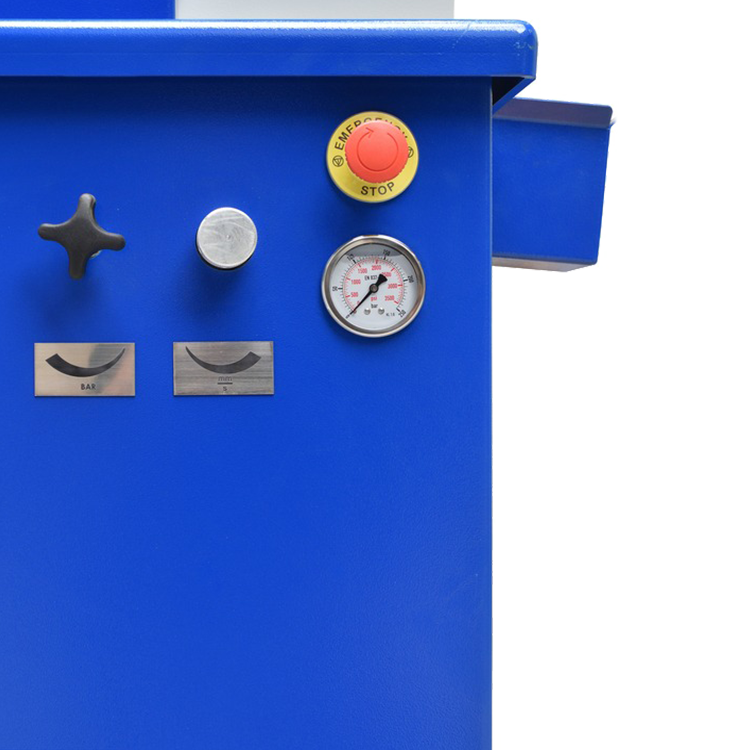

PPC-80 80 Ton C-Frame Press Pressure and Speed Regulation RHTC 750 x 750
RHTC Table C-frame Press PPC-80 500 x 500

PPC-100 C-Frame Press • 100 Ton Profi Press

Please contact for prices

100-ton capacity Profi Press PPC-100 C-Frame hydraulic press with NC stroke control and dual operational modes, ideal for heavy-duty metalworking tasks like punching, forming, and stamping.

SKU: PPC10013 Categories: , , , Tags: , , , , , , , , , ,

The Profi Press PPC-100 C-Frame Press is a heavy-duty hydraulic press offering 100 tons of pressing force, designed for demanding metalworking tasks such as forming, stamping, and punching. Manufactured in Europe and built to CE standards, this machine provides NC-controlled piston stroke for precise operations and allows adjustable pressure and speed, making it versatile for a wide range of industrial applications.

Technical Specifications

  • Pressing Force: 100 tons
  • Max. Pressure: 250 bar
  • Max. Working Speed: 7.6 mm/s
  • Piston Stroke: 260 mm
  • Vertical Daylight Max.: 450 mm
  • Vertical Daylight Min.: 180 mm
  • Min. Working Speed: 1 mm/sec
  • Return Speed: 12.5 mm/sec
  • Piston Diameter: 100 mm
  • Piston Tool Hole: 40 mm
  • Throat Depth: 320 mm
  • Table Size: 780 x 480 mm
  • Total Width: 1500 mm
  • Total Height: 2200 mm
  • Weight (Net): 2900 kg

Features

  • 100-ton hydraulic pressing capacity for heavy-duty applications
  • NC-Controlled piston stroke for sub-millimeter precision
  • Manual and Semi-Automatic modes for versatility
  • Adjustable hydraulic pressure and speed for operational control
  • Emergency stop buttons for added safety
  • Foot pedal operation for ease of use
  • High-strength European construction for long-term durability
  • CE Certified, meeting European safety and quality standards
  • 2-year warranty for reliability

Industries Using and Their Uses

  • Automotive: Forming and stamping of heavy-gauge components
  • Aerospace: Precision forming of large metal parts for high-stress applications
  • Heavy Machinery: Punching and forming thick steel and alloy components
  • Oil and Gas: Metal forming for pipeline components and infrastructure
  • Power Generation: Punching and forming metal parts for turbines and equipment

Additional information

Weight 2100 kg
Dimensions 1900 cm
