DHP-Series Pallet Horizontal Decoiler • De-Palletiser

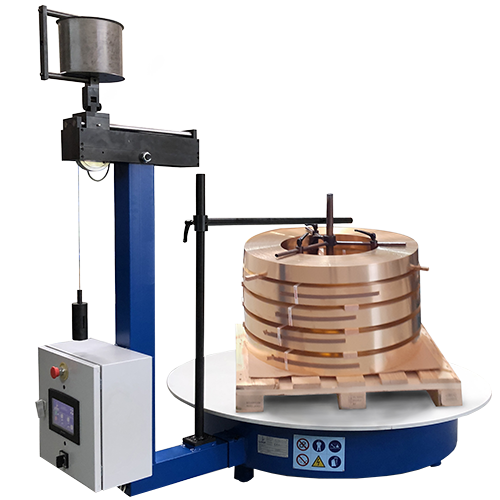

Image of a D & DHP-Series Horizontal Metal Coil Feeder from Lara

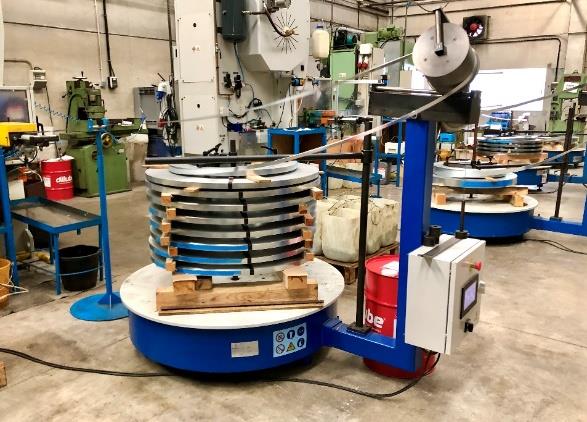

LARA Coiling Equipment DHP Series in a metal production system with multiple coils in a horizontal position.

DHP-Series Pallet Horizontal Decoiler • De-Palletiser

Please contact for prices

The DHP-Series Pallet Horizontal Decoiler and De-Palletiser is an advanced high-capacity decoiler designed for optimal efficiency in industrial applications. This horizontal decoiler machine, also known as a coil unwinding machine, is perfect for handling light materials with precision. Built with a robust steel structure, the decoiler ensures durability and stability. Featuring an electronic speed variator, this pallet horizontal decoiler offers automatic speed regulation for seamless operation. The DHP-Series, adhering to LARA Coil Feeder Specifications, is equipped with adjustable support points for correct seating, making it a versatile and reliable coil feeder for various industrial needs.

SKU: DHP-Series Categories: Coil Feeding Systems, Decoilers, Hydraulic Presses for Sale - Industrial-Grade Power & Precision Tags: Coil Feeder, Coil Handling, coil unwinding, hydraulic press, Press Line Coil Feeder

Description

Enhance your metalworking operations with the DHP-Series Pallet Horizontal Decoiler. Designed for optimal efficiency, this series offers a compact solution for unwinding, straightening, and feeding coils in a single unit. Built with a durable steel structure and featuring a stable, transportable base, the DHP-Series ensures seamless operation with minimal interruptions. Speed control is managed through an electronic speed variator with automatic regulation tailored to your material. Optional accessories include special guides, protections, and increased turning speeds.

Available in three models: DHP-1200/2000, DHP-1400/3000, and DHP-1600/5000, catering to diverse industrial needs. Ideal for automotive, construction, and heavy engineering sectors.

DHP- 1200/2000

Ideal for operations demanding a maximum load capacity of 2000 kg, this model accommodates a width up to 150 mm and a thickness of 1.5 mm, ensuring seamless handling of varied coil sizes. Its compact design, featuring a base diameter of 1250 mm, allows for efficient use of workspace.

DHP- 1400/3000

Scaling up in capacity, this variant supports loads up to 3000 kg with the same precision in handling material widths and thicknesses as its counterpart. Its increased base diameter of 1450 mm offers enhanced stability for heavier coils.

DHP- 1600/5000

At the pinnacle of this series, the DHP- 1600/5000 model is engineered for the most demanding tasks, boasting a load capacity of 5000 kg and a maximum material width of 230 mm. It combines robustness with finesse, making it ideal for high-volume, high-precision environments.

Graphic display of the DHP series coil feeder for pallet loads from Lara Spain

Dimension / Model	DHP-1200/2000	DHP-1400/3000	DHP-1600/5000
Weight	425	470	840
A (mm)	2120	2250	2555
B (mm)	355 to 375	355 to 375	355 to 375
C (mm)	1630	1630	1630
D (mm)	1250	1450	1650
E (mm)	100 to 120	100 to 120	100 to 120

MODEL	DHP- 1200/2000	DHP- 1400/3000	DHP- 1600/5000
Maximum Load (kg):	2000	3000	5000
Maximum Width (mm):	150	150	230
Maximum thickness (mm):	1.5	1.5	1.5
Maximum height of the load (mm):	700	700	700
Base diameter (mm):	1250	1450	1650
Speed (r.p.m.):	2 to 10	2 to 10	2 to 10

In the realm of modern manufacturing and metalworking, the DHP Pallet Decoiler series stands out as a paradigm of engineering excellence, merging robust performance with unparalleled precision. The series includes three models: DHP- 1200/2000, DHP- 1400/3000, and DHP- 1600/5000, each designed to cater to diverse industrial needs.

All models in the DHP series operate within a speed range of 2 to 10 r.p.m., offering manufacturing engineers the flexibility to optimize production speed according to material specifications and project requirements. With a maximum height of the load maintained at 700 mm across the series, these decoilers are designed for ergonomic operation and ease of access.

The DHP Pallet Decoiler series, with its advanced engineering, is a testament to high-quality manufacturing. Whether it’s for automotive, construction, or heavy engineering sectors, these machines promise to enhance efficiency, reduce downtime, and provide a seamless coil feeding experience. Their robust build quality and advanced design parameters make them a valuable asset in any manufacturing setup, particularly for professionals seeking reliable, long-term metalworking solutions.

Coil Feeding System Inquiry Guidelines for Customers

To ensure we provide the most effective and efficient coil feeding system for your needs, we kindly ask you to provide detailed information about your requirements. The guide below is designed to help you identify and communicate the specific details of your project. This information will enable us to tailor our solutions precisely to your needs, ensuring optimal performance and satisfaction.

General Requirements:

Space Dimensions: Specify the area available (length x width x height).
Working Direction: Indicate preferred operational direction.
Feeding Height: State the required height for material feeding.
Voltage Requirements: Mention electrical specifications needed.

Material Details:

Type of Material: Describe the material (steel, aluminum, etc.).
Thickness Range: Provide the range of material thickness.
Width Range: Indicate the width range of the material.
Yield Strength: Specify the material’s yield strength.

Equipment Specifications:

Decoiler Details: Include maximum coil weight and inner/outer diameter.
Cart Options: Mention if a cart is required for coil handling.

Straightener and Feeder Specifications:

Straightener Thickness Range: State the thickness range the straightener can handle.
Feeder Speed: Indicate the required feeding speed.
Advance Distance: Mention the advance distance per stroke.

Production Line Configuration:

Configuration Type: Choose from options like compact, short, or long line.
Part Description/Drawing: Provide a detailed description or a drawing of the production part.
