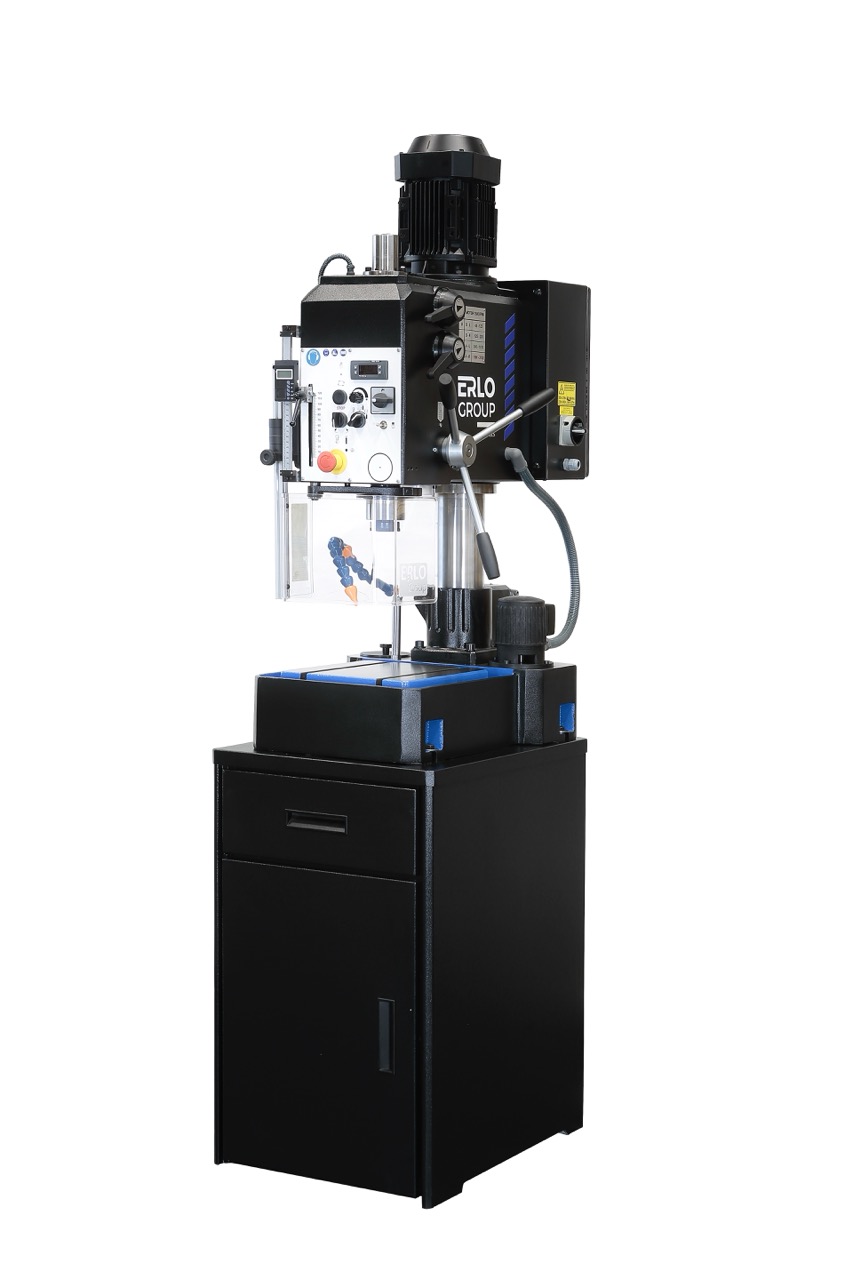

ERLO SE.30 – 30mm Gear-Driven Drill Press with Manual Feed and Cast Iron Frame

ERLO SE.30 – 30mm Gear-Driven Drill Press with Manual Feed and Cast Iron Frame

Manual 30mm drill press with gear transmission, 120 mm spindle stroke, and industrial-grade cast iron frame.

Engineered for consistent and heavy-duty use, the SE.30 from ERLO combines traditional reliability with modern features. The hardened steel gear transmission offers smooth torque at 8 speed settings up to 3060 rpm. With manual feed, a 120 mm spindle stroke, and 1.1–1.4 kW motor power, it meets the needs of professionals across machine shops, maintenance departments, and training facilities. Cast iron components ensure vibration-free performance, while safety features like the emergency stop, guarded belt system, and separate low-voltage control panel enhance operator confidence.

Specifications

  • Max Drilling Capacity in Steel [mm]: 30
  • Max Tapping Capacity [mm]: M25
  • Morse Cone: CM3
  • Spindle Stroke [mm]: 120
  • Motor Power [kW]: 1.1 – 1.4
  • Transmission: Gear Driven
  • Speed Range [rpm]: 65–3060
  • Number of Speeds: 8
  • Worktable Dimensions [mm]: 270 x 270
  • Column Diameter [mm]: 100

Features

  • Manual feed with fixed table and rotating/sliding headstock
  • Gear-driven hardened steel transmission
  • Cast iron frame for strength and vibration damping
  • Drill guard with safety micro switch
  • Low-voltage electrical system in separate cabinet

Options

  • Sensitive Feed Wheel (V)
  • Digital Depth Reader (LBC)
  • Electronic Speed Variator + TAK Display
  • Manual Tapping Inversion (IR/RS)
  • Intermediate Fixed or Rotating Table
