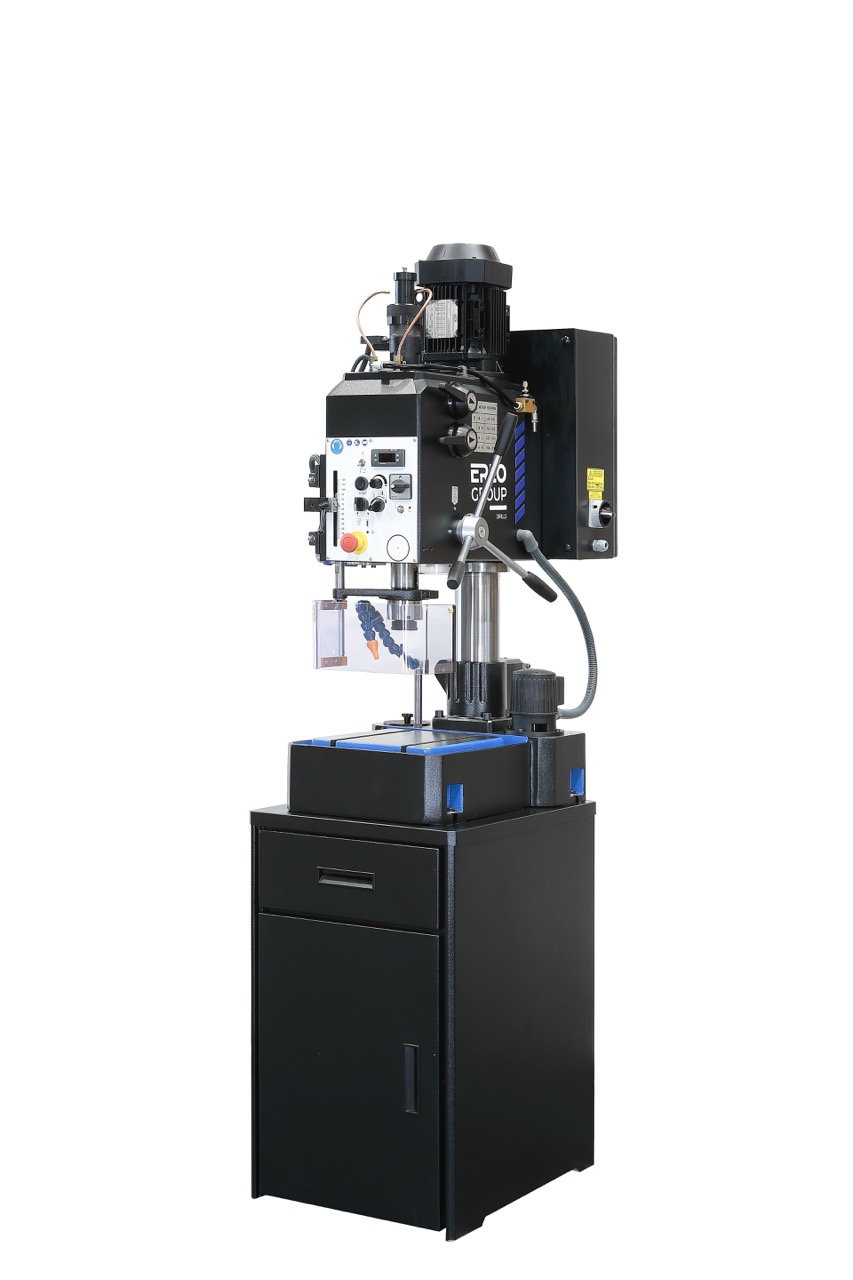

Erlo SHE.25 Gear Transmission Drill Press – 25mm Capacity
Please contact for prices
25 mm drill press with gear transmission, electronic speed variator, and cast-iron construction for industrial-grade precision.
The Erlo SHE.25 Drill Press offers advanced features to support efficient and precise drilling in professional workshops. It is equipped with an electronic speed variator for precise RPM control and hardened steel gears for long-lasting durability.

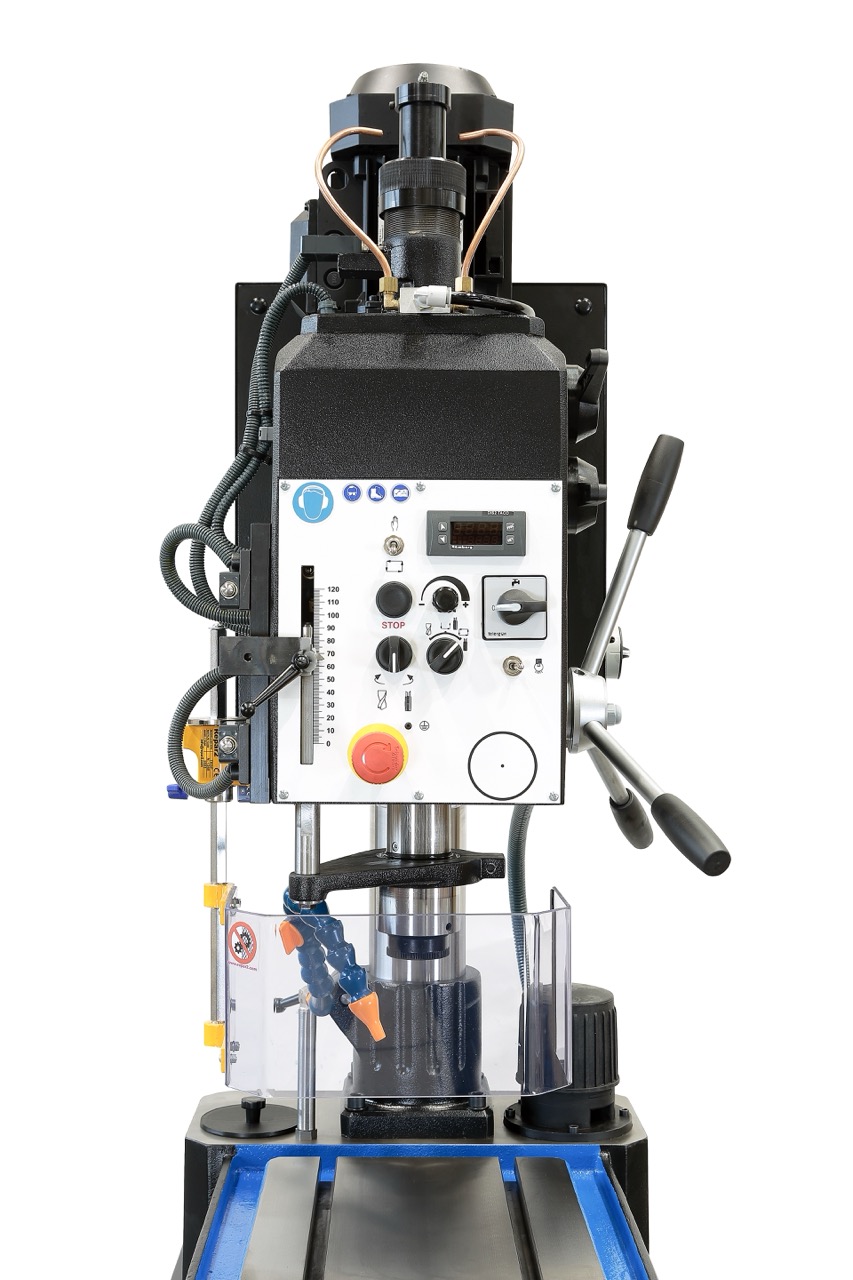

Designed with a heavy-duty cast-iron head, base, and column, this machine ensures maximum stability. Safety features such as an emergency stop button, drill guard with micro switch, and low-voltage electrical components enhance operator protection. Optional accessories like rotating intermediate tables, coolant systems, and digital depth readers further expand its capabilities.
Specifications
- Drilling Capacity in Steel [Ø mm]: 25
- Tapping Capacity in Steel [M]: 22
- Morse Cone: CM3
- Spindle Stroke [mm]: 120
- Main Motor Power [kW]: 0.8 / 1.2
- Number of Speeds: 8
- Speed Range [rpm]: 45–3100 (with electronic speed variator)
- Feed: Manual (SHE) / Automatic (SHEA)
- Worktable Dimensions [mm]: 270 x 270
- Column Diameter [mm]: 100
- Net Weight [kg]: 240
Features
- Electronic speed variator for precise RPM adjustment
- Cast-iron head, base, and column for stability
- Hardened and ground steel gears
- Emergency stop button and drill guard with micro switch
- Adjustable depth stop and tool ejector
Options
- Digital depth reader (Code: 10022 LBC)
- Electronic speed variator and viewer (Code: 10023 VE + TAK)
- Rotating intermediate table (Code: 10088 MIG)
- Cooling equipment in base (Code: 91118 ERB)
- Chuck, tool holder, reduction sleeves, vices, and cross table
