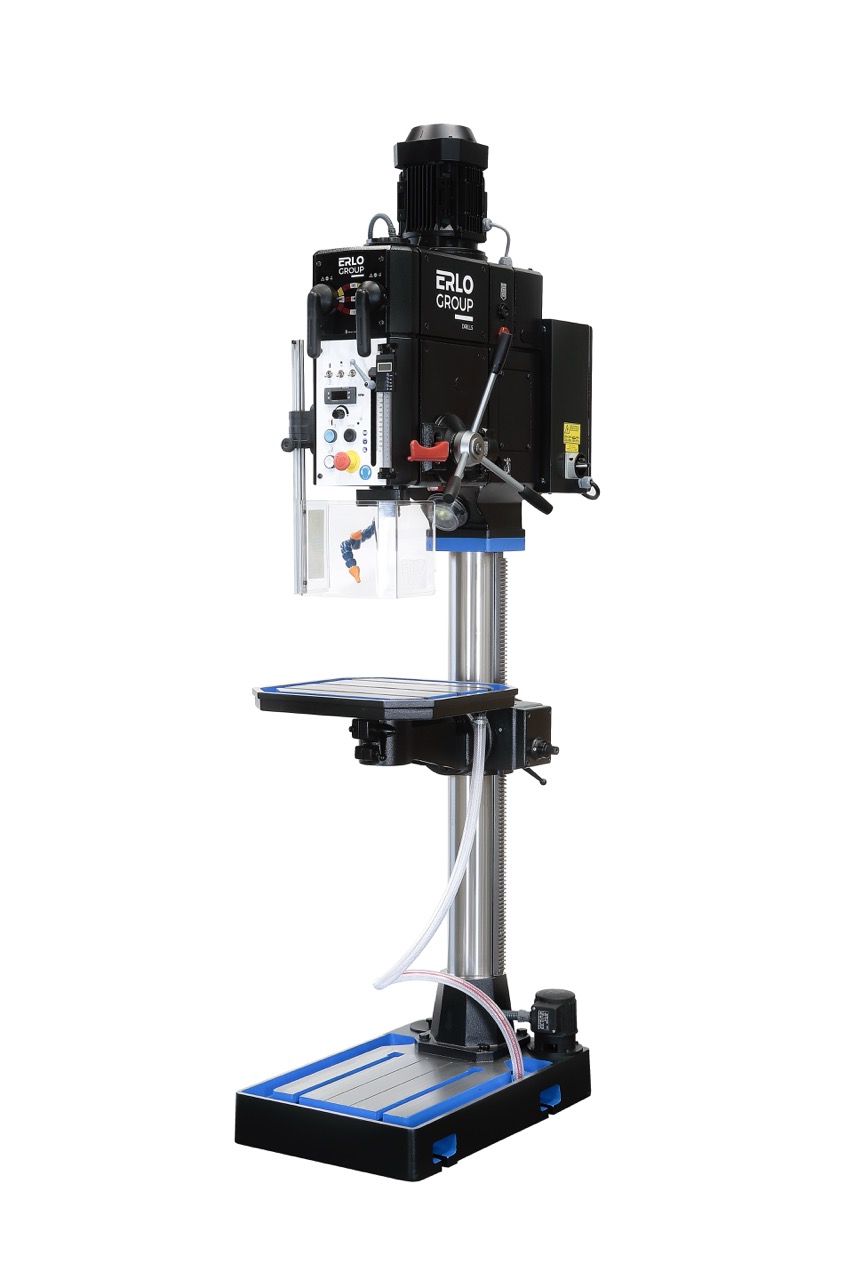

ERLO SX.35 – 35mm Manual Feed Drill Press with Hardened Steel Gear Transmission

ERLO SX.35 – 35mm Manual Feed Drill Press with Hardened Steel Gear Transmission

35mm manual-feed gear-driven drill press with 9-speed transmission and cast iron frame for industrial applications.

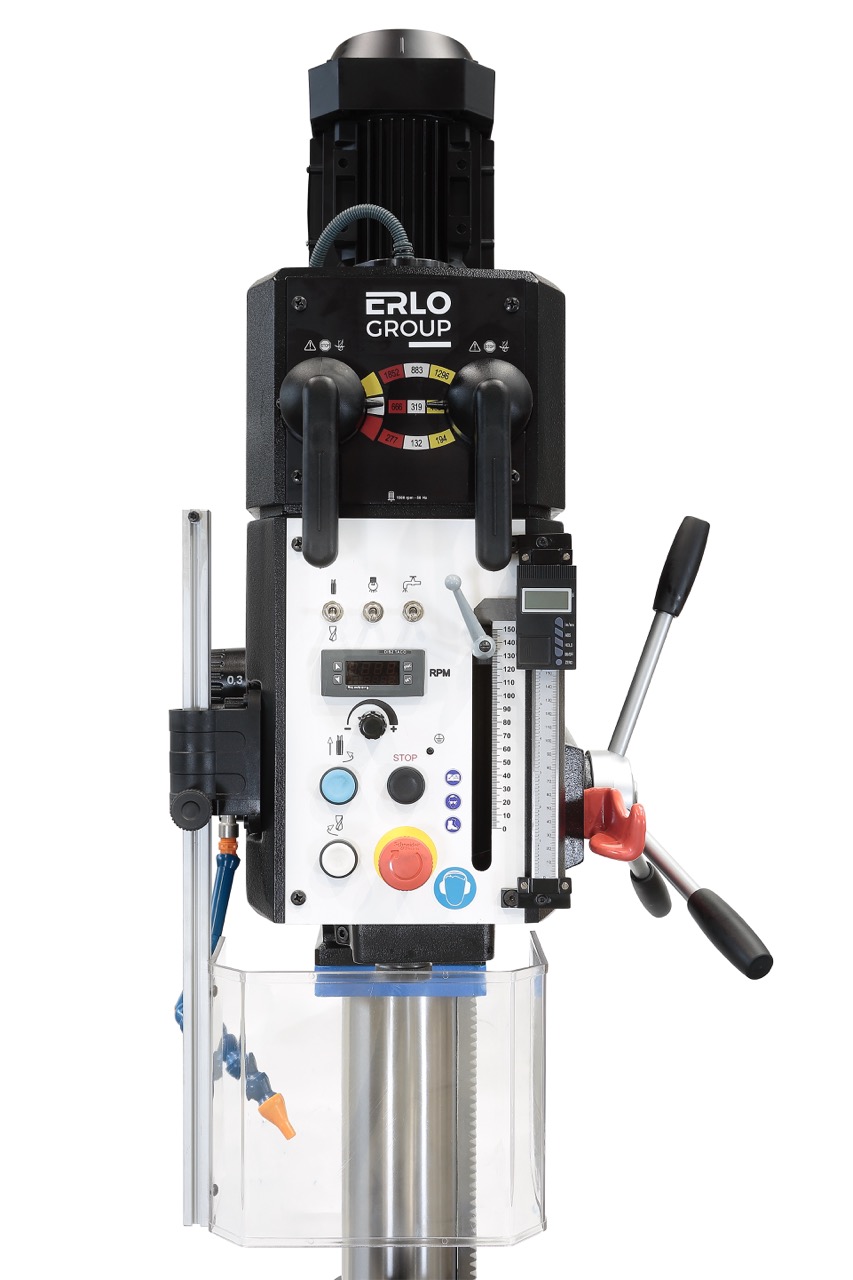

Designed for professional workshops and production use, the SX.35 combines a robust 1.5 kW motor with a hardened steel gear transmission offering 9 speeds (132–1852 rpm). It features a 150 mm spindle stroke and fixed T-slotted worktable. Its rigid cast iron construction minimizes vibration, while CE-certified safety systems—including a micro-switch drill guard, emergency stop, and low-voltage electrical cabinet—ensure safe and consistent operation. The gears are automatically greased, and standard equipment includes lighting, tool ejector, and rotation direction selector.

Specifications

  • Max Drilling Capacity in Steel [mm]: 35
  • Max Tapping Capacity in Steel [mm]: M24
  • Morse Cone: CM4
  • Spindle Stroke [mm]: 150
  • Motor Power [kW]: 1.5
  • Transmission: Hardened Steel Gear Drive
  • Number of Speeds: 9
  • Speed Range [rpm]: 132–1852
  • Worktable Dimensions [mm]: 400 x 420
  • Column Diameter [mm]: 125

Features

  • Manual feed with adjustable depth stop
  • Greased hardened and ground steel gear transmission
  • Fixed T-slot table for secure clamping
  • Cast iron base, column, and headstock
  • Drill guard with micro-switch and emergency stop

Options

  • Digital Depth Reader (LBC)
  • Electronic Speed Variator and Display (VE + TAK)
  • Manual Tapping Inversion System (IR/RS)
  • Tilting Rotary Table (MGI)
  • Cooling System in Base (ERB)

Additional information

Weight 205 kg
Dimensions 405 × 505 × 1730 cm
