ERLO TSA.40 Gear Driven Column Pillar Drill
Sale!
TSA TSE Series Pillar Drills for Industry From ERLO with gear drive and auto feed.

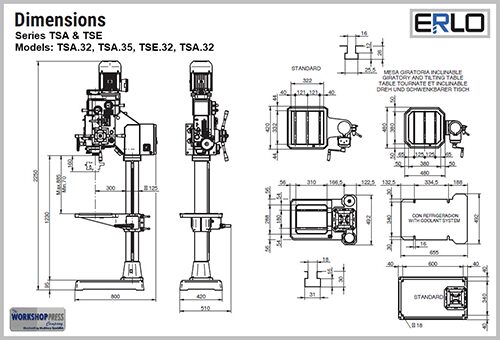

A TSA-32 and TSA-35 pillar drill with dimensions.

ERLO TSA.40 Gear Driven Column Pillar Drill

Please contact for prices

Discover the ERLO TS Series

Discover the ERLO TS Series, brought to you by The Workshop Press Company UK, your premier source for high-quality industrial machinery. Based in the heart of the Midlands, Kenilworth, we proudly present this top-tier range of industrial pillar drills, encompassing the TSA, TSE, TSAV, and TSEV models – each designed for precision and efficiency in metalworking.

Key Features

  • Power and Precision: With main motor powers ranging from 2 to 3 HP and a consistent speed of 1500 r.p.m., the TS Series exemplifies strength and accuracy. These pillar drills are engineered to handle the rigors of S275 steel, ensuring smooth and stable performance.
  • Versatile Drilling Capacity: Whether it’s the fixed speed TSA models or the variable speed TSE models, this series adapts to various drilling requirements with ease, making it ideal for diverse industrial applications.
  • Advanced Auto-Feed Mechanism: Achieve precise and consistent drilling with the auto-feed feature, enhancing operational efficiency and accuracy.
  • Robust Construction: Designed for durability, the TS Series features a spindle stroke of 180 mm, robust table dimensions of 480×480 mm, and a significant machine height of 2300 mm, accommodating a wide range of industrial tasks.

Why Choose the ERLO TS Series?

  • Tailored for the UK Market: As leaders in supplying industrial presses and metalworking machinery, The Workshop Press Company UK ensures the ERLO TS Series is perfectly suited for UK industries, especially those working extensively with S275 steel.
  • Versatility for Professionals: Whether it’s a drill press for intricate tasks or handling heavy-duty operations, the ERLO TS Series stands out as a versatile solution for professionals across various engineering fields.
  • Local Support and Service: Located in Kenilworth, our dedicated sales and service teams provide comprehensive support, embodying our commitment to quality and customer satisfaction.

Enhance your industrial capabilities with the ERLO TS Series – a testament to engineering excellence in the world of industrial pillar drills. Visit The Workshop Press Company UK for unparalleled quality and service in metalworking solutions.



SKU: TSA.40 Categories: , Tags: , , , , ,

The ERLO TSA.40 Gear Driven Column Pillar Drill offers maximum drilling power with its 40mm drilling capacity and M32 tapping capacity. This industrial-grade machine comes with automatic feed and automatic tapping for streamlined workflows. With a 1.5 kW motor and 400V, 3-phase power, the TSA.40 delivers exceptional performance in demanding metalworking environments. Its gear-driven mechanism ensures durability and precision, making it a top choice for large-scale production.

Technical Specifications

  • Drilling capacity (mild steel):
    40 mm
  • Tapping capacity (mild steel):
    M32
  • Transmission:
    Gear
  • Speed number and range (without variator):
    (8) 93 – 152 – 204 – 298 – 443 – 695 – 970 – 1.420 rpm.
  • VARIABLE:
    A) 45-145 B) 65-207 C) 100-316 D) 144-460 E) 215-686
  • Speed number and range (with variator):
    F) 307-985 G) 470-1500 H) 690-2200 rpm
  • Feed:
    Automatic
  • Number and range of feeds:
    (3) 0.10 – 0.18 – 0.24
  • Clutch:
    Mechanical (Automatic)
  • Main motor power (without variator) motor 1500 rpm:
    2 HP
  • Main motor power (with variator) motor 1500 rpm:
    3 HP
  • Spindle cone:
    CM4
  • Spindle stroke:
    180 mm
  • Distance spindle-column:
    350 mm
  • Distance spindle-table:
    Min 95 / Max 865
  • Distance spindle-base:
    1220 mm
  • Column diameter:
    150 mm
  • Dimensions of the table with 3 T-Slots:
    480 x 480 mm
  • Dimensions of the base with T-Slots:
    480 x 755 mm
  • CE Certified:
    Yes
  • Weight: net / gross kg:
    435 / 565 Kg
  • Packaging dimensions and volume:
    2380 x 602 x 1005 mm / 1.55 m³

Features

  • Automatic feed, mechanical clutch:
    Series TSA
  • Electro-magnetic clutch:
    Series TSE
  • Gear Driven
  • Fixed Headstock
  • Adjustable depth end
  • Lighting equipment
  • Coolant equipment
  • Rotating and tilting table
  • Frontal wheel for fine sensitive feed
  • Tool ejector
  • Motor guard
  • Emergency push button
  • Main switch
  • Turning sense selector
  • Electrical equipment at low voltage
  • Electrical equipment in a separate cabinet
  • Drill Guard with Micro-Switch
  • CE Certified

Optional Equipment

  • Speeds electronic variator:
    (VE – 10021)
  • Speeds digital reader:
    (for models with variator) (TAK – 10023)
  • Depth digital reader:
    (LBC – 10022)
  • Manual tapping system IR/RS:
    (IR/RS – 10042)
  • Manual tapping system IR/RS (for models with variator):
    (IR/RS (VE) – 10043)
  • Automatic tapping system by lead screw:
    (includes one tapping pitch) (RPF – 30070)
  • Column supplement 200 mm:
    (SC – 30110)
  • Rapid approach and return with pneumatic counterweight:
    (for TSE series) (ACNL – 30140)
  • Integral tubes drilling cycle/profiles and intermittances:
    (for TSE series) (CI – 30145)


Precision meets performance in our Thumbnail picture of ERLO Drill and Tap Machine lineup. Discover your perfect metal fabrication partner today.
ERLO Industrial Pillar Drills Spec. Chart
Click HERE

SCANTOOL V-Belt Driven Drill Presses
Professional Pillar Drills Category
Click HERE

FAQ button for all product categories offered by The Workshop Press Company UK
View Pillar Drill Press FAQs
Clicking HERE

Pillar Drills Tailored To Your Workspace

  • Versatile Applications: Our range includes everything from the workshop drill to industrial drills for sale, ensuring we have the perfect fit for your metalworking, woodworking, or any other drilling requirement.
  • Customisation & Accessories: With adjustable and tilt-able worktables, plus a variety of tooling options, our machines are as adaptable as they come. Popular accessories include vices, collets, and chucks, enhancing your machine’s versatility.
  • Safety & Compliance: Safety is our top priority. All models are CE certified, featuring separate emergency stops for worry-free operation.

Why Choose Workshop Press For Your Pillar Drill?

  • Unmatched Quality: Every drill machine we offer is built to the highest standards, ensuring you get a product that not only meets but exceeds expectations.
  • Industry Expertise: Leverage our expertise to find the ideal drill for sale that meets your specific needs, backed by our comprehensive after-sales support.
  • Competitive Pricing: Get the best value for your investment with our competitively priced range, designed to last and backed by a 2-Year Warranty.

Pillar Drill Presses: The Essential Tool for Precision and Power

Whether you’re searching for the best drill to enhance your DIY projects or an industrial pillar drill UK businesses rely on for heavy-duty tasks, Workshop Press is your go-to destination. Discover how our machines bring unparalleled accuracy and efficiency to your work.

Differentiating Between Professional and Industrial Pillar Drills

When differentiating between a professional and an industrial pillar drill press, it’s important to consider their intended use, construction, and capabilities. Industrial pillar drills are specifically designed for heavy-duty applications and continuous use in demanding environments such as metal fabrication shops and manufacturing plants. They feature powerful motors, advanced gear-driven mechanisms, and enhanced durability to handle larger drill bits and tougher materials with precision and reliability. In contrast, professional pillar drills are built for regular but not continuous use, offering robust construction and user-friendly features suitable for workshops, small businesses, and educational institutions. Understanding these distinctions helps in selecting the right drill press for your specific needs.

Ready to Elevate Your Drilling Capabilities?

Browse our selection today and find the pillar drill that’s right for you.

For queries or to discuss your specific needs, don’t hesitate to get in touch.

Call us toll-free at 0800 999 1090. Let’s drill down to precision together with Workshop Press.

Additional information

Weight 205 kg
Dimensions 405 × 505 × 1730 cm
