80 Ton Compact Four Column Press • PPSFC Series • RHTC
80 Ton Compact Four Column Press • PPSFC Series • RHTC
Please contact for prices

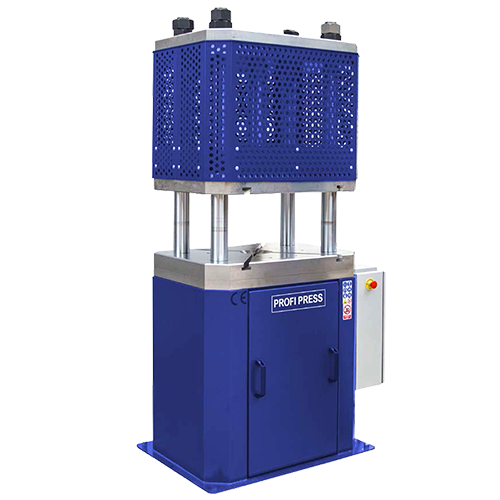

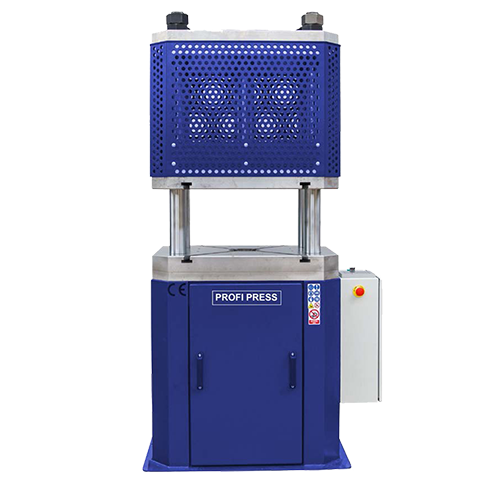

The PPSFC-80 is an 80-ton hydraulic press for cutting, embossing, and stamping. European-made, precise, and versatile.
The PPSFC-80 is a high-quality hydraulic press designed for precise and heavy-duty applications.
Key Benefits:

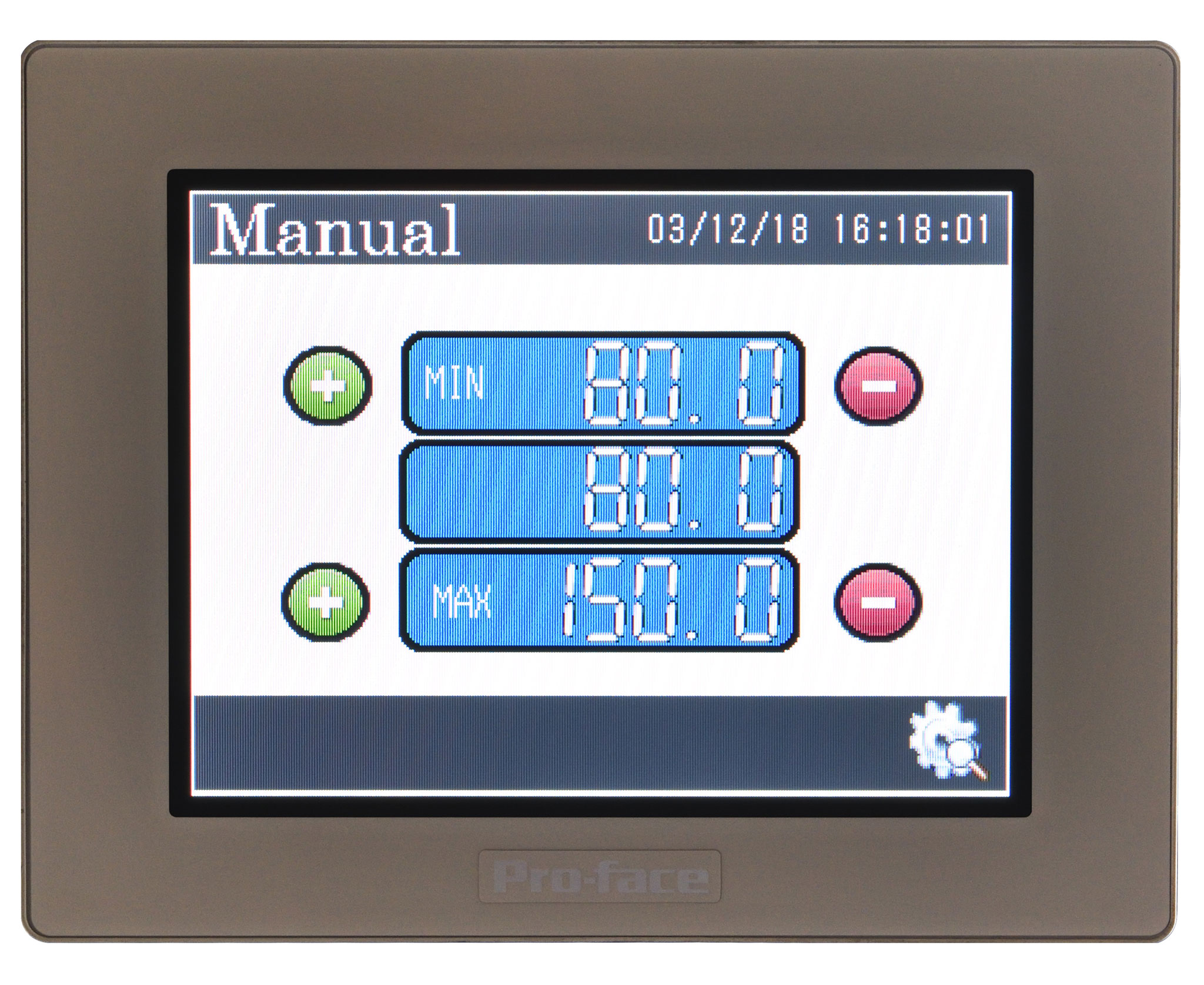

- NC Controller: Regulate the piston stroke with 0.1 mm accuracy.
- Flexibility: Operate in manual or semi-automatic mode for convenience.

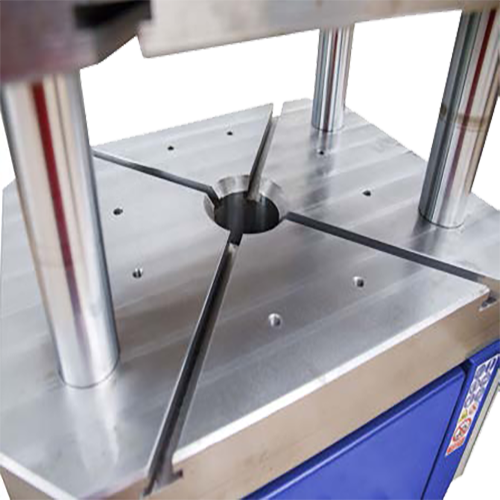

- Durable Construction: The table is equipped with T-grooves and a central hole to accommodate various tooling.
- Adjustable Settings: Fine-tune pressing force and speed with hydraulic adjustment valves.
- European Quality: Built with premium materials, ensuring reliability and long-term performance.
This press can also be customized with larger tables, increased vertical light, higher speeds, or light guards upon request.
Technical Specifications
- Pressure Force: 80 tons
- Motor Power: 7.5 kW
- Min. Working Speed: 2 mm/sec
- Max. Working Speed: 9.8 mm/sec
- Return Speed: 12.8 mm/sec
- Piston Stroke: 350 mm
- Vertical Light: 500 mm
- Table Size: 650 x 350 mm
- Total Width: 1220 mm
- Total Length: 800 mm
- Total Height: 2450 mm
- Weight: 3000 kg
Key Features
- NC control to set the piston stroke
- Selector for manual or semi-automatic operation
- Flow adjustment valve and pressure control valve
- Integrated pressure manometer
- Different tooling can be installed onto the table
Optional Accessories
- A frontal sliding lower table
- Adaptations to robotics
- Hydraulic connections for peripheral systems
- Higher speeds by prefilling valves and auxiliary cylinders
- Hydraulic cushion or ejector
- Cooling equipment for the hydraulic group by an air-oil cooling system
Industries Using the Machine and Their Uses
- Automotive industry: for stamping and cutting sheet metal components
- Aerospace industry: precision embossing and forming of light alloys
- Metal fabrication: general metalworking, cutting, and forming
- Manufacturing: producing parts for heavy machinery
- Tool and die shops: creating customized dies and tooling
Additional information
| Weight | 3000 kg |
|---|
