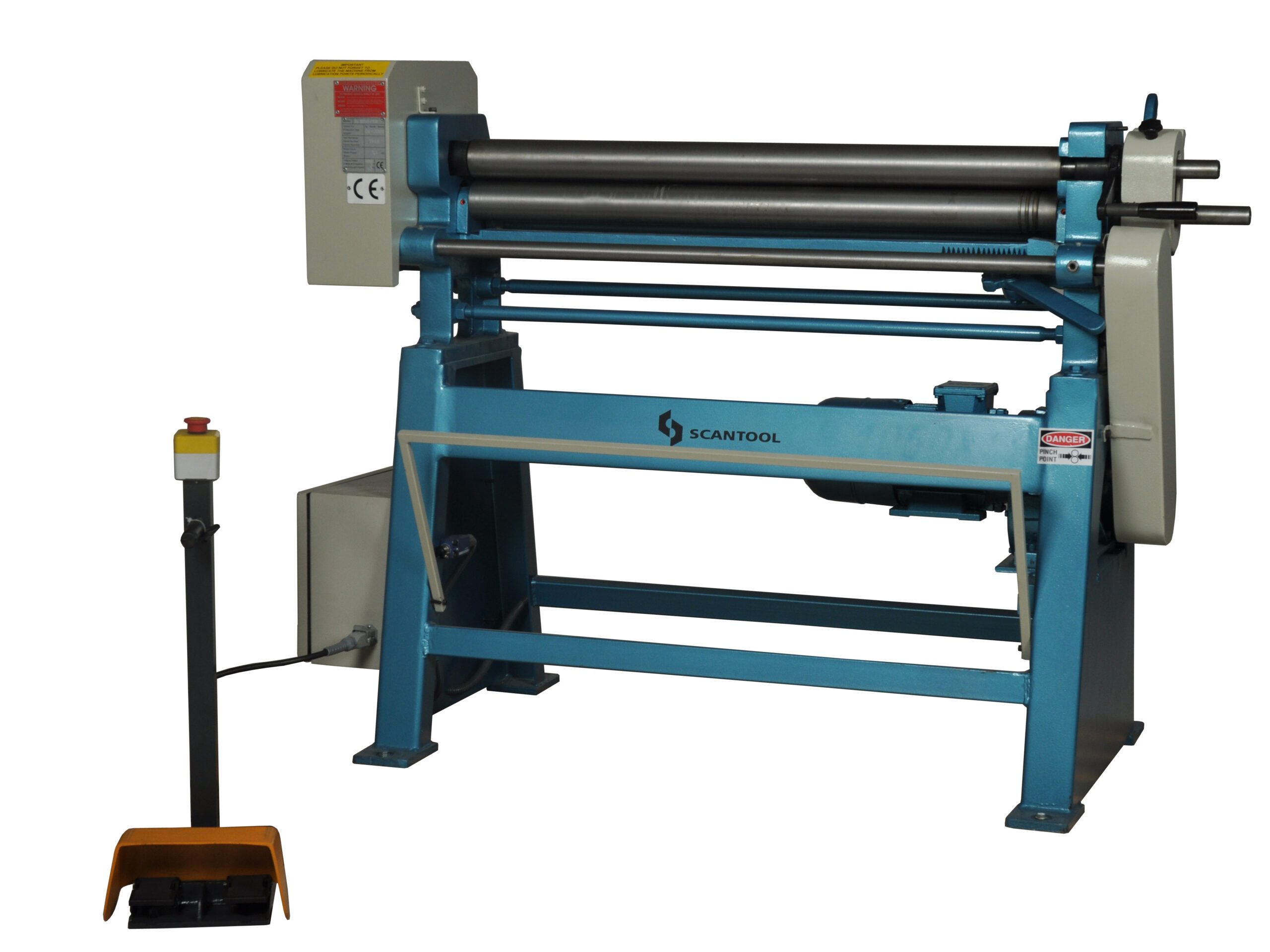

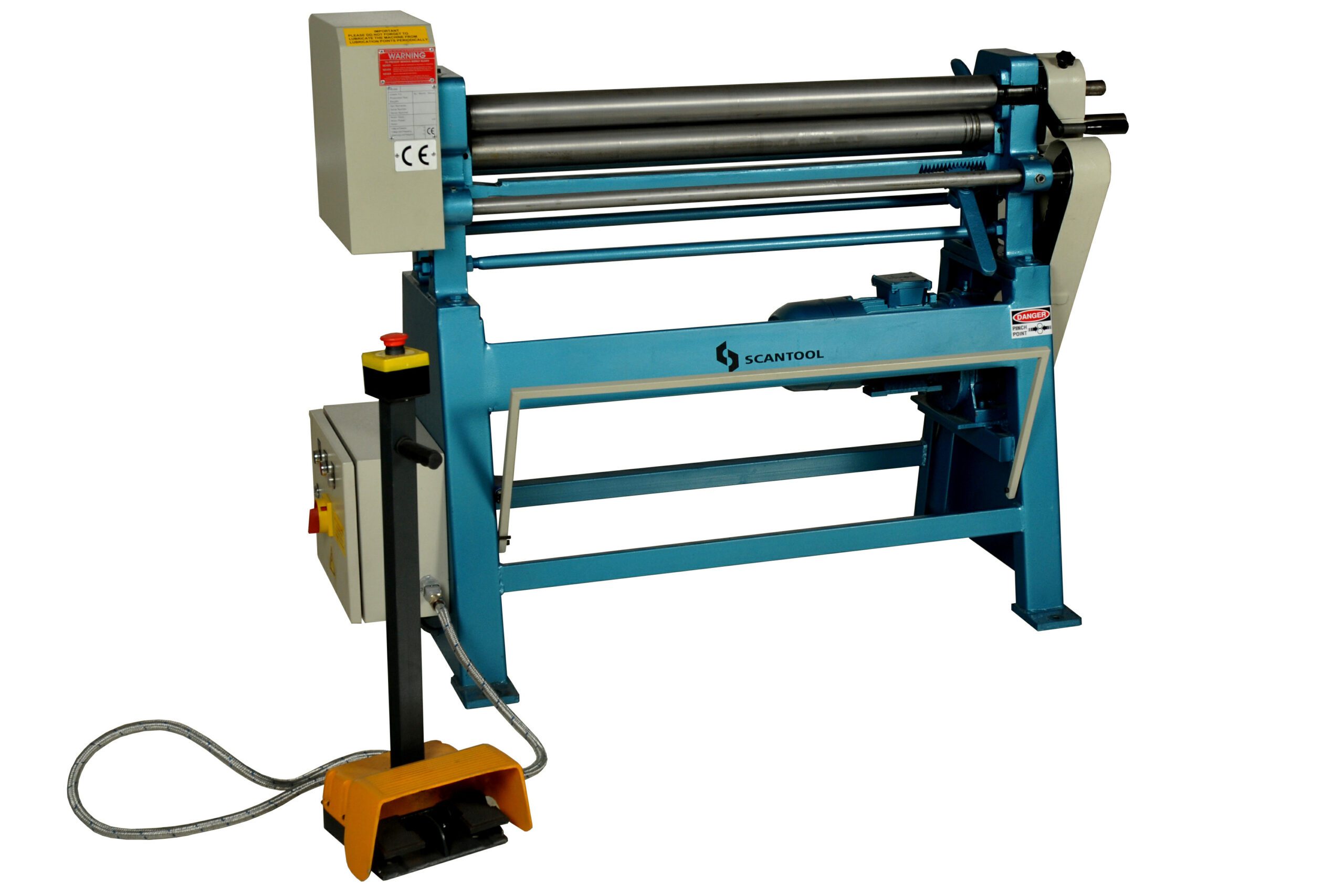

Motorized Bending Roller EBR 2050 x 1.0 • Scantool 500717006

Technical Specifications

• Capacity: 2050 x 1.0 mm
• Sheet Thickness: 1.0 mm
• Working Length: 2050 mm
• Voltage: 3x400V-50/60Hz
• Motor: 2.0 HP (1.5 kW)
• Min. Bending Diameter: 143 mm
• Roller Diameter: 95 mm
• Roller Speed: 7 m/min
• Dimensions (L x W x H):
  2650 x 750 x 1200 mm
• Net Weight: 780 kg

Features

• Cast iron main frames
• Main motor with brake
• Rotatable top roller
• Motor-powered centralized rollers
• Wired grooves
• Mobile control panel
• Built according to EU safety directives
• Rollers of SAE 1050 quality steel with high tensile strength

Industries and Uses

• Ventilation Industry: Ideal for fabricating ventilation components and ducts.
• Aluminum Fabrication: Suitable for bending aluminum sheets up to 1.0 mm thick.
• Sheet Metal Workshops: Effective for various sheet metal bending tasks.
• Automotive Sector: Useful for producing custom metal parts and brackets.
• Construction: Ideal for bending structural metal components and supports.
