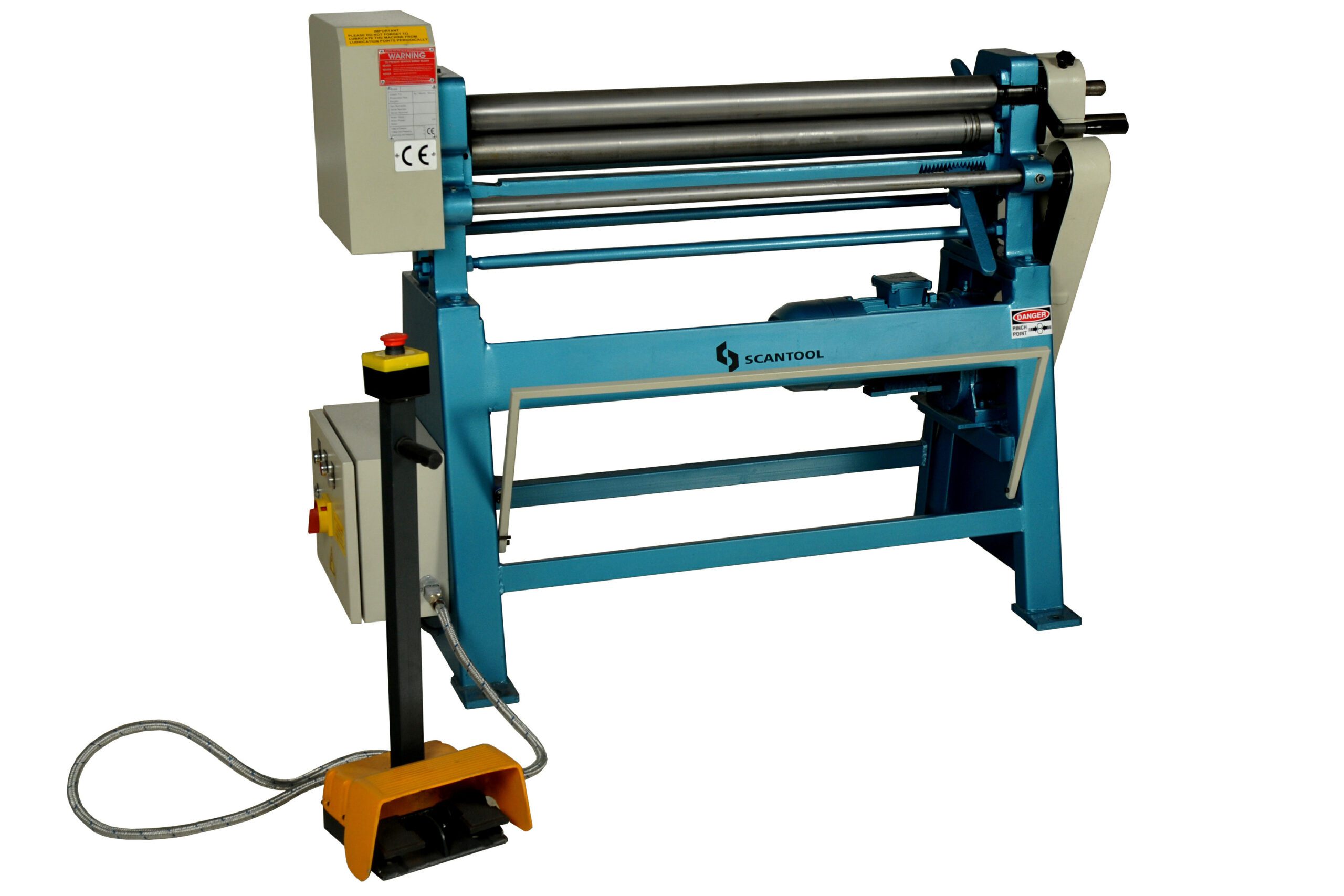

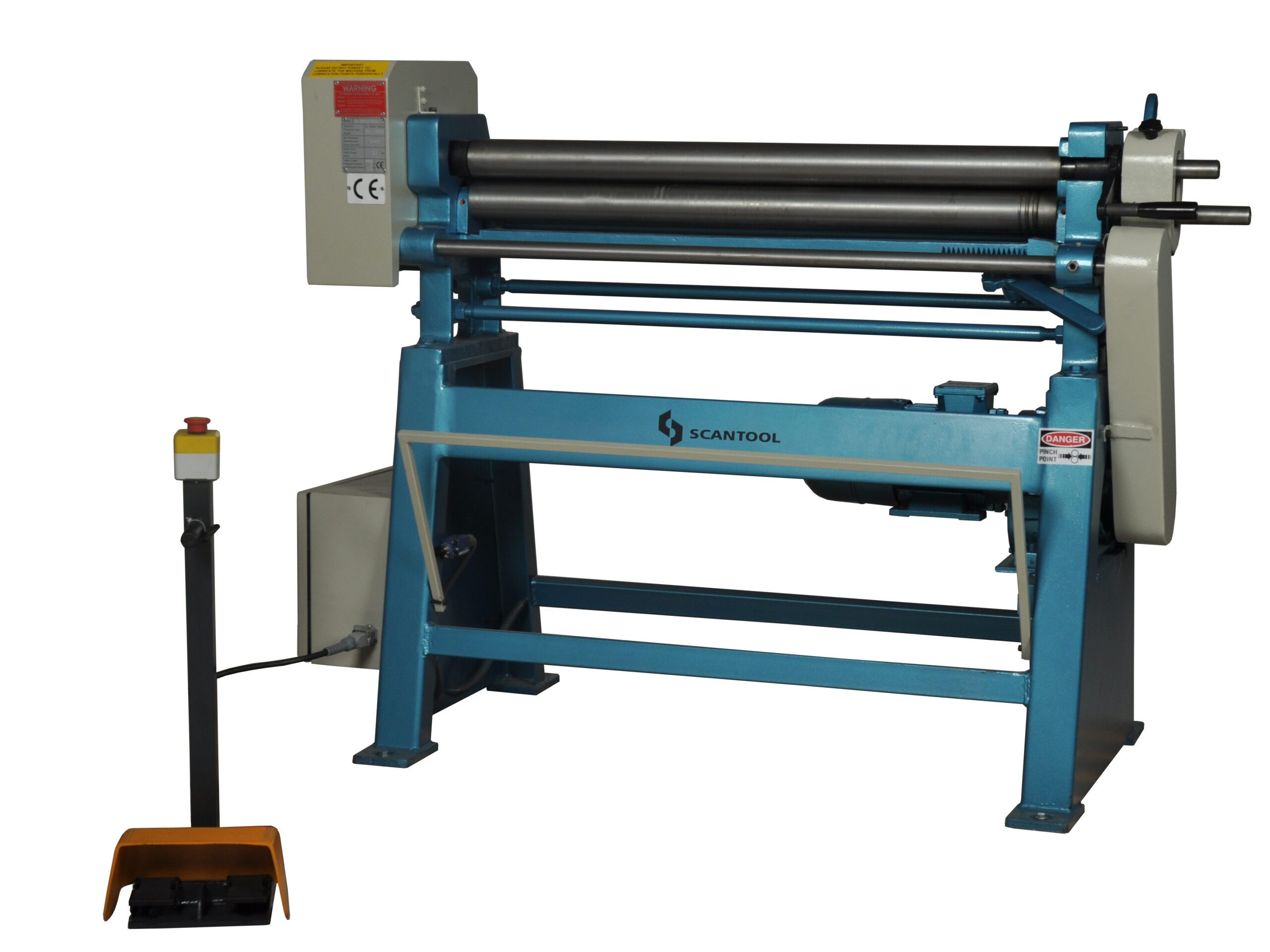

Motorized Bending Roller EBR 1270 x 1.5 • Scantool 500717004

Scantool Motorized Bending Roller EBR 1270-1.5

Motorized Bending Roller EBR 1270 x 1.5 • Scantool 500717004

Please contact for prices

Motorised bending roller EBR 1270 x 1.5, suitable for light to medium jobs, featuring cast iron frames, motor-powered rollers, and precise bending capabilities.

SKU: 500717004 Category: Slip and Plate Rolls Tags: Asymetrical three-roller, Bending Rollers, Motorised bending rollers, Scantool Motorized Bending Roller EBR 1270-1.5

Description
Additional information

Motorised bending roller EBR 1270 x 1.5, suitable for light to medium jobs, featuring cast iron frames, motor-powered rollers, and precise bending capabilities.

Technical Specifications

Capacity: 1270 x 1.5 mm
Sheet Thickness: 1.5 mm
Working Length: 1270 mm
Voltage: 3x400V-50/60Hz
Motor: 2.0 HP (1.5 kW)
Min. Bending Diameter: 113 mm
Roller Diameter: 75 mm
Roller Speed: 6 m/min
Dimensions (L x W x H):
2250 x 750 x 1200 mm
Net Weight: 385 kg

Features

Cast iron main frames
Main motor with brake
Rotatable top roller
Motor-powered centralized rollers
Wired grooves
Mobile control panel
Built according to EU safety directives
Rollers of SAE 1050 quality steel with high tensile strength

Industries and Uses

Ventilation Industry: Ideal for fabricating larger ducts and ventilation components.
Aluminum Fabrication: Suitable for bending aluminum sheets and profiles up to 1.5 mm thick.
Sheet Metal Workshops: Effective for a variety of sheet metal bending tasks.
Automotive Sector: Useful for producing custom metal parts and brackets.
Construction: Ideal for bending structural metal components and supports.
