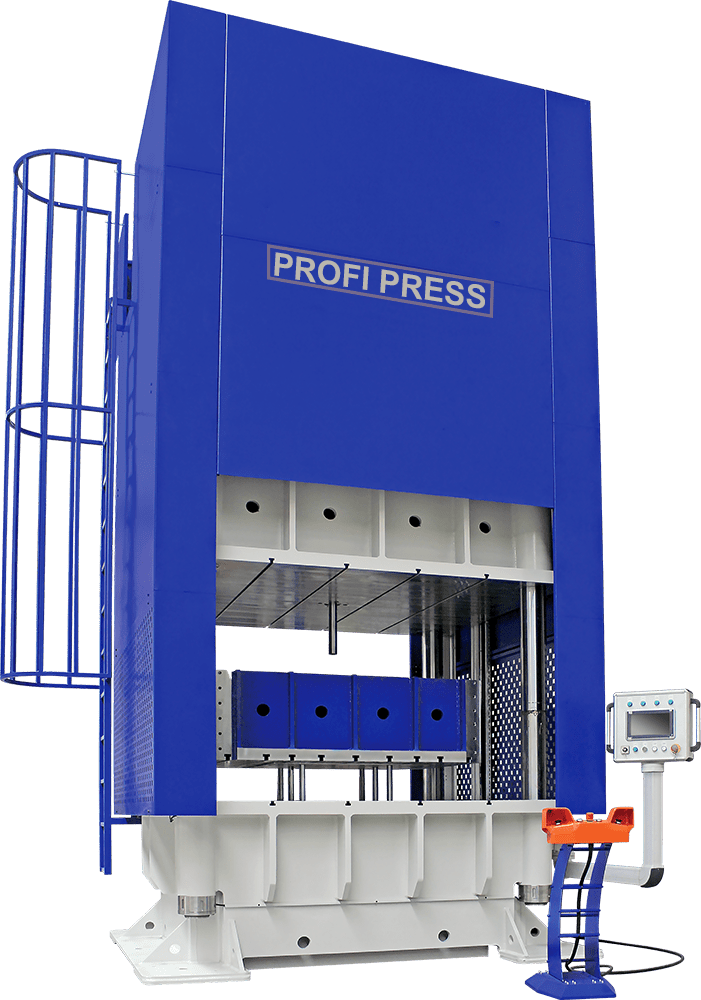

HDDT-500 • 500 Ton • Deep Drawing Press

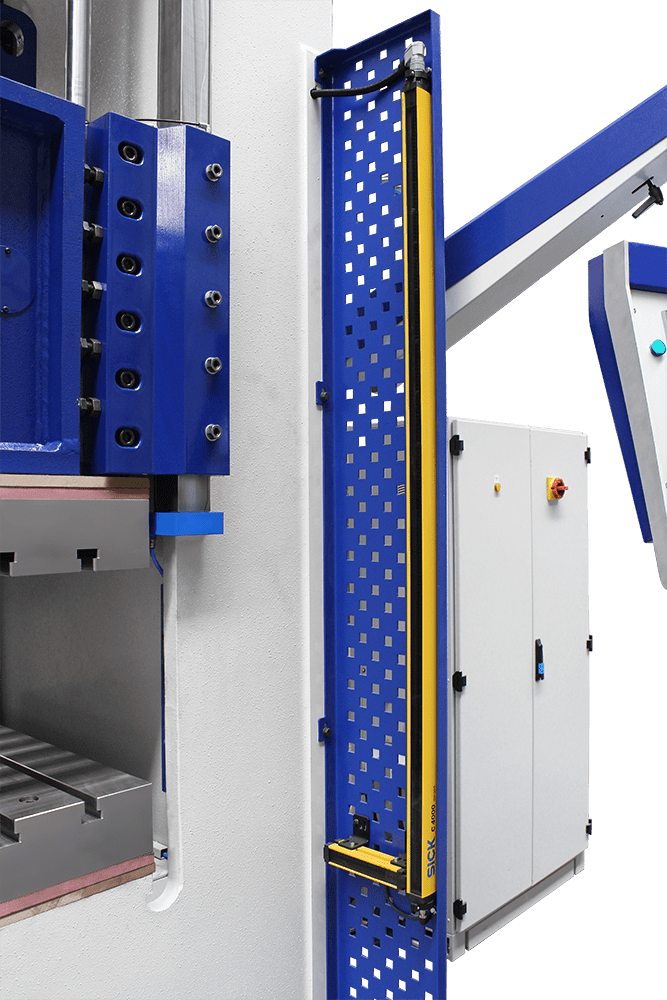

The Standard Technical Features and Specifications vary from press to press, and the chosen press should be appropriate to encompass all your applications. Some standard technical features of the HDDT Series Presses include standard tonnages from 100 to 3000 tons, programmable speeds, and a standard working speed of 10 mm per second. Piston stroke is a consideration with the standard range offering a piston stroke of 1000 mm and Vertical Daylight of 1000 mm. Large table sizes range from 1200 x 1400 mm to 1500 x 1700 mm. The presses are outfitted with a hydraulic cushion with 150 tons and a stroke of 300 mm.   The main Press Cylinders are Chrome Plated, and the Frame is a steel welded frame. The top slide and bottom bolster tables come with standard DIN-650 T-slots. The HDDT Series Deep Draw Presses come standard with        Safety Light Guards at the front of the press and the primary control is an HMI Touch Screen control panel that allows for programming pressure, cylinder stroke & pressure dwell time.

The HDDT Series as a standard offering, are feature-rich but optional accessories and bespoke features are available. Some examples are the adjusted physical size of the press, larger tables, smaller tables, larger piston stroke, hydraulic ejector cylinder in the upper table, variable speeds, and tool loading devices.

CE Certificate

This press comes with a standard 2-Year Warranty and a CE Certificate as standard.

All Profi Presses by RHTC are customisable, integrative, and have custom tools available.
Please contact Workshoppress today with any questions by telephone at +44 (0) 800 999 1090, or by email at info@workshoppress.co.uk.
