Horizontal Press Brake with NC Touchscreen Control with Automated Positioning Table
HPB-40 Ton Horizontal Press Machine

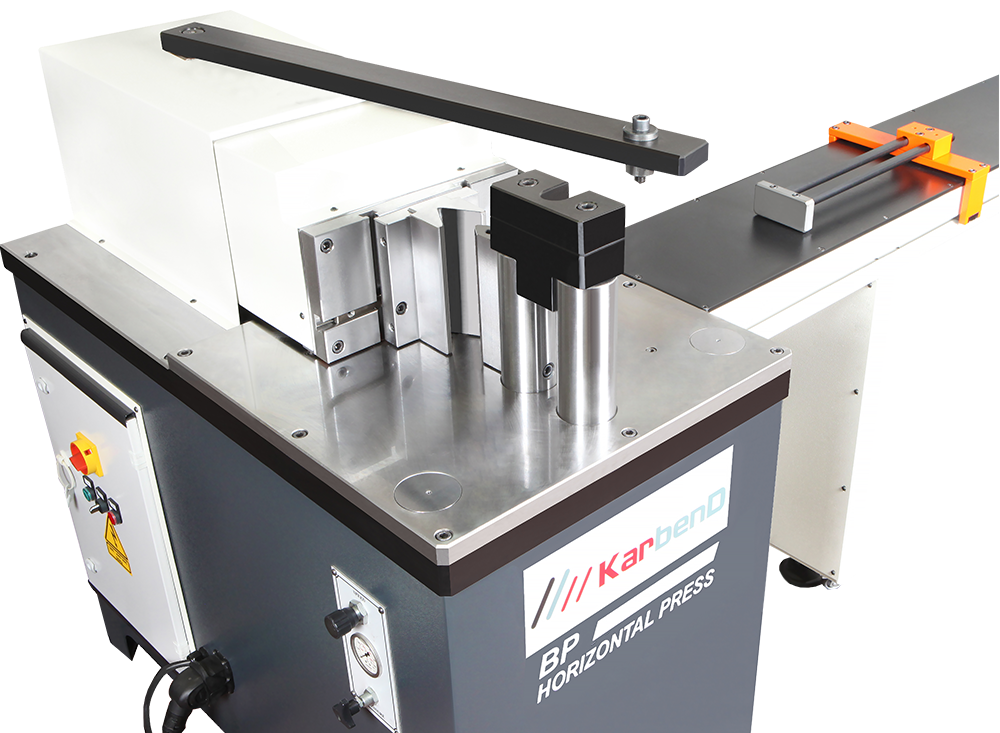

Horizontal Press Brake with Positioning Table

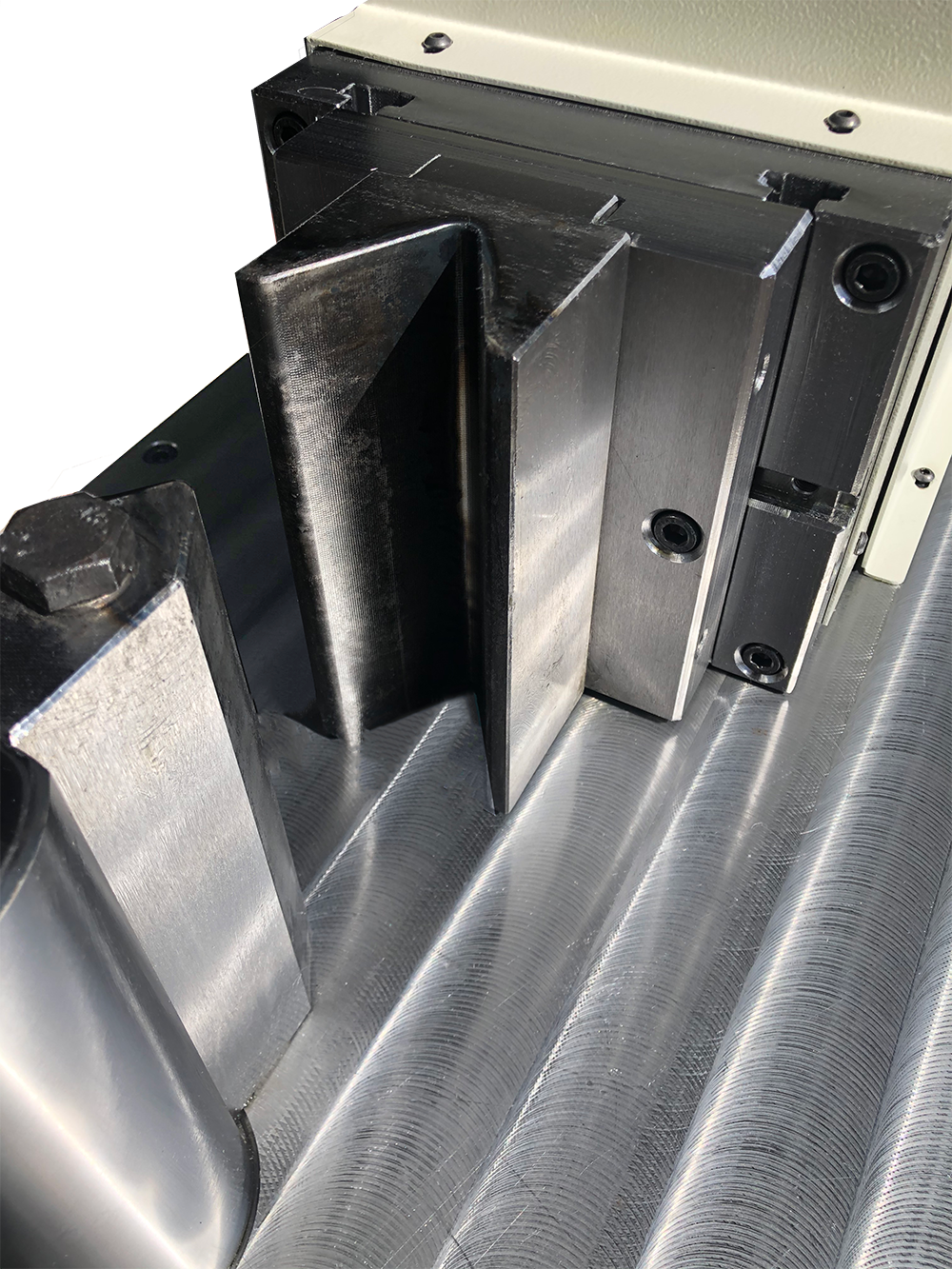

Horiztontal Press brake standard V-Block Tooling

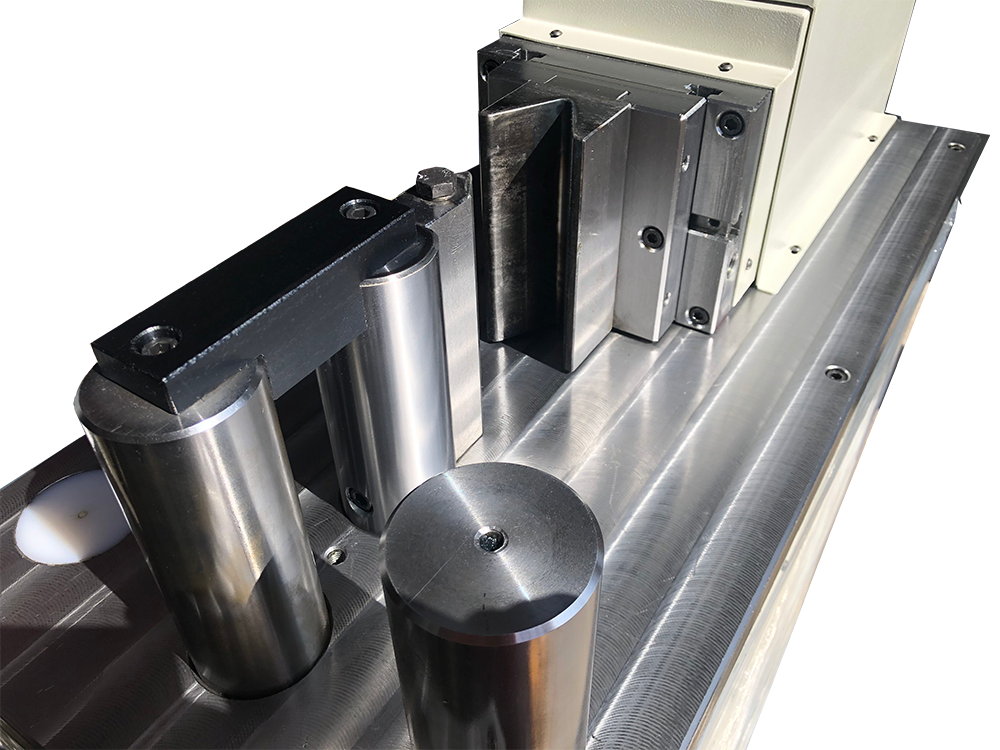

Horiztontal Press brake standard V-Block Tooling

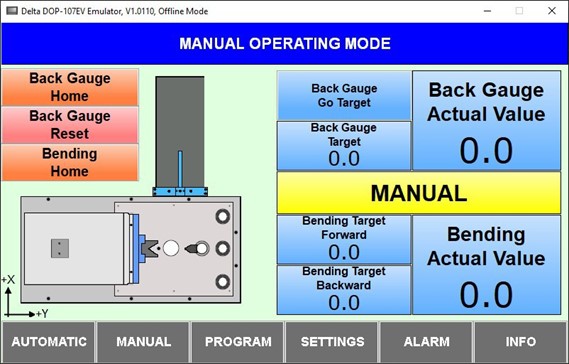

Horizontal Press Brake with Automated Side Gauge Manual Operating Mode Screen.
Horizontal Press Brake with Automated Side Gauge Program Creating Mode Screen.

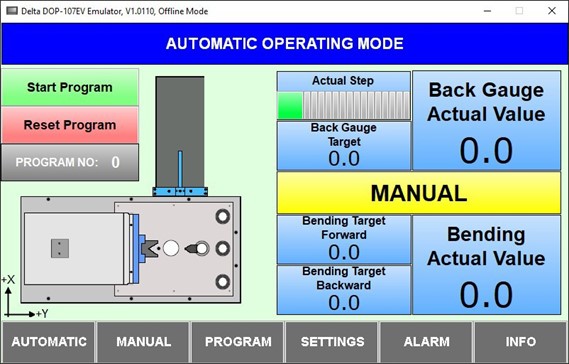

Horizontal Press Brake with Automated Side Gauge Automatic Mode Screen.

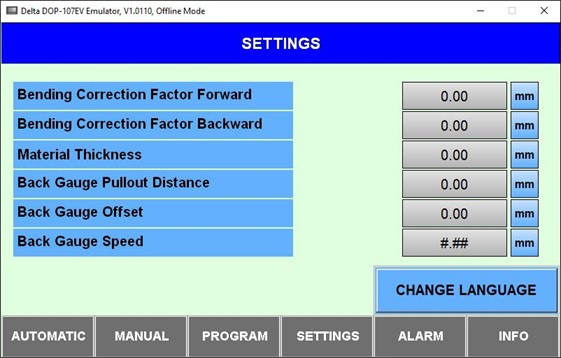

Horizontal Press Brake with Automated Side Gauge settings Mode Screen.

Horizontal Press Brake with NC Touchscreen Control with Automated Positioning Table

Please contact for prices

Horizontal Hydraulic Press with automated positioning table and NC touchscreen control for precision metalworking applications, ideal for bending, straightening, punching, and shearing.

SKU: HPB-NC-Control-PosTable Category: Tags: , , , , , , , , , , , , , ,

Capacity Table

Horizontal Press Brakes with Programmable Backgauge

Specification/Model BP 10 BP 20 BP 30 BP 40 BP 50 BP 80 BP 100
Max Pressure (Tons) 10 20 30 40 50 80 100
NC Controller 20 Programs/15 Steps each 20 Programs/15 Steps each 20 Programs/15 Steps each 20 Programs/15 Steps each 20 Programs/15 Steps each 20 Programs/15 Steps each 20 Programs/15 Steps each
Flat material: (mm) 150 x 8 200 x 12 200 x 18 200 x 24 300 x 15 On Request On Request
Round Tubes: (mm) 42 x 3.2 48 x 4.0 60 x 4.0 60 x 5.0 76 x 4.0 On Request On Request
Max Stroke (mm) 185 185 285 285 285 285 285
Pin Dia. (mm) 60 80 80 80 90 105 105
Tool Height (mm) 150 200 250 250 300 300 300
Working Speed (mm/sec) 10 10 10 10 10 10 10
Return Speed (mm/sec) 10 10 10 10 10 10 10
Motor (kW) 1.1 2.2 3 4 5.5 10 10
Oil Capacity (Litres) 12 12 40 40 60 120 120
Net Weight (kg) 250 530 1050 1050 1450 1700 1700
Table Size (L x W mm) 450 x 900 480 x 1060 660 x 1250 660 x 1250 600 x 1250 750 x 1425 750 x 1425
Working Height (mm) 915 930 930 930 930 930 930
Length (mm) 900 1150 1250 1250 1400 1430 1430
Width (mm) 450 480 650 650 600 750 750
Height (mm) 1130 1200 1250 1250 1500 1450 1450

The Horizontal Hydraulic Press Machines from WorkShopPress.co.uk deliver precision, versatility, and ease of use for metalworking applications. Equipped with an advanced NC touchscreen control and automated positioning tables, these presses offer enhanced productivity for a wide range of bending, straightening, and punching operations. The NC touchscreen allows operators to store up to 20 programs with 15 steps each, enabling automated, repeatable workflows that reduce setup time and improve efficiency. Whether you’re bending flat bars, round tubes, or performing sheet metal folding, this machine provides the reliability and flexibility needed for small batch or high-volume production runs.

These horizontal presses are ideal for industries such as manufacturing, metal fabrication, and construction, where precise, repetitive operations are essential. Manual and program modes offer the adaptability needed to suit different production requirements, making these presses a powerful asset in any workshop.

 Features

  • NC Controller Holds 999 Programs, 15 Steps Each
  • Adjustable Piston Stroke and Return by Step
  • Manual and Automatic Program Modes
  • Flow Adjustment Valve for Pressure
  • Pressure Manometer
  • Back Gauge
  • V-Die (5 mm Radius)
  • V-Die Receptor (86 mm Opening)

 Optional Accessories

  • Tool Set for Bending Tubes
  • Tool Set for Bending Flat Bar the Hard Way
  • Tool Set for Straightening Beams and Sections
  • Tool for Bending Sheet Metal into Specific Shape
  • Punching Tools
  • Shearing Tools

Industries Using the Machine and Their Uses

  • Metal Fabrication: Bending, punching, and cutting of profiles, tubes, and sheets
  • Construction: Production of brackets, clips, and reinforcements for structural applications
  • Manufacturing: High-volume, repeatable bending and straightening processes
  • Automotive: Creation of custom parts and components for vehicle frames and chassis
  • Aerospace: Precision bending and punching for lightweight metal components
FAQ button for all product categories offered by The Workshop Press Company UK

Horizontal Press Brake FAQs

Click HERE

Horizontal Press Break Charts

Additional information

Weight 750 kg
Dimensions 1200 × 750 × 1200 cm
