Digital Pressure Gauge Manometer – HTE2
General View of HTE2 Digital Pressure Gauge

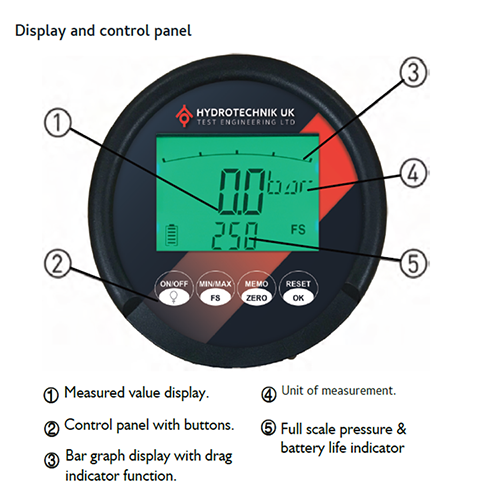

HTE2 Gauge Display and Control Panel

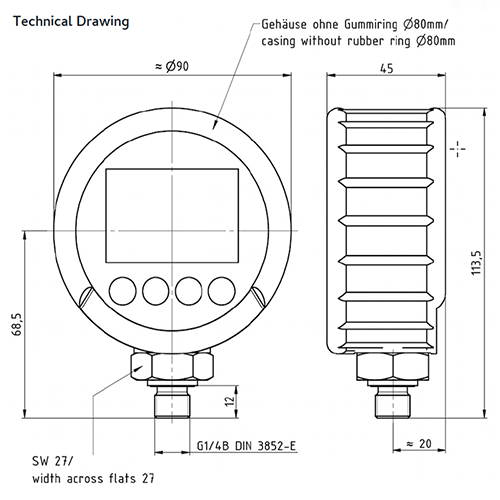

Dimensional Layout of HTE2 Digital Pressure Gauge

Digital Pressure Gauge Manometer – HTE2

Please contact for prices

Maximize the efficiency and precision of your hydraulic presses with the HTE2 Digital Pressure Gauges. Designed for seamless integration, these gauges offer real-time pressure monitoring, enhancing operational safety and product quality in metal fabrication.

SKU: HYDROIL-20L-1 Categories: , Tags: ,

Optimized for Hydraulic Press Operations: The HTE2 Digital Pressure Gauges are an essential upgrade for any hydraulic press or metal fabrication machinery. By offering precise pressure readings and peak capture functionality, these gauges enable operators to maintain optimal pressure levels, ensuring the longevity and performance of your machinery. The rugged IP67-rated design ensures durability in industrial environments, while the backlit display and 320° rotatable screen make it easy to read pressure readings from any angle. With the HTE2 Series, you can easily integrate advanced pressure monitoring into your presses, elevating the standard of your metal fabrication processes.

Specifications:

  • Pressure Ranges: From -1 to 1000 bar
  • Accuracy: <±0.5 FS
  • Sampling Rate: 10 ms
  • Internal Resolution: AD converter 12 bit = 4096 steps
  • Temperature Influence: 0.05% FS / 10 K
  • Display Features: Actual value, MIN/MAX or Full Scale (FS), Bar graph with drag indicator, Sampling rate 50 ms
  • Battery Life: Approximately 1500 hrs (without backlight)
  • Protection: IP67, offering excellent dust and moisture resistance
  • Operating Temperature: 0…50 °C
  • Pressure Connection: Stainless steel 1.4404, G¼” BSPP (ISO 1179-2) with NBR gasket
  • Housing: Zinc cast with rubber protection, Ø = 79 mm, Thickness = 33 mm, Weight: 540 g

Features of the Gauge:

  • Exact and reliable measurement with high operational readiness
  • Easy and clear readout with a backlit display
  • IP67 protection, suitable for harsh environments
  • Powered by 2 x standard AA batteries
  • Supplemental min/max peak capture for detailed pressure analysis
  • Compact and rugged design with a 320° rotatable display for flexible viewing angles

Additional information

Weight 650 kg
Dimensions 600 × 550 × 2000 cm
