LT 460/1500 Precision Metal Lathe from HM Scantool

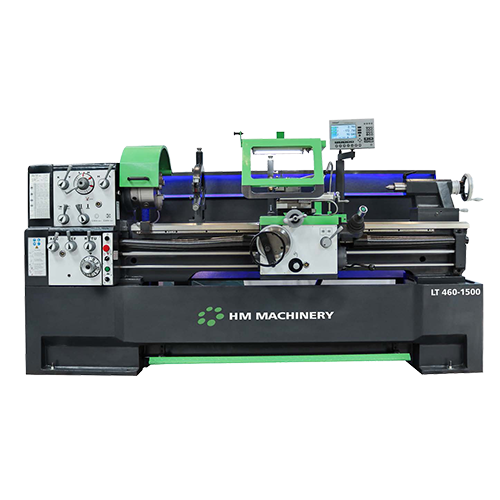

The LT 460/1500 Precision Metal Lathe with 460 mm Swing and 1500 mm Centres frontal view
The Scantool LT 360/1000 Precision Metal Lathe with 460 mm Swing and 1000 included centre post in tailstock

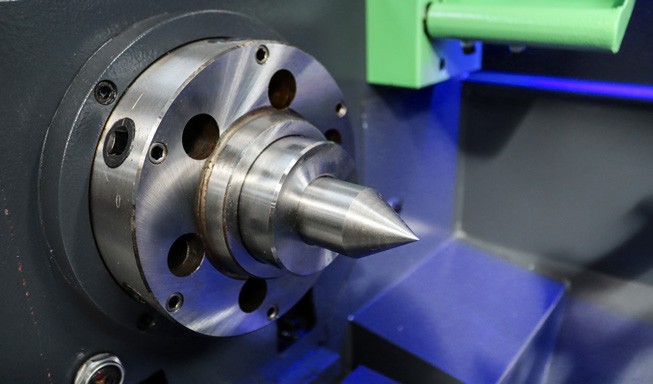

Centre Tool in Tailstock for the LT 460/1500 Precision Metal Lathe with 460 mm Swing and 1500 mm Centres frontal view
Centre Tool for the LT 460/1500 Precision Metal Lathe with 460 mm Swing and 1500 mm Centres frontal view

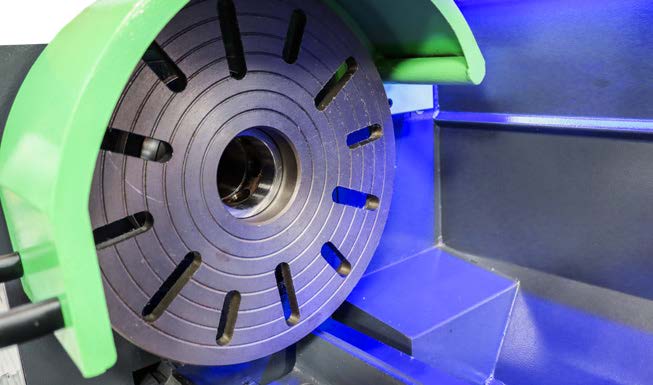

Dawg Face Plate for the LT 460/1500 Precision Metal Lathe with 460 mm Swing and 1500 mm Centres frontal view

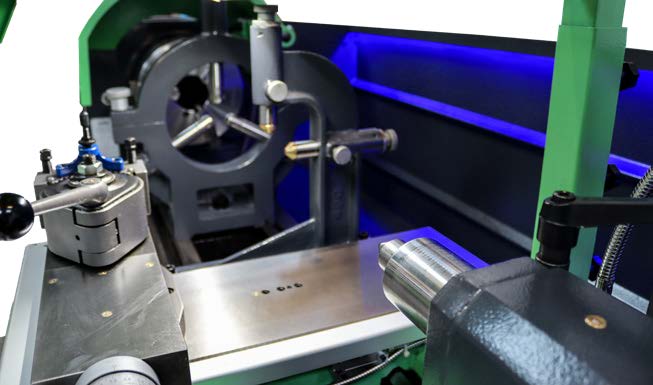

Working Area View for the LT 460/1500 Precision Metal Lathe with 460 mm Swing and 1500 mm Centres frontal view

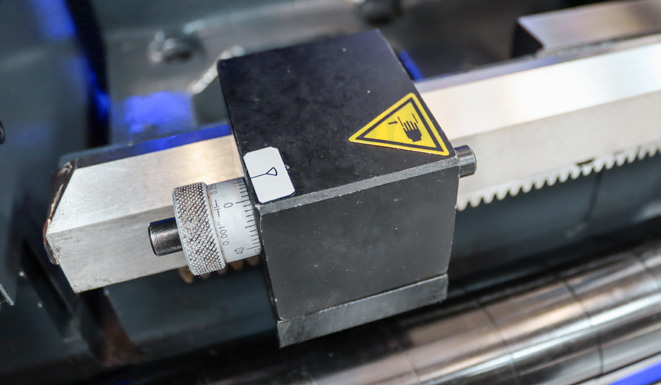

Saddle Stop for the LT 460/1500 Precision Metal Lathe with 460 mm Swing and 1500 mm Centres frontal view

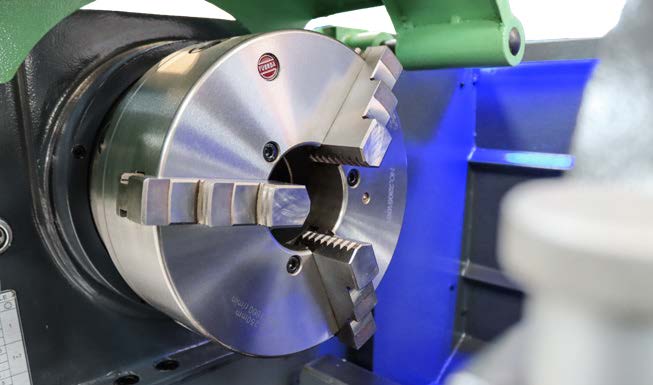

Material chuck for the LT 460 1500 Metal Lathe from HM Machinery with 460 mm swing and 1500 mm centres

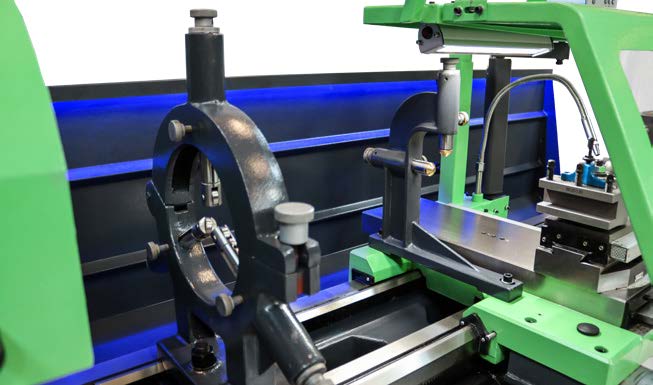

Material Steady Rest for the LT 460/1500 Precision Metal Lathe with 460 mm Swing and 1500 mm Centres frontal view

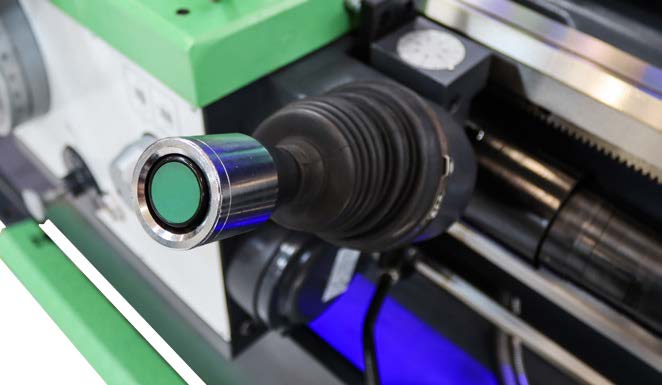

Fast Advance Handle Feature for the LT 460/1500 Precision Metal Lathe with 460 mm Swing and 1500 mm Centres
Reversible Jaws Included with the LT 460/1500 Precision Metal Lathe with 460 mm Swing and 1500 mm Centres

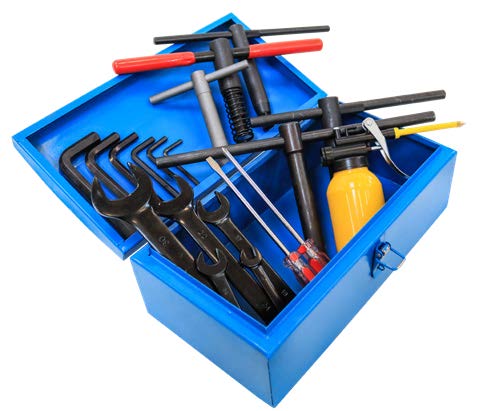

The Scantool Tool Box Included with the LT 460/1500 Precision Metal Lathe with 460 mm Swing and 1500 mm Centres

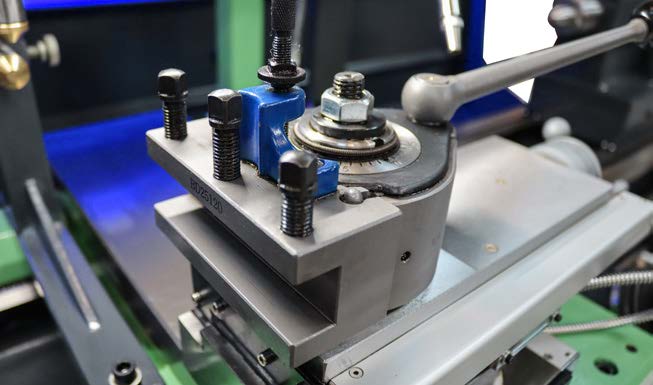

The Scantool Tool Holding Post for the LT 460/1500 Precision Metal Lathe with 460 mm Swing and 1500 mm Centres

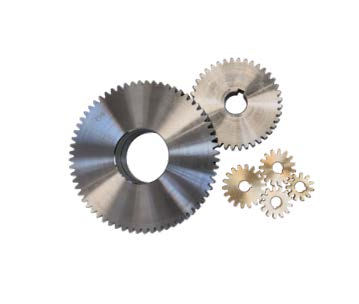

The Scantool LT Speed Changing Gears for The 460/1500 Precision Metal Lathe with 460 mm Swing and 1500 mm Centres

LT 460/1500 Precision Metal Lathe from HM Scantool

Please contact for prices

Robust, precise, and built to last, the LT 460/1500 lathe supports extensive industrial applications with ease and efficiency.

SKU: 36001026 Category: Tags: , , , , , , , , ,

This versatile lathe is designed to operate at variable spindle speeds up to 1700 rpm, accommodating a diverse range of materials and machining techniques. With comprehensive threading options and substantial feed ranges, it's perfectly suited for creating large-scale components in sectors like mining, marine, and large equipment manufacturing

Specifications:

  • Swing over Bed [mm]: 460mm
  • Swing over Gap [mm]: 690mm
  • Swing over Cross Slide [mm]: 270mm
  • Tail Diameter [ø mm]: 60mm
  • Tail Height [mm]: 230mm
  • Spindlenose Camlock: D1-8
  • Distance Between Centers [mm]: 1500mm
  • Width of Bed [mm]: 300mm
  • Spindle Bore [mm]: 80mm
  • Spindlenose Taper: MK-7
  • Number of Spindle Speeds: 12
  • Range of Spindle Speeds [rpm]: 25-1700rpm
  • Metric Threads [mm]: 0.1-14mm
  • Imperial Threads: 2~112 T.P.I
  • Range of Longitudinal Feed [mm]: 0.03~1.7mm
  • Type of Toolholder: Multi
  • Max. Travel of Compound Slide [mm]: 128mm
  • Max. Travel of Cross Slide [mm]: 285mm
  • Max. Travel of Main Slide [mm]: 1500mm
  • Tailstock Spindle Travel [mm]: 130mm
  • Taper in Tailstock Spindle: MK-4
  • Voltage: 3 Ph, 400V, 50 Hz
  • Motor [Kw]: 5.5 kW
  • Length [mm]: 2750mm
  • Width [mm]: 1080mm
  • Height [mm]: 1370mm
  • Weight [kg]: 1820kg

Features and Uses:

  • High-precision digital readout for accurate machining
  • Engineered for prolonged industrial use with minimal downtime
  • Multi-toolholder system enables swift tool changes, optimizing workflow
  • Excellently suited for processing large and elongated materials
  • Ideal for fabricating oversized industrial parts in mining and marine industries
  • Supports intensive manufacturing processes in the heavy equipment sector
  • Provides educational opportunities in technical schools for advanced machining practices
  • Crucial for the production of structurally critical components in aerospace and automotive industries

Additional information

Weight 1820 kg
Dimensions 2750 × 1080 × 1370 cm
