VH04 Series Multi-Spindle Drill Heads

VH04 Series Multi-Spindle Drill Heads

Name: VH04 Series Multi-Spindle Drill Heads
SKU: Erlo-Dual Drill Multi Drill CM2

Please contact for prices

Precision-engineered multi-spindle drill heads with up to 4 ER8 spindles for compact, high-speed parallel and radial drilling.

SKU: VH042 / VH043L / VH043 / VH044 Categories: Multi Drill Heads, PIllar Drill and Mill Drill Accessories Tags: compact drill heads, ER8 drill unit, multi-hole drilling tool, multi-spindle drill head, VH04 series

Description

Designed for efficiency and accuracy, VH04 Series drill heads feature synchronous gear-driven operation, lightweight bodies, and tight spindle spacing for dense drilling patterns. With a maximum speed of 4,000 RPM and 1:1 gear ratio, each head provides reliable performance in steel, cast iron, and aluminum drilling operations.

Each unit accepts ER8 tools up to Ø 5 mm and is suited for mounting to custom fixtures, gantry systems, or drill stands in automated production setups. Multiple configurations are available to accommodate both linear and radial hole arrangements.

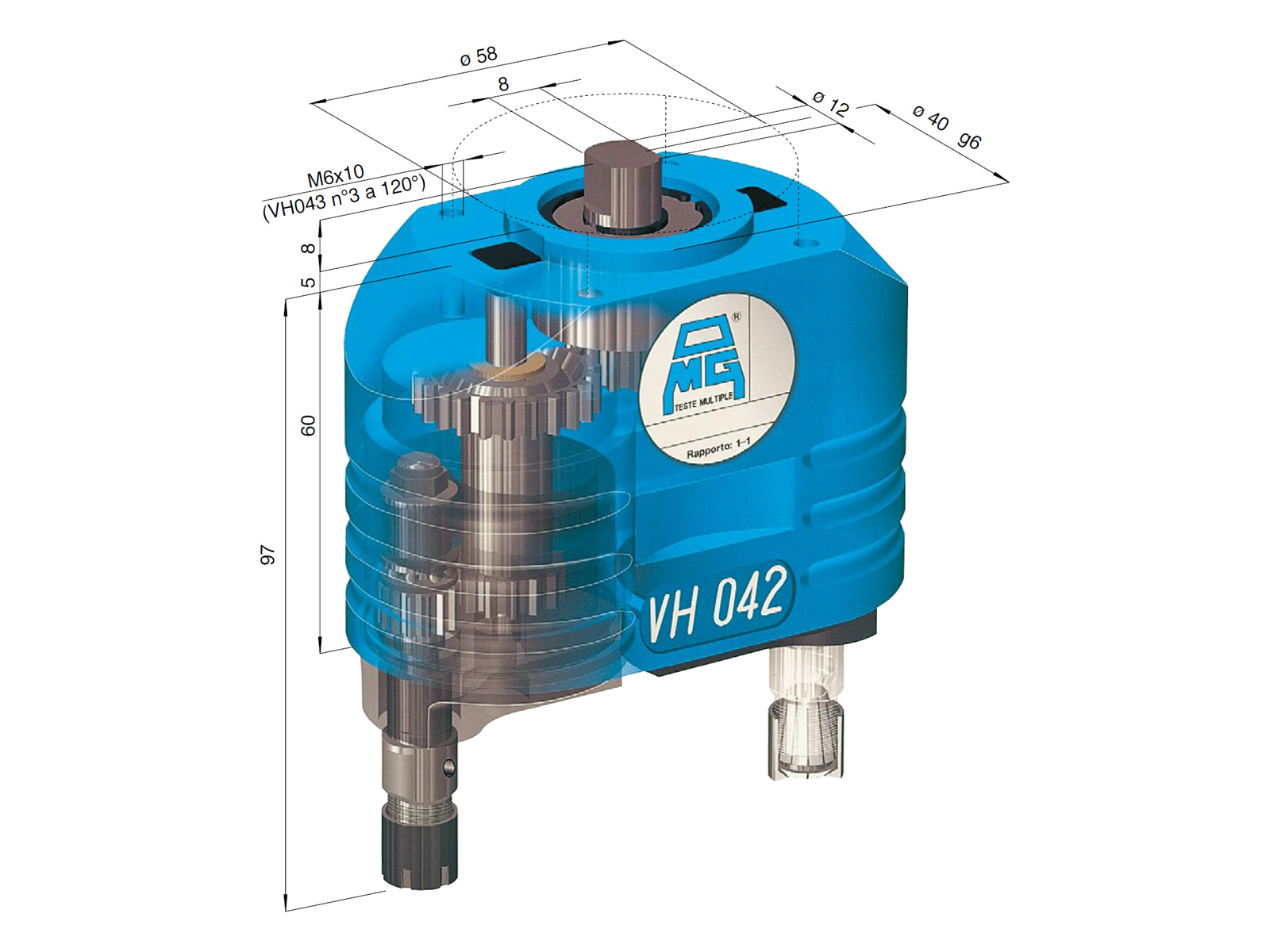

VH042

VH043 L

Technical Specifications – VH042

Item Code: VH 042 P
Spindle Type: ER 8 – max Ø 5 mm
Number of Spindles: 2
Working Range – Center Distances [mm]: 12 + 12
Maximum Center Distance [mm]: 72
Drilling Capacity (Steel Rm 500 N/mm²): Ø 4 mm
Drilling Capacity (Cast Iron GG25): Ø 5 mm
Tapping Capacity: M3
Gear Ratio: 1:1
Maximum Speed [RPM]: 4,000
Weight [kg]: 0.95

Technical Specifications – VH043 L

Item Code: VH 043 LP
Spindle Type: ER 8 – max Ø 5 mm
Number of Spindles: 3
Working Range – Center Distances [mm]: 12 + 12
Maximum Center Distance [mm]: 42 + 42
Drilling Capacity (Steel Rm 500 N/mm²): Ø 4 mm
Drilling Capacity (Cast Iron GG25): Ø 5 mm
Tapping Capacity: M3
Gear Ratio: 1:1
Maximum Speed [RPM]: 4,000
Weight [kg]: 1.05

VH043

VH044

Technical Specifications – VH043

Item Code: VH 043 P
Spindle Type: ER 8 – max Ø 5 mm
Number of Spindles: 3
Working Range – Center Distances [mm]: Ø 18.5
Maximum Center Distance [mm]: Ø 78.5
Drilling Capacity (Steel Rm 500 N/mm²): Ø 4 mm
Drilling Capacity (Cast Iron GG25): Ø 5 mm
Tapping Capacity: M3
Gear Ratio: 1:1
Maximum Speed [RPM]: 4,000
Weight [kg]: 1.4

Technical Specifications – VH044

Item Code: VH 044 P
Spindle Type: ER 8 – max Ø 5 mm
Number of Spindles: 4
Working Range – Center Distances [mm]: Ø 29.5
Maximum Center Distance [mm]: Ø 96
Drilling Capacity (Steel Rm 500 N/mm²): Ø 4 mm
Drilling Capacity (Cast Iron GG25): Ø 5 mm
Tapping Capacity: M3
Gear Ratio: 1:1
Maximum Speed [RPM]: 4,000
Weight [kg]: 1.9

Model	Spindle Count	Center Distance (Min-Max)	Drilling Capacity	Tapping Capacity	Max RPM	Weight
VH 042	2	12 mm – 72 mm	4 mm	M3	4,000	0.95 kg
VH 043 L	3	12 mm + 12 mm 42 mm + 42 mm	4 mm	M3	4,000	1.05 kg
VH 043	3	0 mm – 785 mm	4 mm	M3	4,000	1.4 kg
VH 044	4	0 mm – 895 mm	4 mm	M3	4,000	1.9 kg
VH 062	2	17 mm – 93 mm	6 mm	M5	4,000	1.65 kg
VH 063 L	3	175 mm + 175 mm 555 mm + 555 mm	6 mm	M5	4,000	1.95 kg
VH 063	3	0 mm – 103 mm	6 mm	M5	4,000	2.3 kg
VH 064	4	0 mm – 117 mm	6 mm	M5	4,000	3.1 kg
VH 082	2	24 mm – 108 mm	8 mm	M6	4,000	2.2 kg
VH 083 L	3	24 mm + 24 mm 66 mm + 66 mm	8 mm	M6	4,000	2.9 kg
VH 083	3	0 mm – 120 mm	8 mm	M6	4,000	3.4 kg
VH 084	4	0 mm – 137 mm	8 mm	M6	4,000	4.6 kg
VH 102	2	28 mm – 120 mm	10 mm	M8	3,500	3.5 kg
VH 103 L	3	28 mm + 28 mm 74 mm + 74 mm	10 mm	M8	3,500	4.9 kg
VH 103	3	0 mm – 132 mm	10 mm	M8	3,500	4.9 kg
VH 104	4	0 mm – 152 mm	10 mm	M8	3,500	7.2 kg
VH 132	2	35 mm – 151 mm	13 mm	M10	3,000	5.3 kg
VH 133 L	3	35 mm + 35 mm 93 mm + 93 mm	13 mm	M10	3,000	7.2 kg
VH 133	3	0 mm – 167 mm	13 mm	M10	3,000	7.7 kg
VH 134	4	0 mm – 191 mm	13 mm	M10	3,000	10.8 kg
VH 181	2	41 mm – 173 mm	18 mm	M14	2,500	8.3 kg
VH 182	2	41 mm – 173 mm	18 mm	M14	2,500	10.75 kg
VH 183 L	3	41 mm + 41 mm 107 mm + 107 mm	18 mm	M14	2,500	12 kg
VH 183	3	0 mm – 191 mm	18 mm	M14	2,500	15.75 kg
VH 184	4	0 mm – 218 mm	18 mm	M14	2,500	19.75 kg
VH 201	2	45 mm – 184 mm	20 mm	M16	2,500	9.2 kg
VH 202	2	45 mm – 184 mm	20 mm	M16	2,500	12.3 kg
VH 203 L	3	45 mm + 45 mm 110 mm + 110 mm	20 mm	M16	2,500	13.8 kg
VH 203	3	0 mm – 206 mm	20 mm	M16	2,500	17.3 kg
VH 204	4	0 mm – 229 mm	20 mm	M16	2,500	21.3 kg
VH 251	2	50 mm – 208 mm	25 mm	M20	2,000	10.7 kg
VH 252	2	50 mm – 208 mm	25 mm	M20	2,000	13.7 kg
VH 253 L	3	50 mm + 50 mm 110 mm + 110 mm	25 mm	M20	2,000	15.7 kg
VH 253	3	0 mm – 229 mm	25 mm	M20	2,000	19.7 kg
VH 254	4	0 mm – 253 mm	25 mm	M20	2,000	23.7 kg

How These Devices Attach to the Drill Press

The VH series heads are designed to be compatible with standard pillar drills using several standardized attachment methods to ensure secure and efficient operation. The attachment mechanisms follow DIN standards, which dictate the type of tooling interfaces that can be used. Below is an explanation of the DIN standards that are applicable and how they affect the attachment of the device to the drill press:

Installation and Setup

The VH series heads are designed for quick and easy installation on standard drill presses.

Quick Installation: Tooling interfaces like collet chucks and drill sleeves allow for rapid installation of the VH series heads. Operators can swiftly change out heads as needed, enabling different operations without significant delays.
Easy Setup: Once the appropriate attachment method (sleeve, collet chuck, or steep taper) is selected, aligning and securing the VH series head is straightforward. This ensures repeatability in positioning and operational accuracy.
