D53 / 25 – 320 • 50 Kg Capacity • 0.25 to 2.5 RPM • 320mm Working Height • 250mm Faceplate • 10mm Through Hole

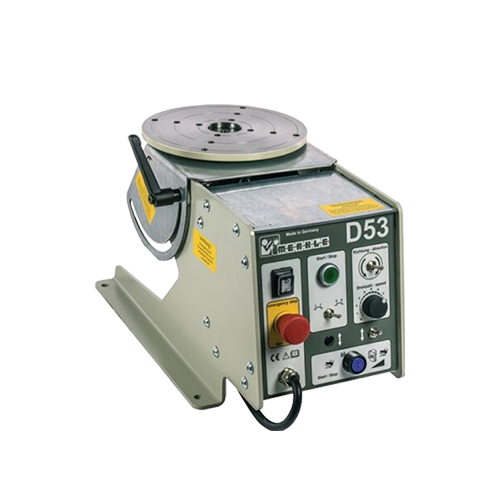

Welding Turntable model D53 Short offered by WorkshopPress.co.uk manufactured in Germany by Merkle

Merkle D53 Series Welding Positioner Control Panel

Merkle welding postioners have a dustproof 24V DC Motor

Merkle Welding Positioners have tiltable welding faceplates

Merkle welding positioners have a standard throughhole larger optional hole is available.

Merkle D52 D53 D102 D302 Back View Current Collector Duty Cycle 80 percent

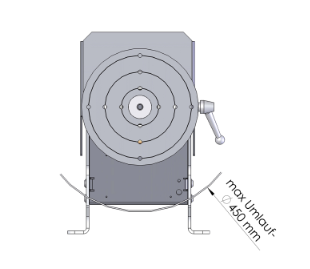

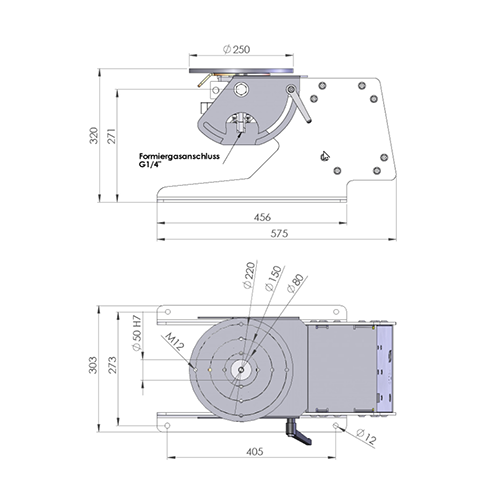

Merkle D53 Seriews Weldting Turntable Dimensions

Merklde Welding Positioners complete offereing from Workshopress.co.uk

D53 / 25 – 320 • 50 Kg Capacity • 0.25 to 2.5 RPM • 320mm Working Height • 250mm Faceplate • 10mm Through Hole

Please contact for prices

The Welding Positioner Controls include a mains power switch which turns the overall power on/off, a push-button on/off switch for the rotation function, a button to control the rotational direction in a clockwise or anti-clockwise direction, a potentiometer to control the turntable revolutions per minute (RPM), a coding switch to control 2 stroke or 4 stroke functionality, and a 10 pin plug that allows for optional extras such as foot control switch, remote switch, or remote control.

Out of stock

SKU: D53/25-320 Category: Welding Positioners Tags: welding positioner, welding table, welding turn table
