PE and PE-4 Series Mechanical C-Frame Presses 30 to 160 Tons 45 to 125 Strokes per Minute

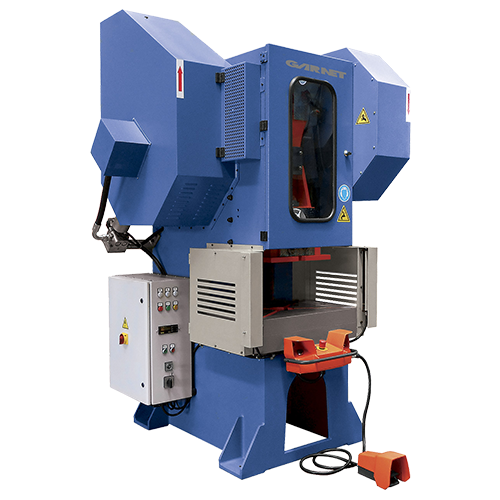

PE-4 Series Mechanical C-Frame Press from Hidrogarne

PE and PE-4 Series Mechanical C-Frame Presses 30 to 160 Tons 45 to 125 Strokes per Minute

Please contact for prices

High-performance mechanical C-frame presses with capacities ranging from 30 to 315 tons. Ideal for punching, stamping, cutting, and deep drawing operations.

Out of stock

SKU: PE-PE4-Series Categories: , Tags: , , , , , , , ,

Discover the high-performance PE and PE-4 Series Mechanical C-Frame Presses, designed for precision and efficiency in punching, stamping, cutting, and deep drawing operations. Built with advanced technology and robust materials, these presses ensure exceptional quality and reliability, making them ideal for a variety of industrial applications.

Technical Specifications

  • Press Capacity: 30 to 315 tons
  • Stroke per Minute: 35 to 125 spm
  • Stroke Adjustment: 10 to 200 mm
  • Motor Power: 2.2 to 22 kW
  • Table Dimensions: 360×560 mm to 900×1200 mm
  • Ram Dimensions: 260×340 mm to 400×700 mm
  • Throat Depth: 180 to 450 mm

Features and Uses

  • Direct flywheel transmission for high-speed operations (PE Series)
  • Gearbox transmission for high tonnage at low speeds (PE-4 Series)
  • Automatic ram adjustment for precise control (PE-4 models from 160 to 315 tons)
  • Centralized automatic lubrication with a programmable system
  • Electropneumatic clutch-brake combination with dual safety valves
  • Compliance with CE Machinery Directives for safety
  • Suitable for punching, stamping, cutting, and deep drawing applications

Industries Using the Machine and Their Uses

  • Automotive: Stamping and forming of car parts
  • Aerospace: Precision cutting and forming of aircraft components
  • Electrical: Punching and stamping of electrical enclosures and components
  • Metal Fabrication: General cutting, punching, and forming tasks
  • Construction: Manufacturing of metal parts for building structures

Specification / Model PE 30 PE 40 PE-4 40 PE-4 60 PE-4 80 PE-4 100 PE-4 125 PE-4 160 PE-4 200 PE-4 250 PE-4 315
Press Capacity (ton) 30 40 40 60 80 100 125 160 200 250 315
Stroke per Minute (spm) 125 125 60 60 60 50 50 45 40 40 35
Nominal Tonnage Height (mm) 3.5 4 4 4.5 5 5.5 5.5 6 6.5 7 7.5
Stroke Adjustment (mm) 10-75 10-90 10-90 10-100 10-115 10-135 10-135 20-150 20-170 20-180 20-200
*Max. Closed Mould Height (mm) 225 250 250 270 285 315 315 350 430 420 400
Table – Ram Distance (mm) 300 340 340 370 400 450 450 500 600 600 600
Ram Adjustment (mm) 50 50 50 50 50 60 60 70 80 80 90
Table Dimensions (mm) 350 x 560 440 x 640 440 x 640 470 x 700 500 x 750 560 x 860 600 x 900 700 x 1100 800 x 1200 900 x 1200 900 x 1200
Ram Dimensions (mm) 260 x 340 280 x 380 280 x 380 310 x 410 340 x 440 420 x 520 315 x 550 370 x 620 400 x 700 400 x 700 400 x 700
Diameter of Table Hole (mm) 140 170 170 190 220 250 250 280 300 310 320
Diameter of Ram Hole D (mm) 35 40 40 40 45 50 50 55 60 65 70
Throat Depth (mm) 180 220 220 235 250 280 300 350 400 450 450
Motor Power (kW) 2.2 3 3 4 5.5 7.5 11 11 15 18.5 22

Dimenion chart that displays such dimensions as overall height, width and depth of the PP and PPE Series from Garnet

Model PE 30 PE 40 PE-4 40 PE-4 60 PE-4 80 PE-4 100 PE-4 125 PE-4 160 PE-4 200 PE-4 250 PE-4 315
Dimensions
H1 (mm) 2000 2000 2200 2350 2500 2760 2870 3200 3250 3280 3450
H2 (mm) 670 670 670 670 700 800 800 950 950 950 950
W1 (mm) 1300 1400 1370 1460 1500 1640 1680 1800 2100 2100 2150
W2 (mm) 840 840 840 840 920 990 1000 1190 1360 1400 1450
D1 (mm) 1100 1300 1220 1230 1400 1630 1650 1860 2130 2200 2280
D2 (mm) 820 1040 1040 1070 1195 1420 1385 1610 1800 1920 2000

Additional information

Dimensions 2130 × 2100 × 3250 cm
