PPC-28 C-Frame Press • 28 Ton Profi Press

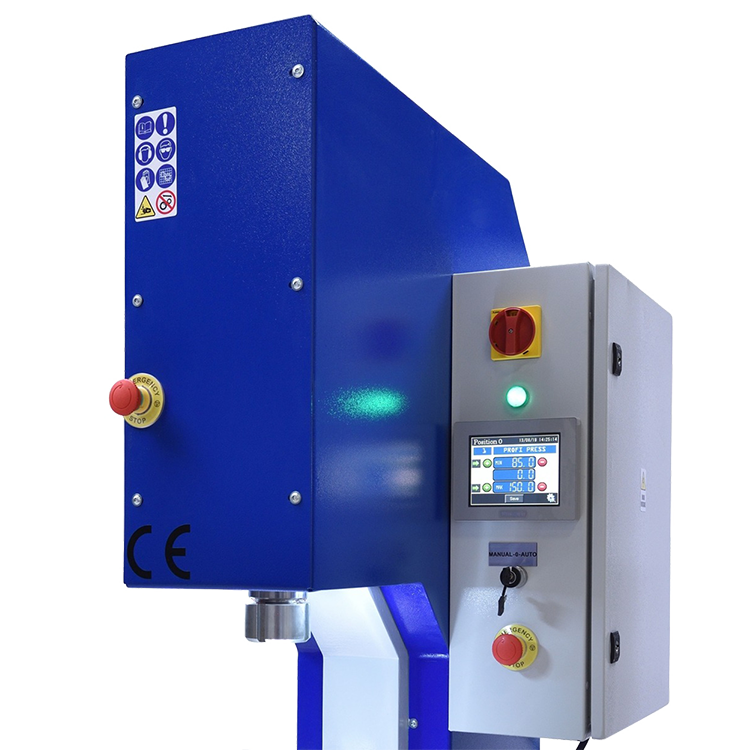

PPC-28 28 Ton C-Frame Press by RHTC, featured but The Workshop Press Co UK

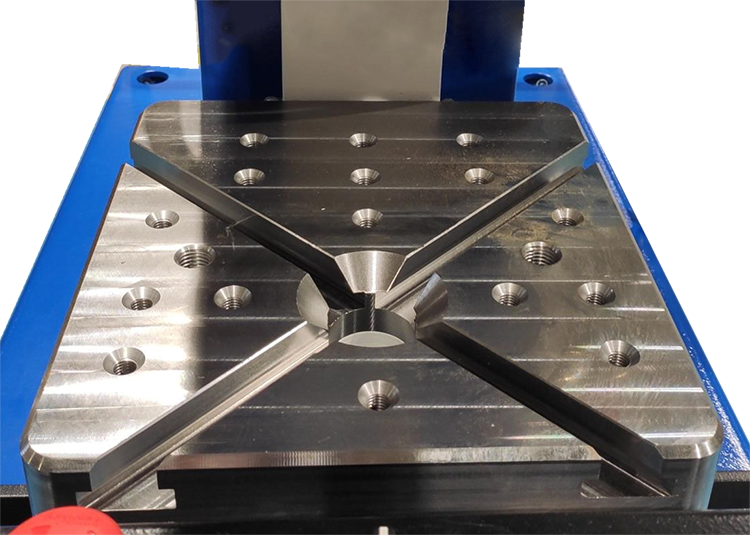

Close-up view of the PPC-28 28 Ton C-Frame Press by RHTC, available on The Workshop Press Co UK

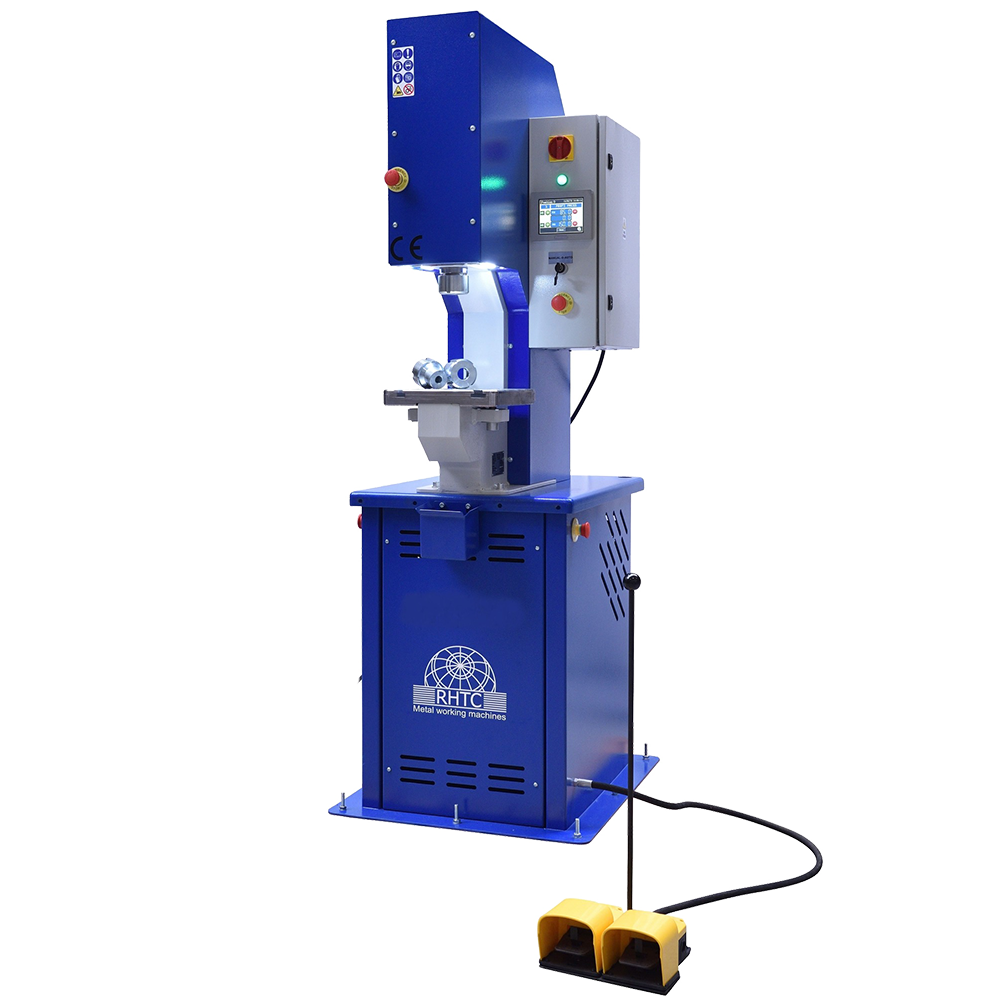

PPC-28 28 Ton C-Frame Press Main RHTC 1000 x 1000

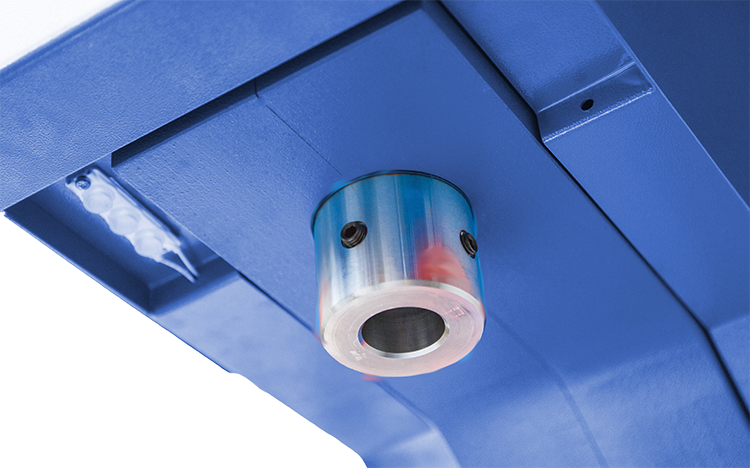

Close-up view of the piston of the PPC-28 model 28 Ton C-Frame Press by RHTC, sold by The Workshop Press Co UK

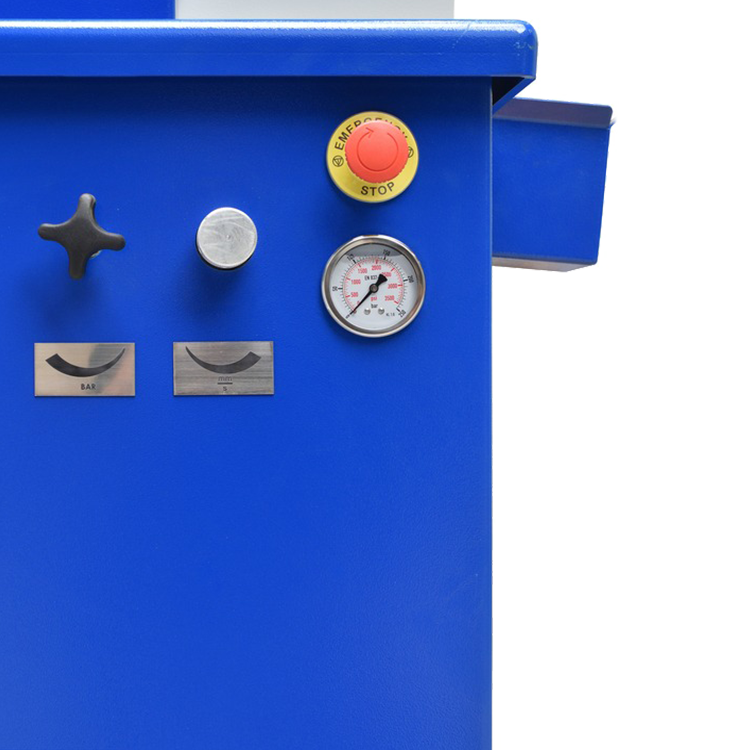

Detailed view of the pressure and speed regulation system of the PPC-28 a 28 Ton C-Frame Press by RHTC sold by The Workshop Press Company UK

PPC-28 C-Frame Press • 28 Ton Profi Press

Please contact for prices

28-ton capacity Profi Press PPC-28 C-Frame hydraulic press with NC stroke control and dual operational modes, offering exceptional precision and durability for metalworking tasks.

SKU: PPC10010 Categories: , , , , Tags: , ,

The Profi Press PPC-28 C-Frame Press is a 28-ton capacity hydraulic press ideal for various cold metalworking applications such as stamping, punching, and notching. Manufactured in Europe and certified according to CE directives, this press is equipped with an NC controller for digital stroke control and features dual operational modes for maximum flexibility. With precise hydraulic adjustments, it is designed for industries requiring efficiency and accuracy.

Technical Specifications

  • Pressing Force: 28 tons
  • Max. Pressure: 200 bar
  • Max. Working Speed: 9.8 mm/s
  • Piston Stroke: 150 mm
  • Vertical Daylight Max.: 280 mm
  • Vertical Daylight Min.: 130 mm
  • Min. Working Speed: 2 mm/sec
  • Return Speed: 12.8 mm/sec
  • Piston Diameter: 70 mm
  • Piston Tool Hole: 40 mm
  • Throat Depth: 225 mm
  • Table Size: 325 x 300 mm
  • Length: 902 mm
  • Width: 700 mm
  • Height: 1996 mm
  • Weight (Net): 572 kg

Features

  • 28-ton hydraulic pressing force
  • Manual and Semi-Automatic modes
  • NC-Controlled piston stroke for precise operation
  • Safety systems with emergency buttons
  • Adjustable hydraulic pressure and speed
  • Built-in manometer for real-time pressure monitoring
  • Foot pedal operation for hands-free control
  • Robust European construction for long-lasting use
  • Customizable for various metalworking tasks
  • CE Certified for safety and compliance
  • 2-year warranty included

Industries Using and Their Uses

  • Automotive: Forming and punching of car body components
  • Aerospace: Precision stamping for high-strength alloys
  • Metal Fabrication: Sheet metal cutting and forming
  • HVAC: Production of ductwork components
  • Electrical: Punching holes in enclosures and panels
