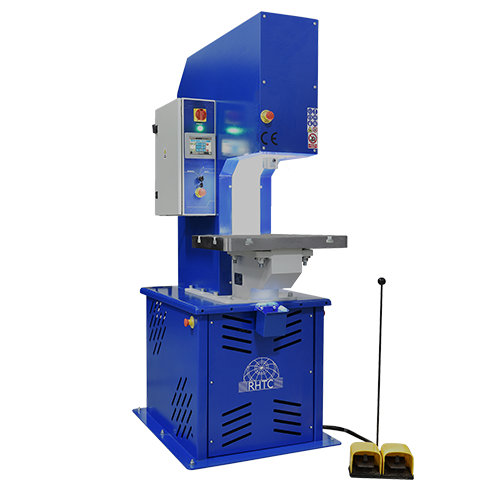

PPC-50 C-Frame Press • 50 Ton Profi Press

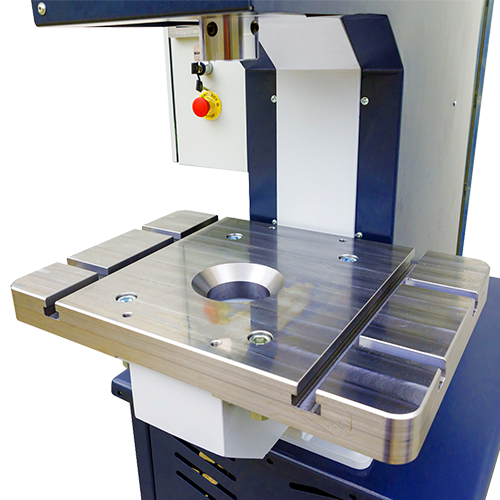

PPC-50 Hydraulic C-Frame Press with 80 Tons of pressure and T-Slots in the Table

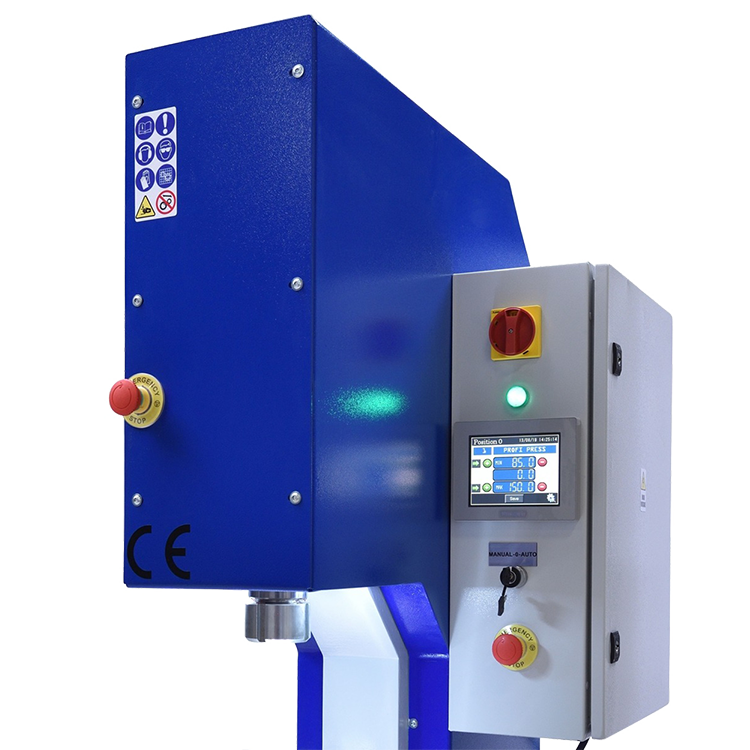

PPC-50 50 Ton C-Frame Press RHTC 750 x 750

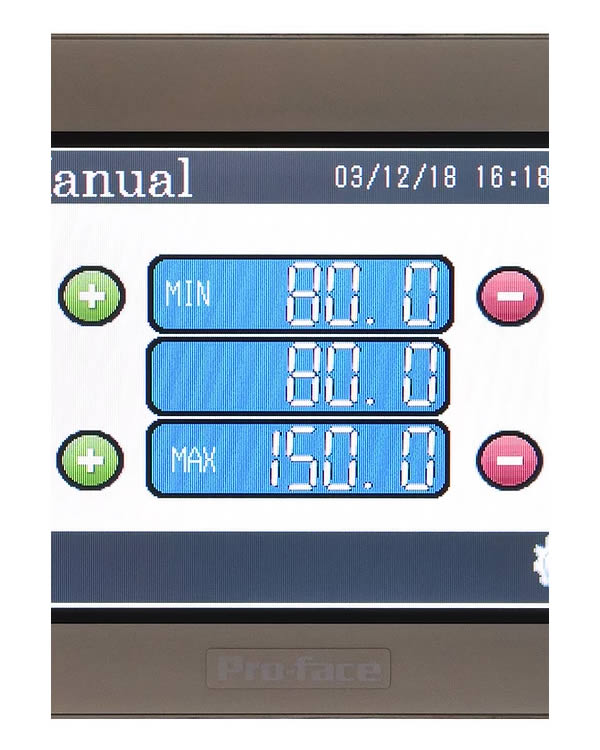

ppc-28-c-frame- control screen.

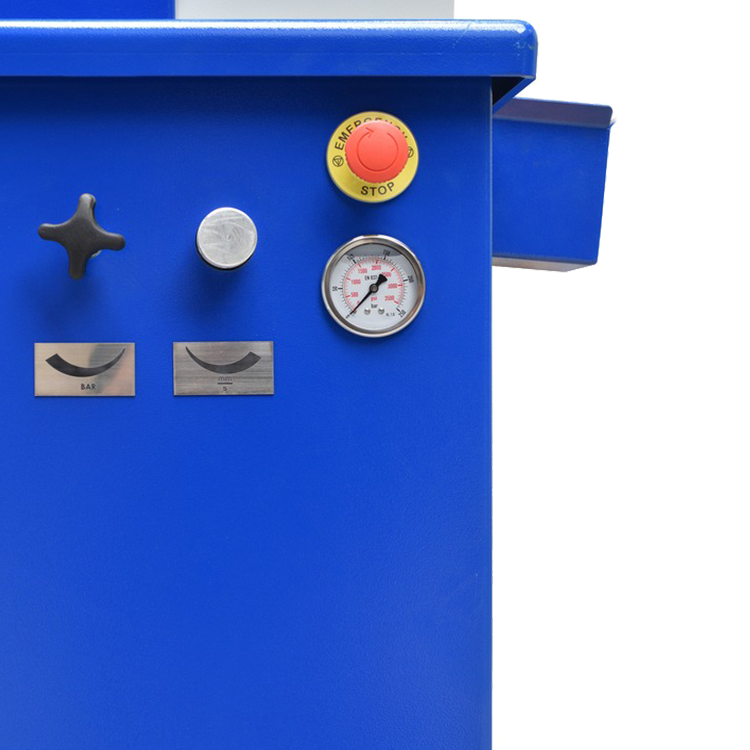

PPC-50 50 Ton C-Frame Press Pressure and Speed Regulation RHTC

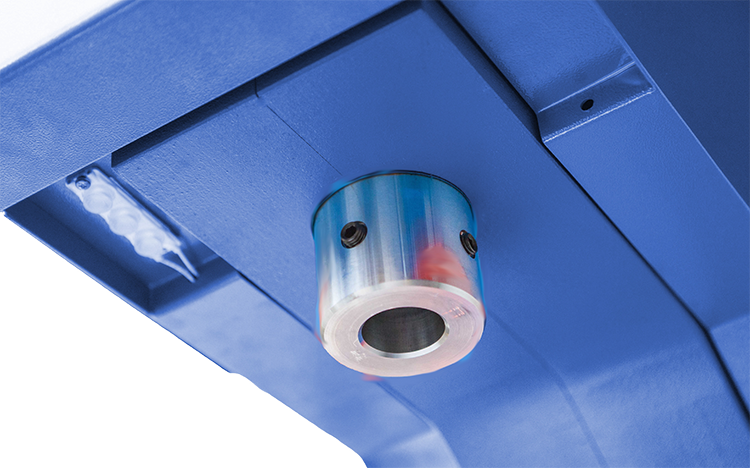

PPC-50 Piston 50 Ton C-frame Press RHTC no background 750 x 468
hydraulic press

PPC-50 C-Frame Press • 50 Ton Profi Press

Please contact for prices

50-ton capacity Profi Press PPC-50 C-Frame hydraulic press with NC stroke control and adjustable hydraulic speed and pressure, designed for precise metalworking applications.

SKU: PPC10011 Categories: , , , Tags: , , , , , , , , , ,

The Profi Press PPC-50 C-Frame Press offers 50 tons of hydraulic pressing power, making it ideal for metalworking processes such as cutting, punching, stamping, and forming. Manufactured in Europe and certified according to CE directives, this press features NC stroke control for precision, adjustable pressure, and foot pedal operation for ease of use. Its robust construction and adaptable hydraulic system make it suitable for both high-volume production and specialized operations.

Technical Specifications

  • Pressing Force: 50 tons
  • Max. Pressure: 250 bar
  • Max. Working Speed: 9.6 mm/s
  • Piston Stroke: 150 mm
  • Vertical Daylight Max.: 325 mm
  • Vertical Daylight Min.: 145 mm
  • Min. Working Speed: 2 mm/sec
  • Return Speed: 13 mm/sec
  • Piston Diameter: 80 mm
  • Piston Tool Hole: 40 mm
  • Throat Depth: 280 mm
  • Table Size: 650 x 490 mm
  • Total Width: 850 mm
  • Total Height: 2100 mm
  • Weight (Net): 1400 kg

Features

  • 50-ton hydraulic pressing capacity
  • NC-Controlled piston stroke for sub-millimeter accuracy
  • Manual and Semi-Automatic modes
  • Adjustable hydraulic pressure and speed controls
  • Foot pedal operation for convenient hands-free usage
  • Emergency stop buttons for enhanced safety
  • Robust European manufacturing ensuring durability
  • Compatible with various metalworking tasks
  • CE Certified for safety and compliance
  • 2-year warranty for peace of mind

Industries Using and Their Uses

  • Construction: Punching holes and forming components for structural assemblies
  • Shipbuilding: Forming and shaping high-strength metal parts
  • Railway: Cutting and shaping heavy-duty components
  • Furniture Manufacturing: Precision stamping and forming of metal fixtures
  • Telecommunications: Punching and forming of metal enclosures and brackets

Additional information

Weight 1400 kg
Dimensions 600 × 550 × 2000 cm
