Four Column Press • 100 Ton • RHTC
Four Column Press • 100 Ton • RHTC
Please contact for prices
100 Ton Four Column Hydraulic Press designed for precision deep-drawing, metal forming, and pressing. European-made with CE compliance and advanced NC control.

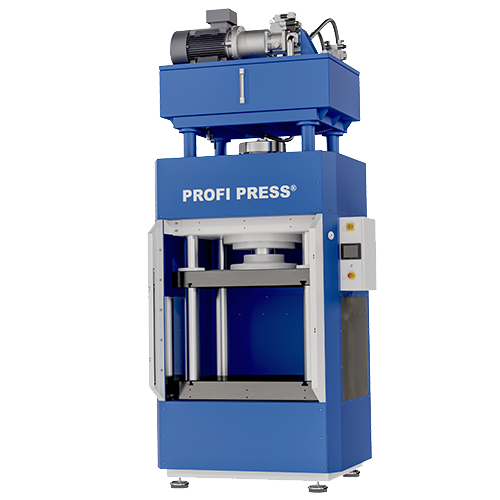

The Profi Press PPFC-100 is a high-quality, European-manufactured hydraulic press designed for demanding industrial applications requiring precision and durability.
Key Benefits:
- Perfect Parallelism: Four cylindrical, chromed columns ensure the upper table is perfectly aligned for high accuracy.
- Advanced NC Control: Digital control for pressure, speed, piston stroke, holding time, and more. Save up to 100 working cycles for easy repeatability.
- Durable Construction: European build quality with premium components ensures reliable operation and long-lasting performance.

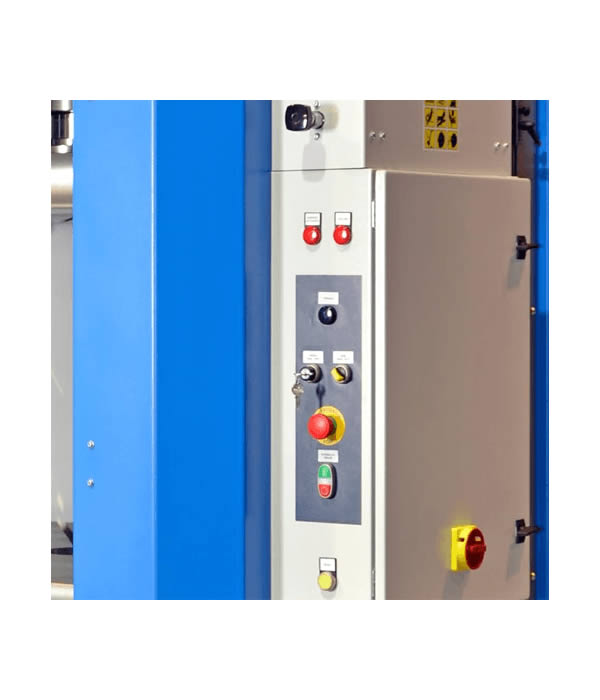

- Safe Operation: CE-certified with advanced safety features, including low-voltage foot pedals and protective panels.
- Flexible Operation Modes: Choose manual, semi-automatic, or automatic modes for optimal versatility.
Technical Specifications
- Force: 100 tons
- Motor Power: 5.5 kW
- Working Speed: 7.5 mm/sec
- Approaching Speed: 30 mm/sec
- Return Speed: 40 mm/sec
- Piston Stroke: 450 mm
- Table Size: 1050 x 710 mm
- Between Columns: 760 x 420 mm
- Vertical Daylight: 620 mm
- Working Height: 750 mm
- Weight: 3200 kg
Key Features
- Four cylindrical columns ensure perfect alignment
- NC control allows advanced customization
- Manual, semi-automatic, or automatic operation modes
- Two-speed cylinder with precision control
- CE-compliant and made in Europe with premium components
Optional Accessories
- Proportional valves for pressure and flow
- PLC SIEMENS SIMATIC S7 1200 with 7” touch screen
- Sliding lower table
- Hydraulic connections for robotic integration
- Cooling equipment with air-oil cooling system
- Hydraulic cushion or ejector in upper/lower tables
- High-speed approach with prefilling valves
PPFC-100 Dimensions
- A – Footprint – Side: 1020 mm
- B – Footprint – Front: 1460 mm
- C – Useful Area – Side: 660 mm
- D – Useful Area – Front: 1060 mm
- V – Vertical Daylight: 680 mm
- F – Working Height: 800 mm
- L – Depth Front to Back: 1520 mm
- W – Width Left to Right: 2020 mm
- H – Overall Height: 2460 mm
RHTC Four Column Hydraulic Press with side-mounted power pack.,
Additional information
| Weight | 4300 kg |
|---|---|
| Dimensions | 1430 × 1880 × 2780 cm |
Related products
-
500 Ton Hydraulic Motorised Production Press
Please contact for prices- Lower Table: 1200 x 1500 mm
- Upper Table: 1200 x 1500 mm
- Vertical Daylight: 1000 mm
- Approach Speed: 100 mm/s
- Piston Stroke: 1000 mm
-
HDDT-200 • 200 Ton • Deep Drawing Press
Please contact for prices -
Four Column Press • 300 Ton • RHTC
Please contact for prices- Useful Area: 1320 x 660 mm
- Motor Power: 11 kW
- Working Speed: 3.2 mm/sec
- Piston Stroke: 460 mm
- Table Size: 1860 x 1200 mm
Top rated products
-

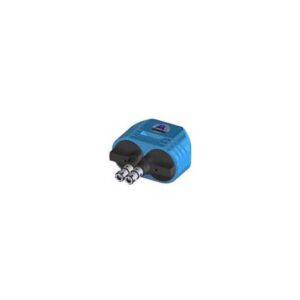

VH18 Series Multi-Spindle Drill Heads
