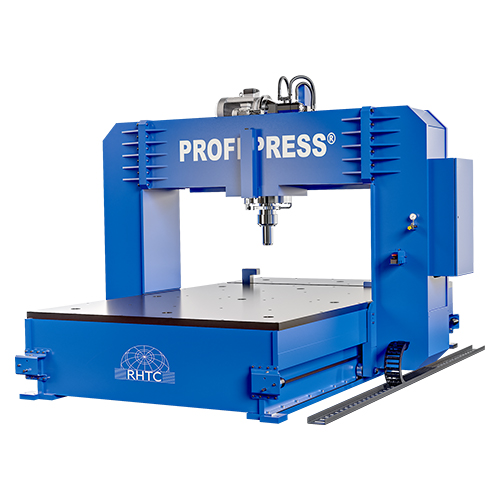

160 Ton Motorised Portal Press – PPTLM Series • RHTC

Technical Specifications

• Force: 160 tons
• Motor Power: 4 kW
• Working Speed: 3 mm/sec
• Approaching Speed: 9.9 mm/sec
• Return Speed: 15.4 mm/sec
• Maximum Pressure: 250 bar
• Piston Stroke: 460 mm
• Table Size: 3000 x 1800 mm
• Horizontal Light: 1850 mm
• Vertical Light: 850 mm
• Headstock Displacement: 1150 mm
• Frame Displacement: 2000 mm
• Working Height: 700 mm
• Total Length: 3500 mm
• Total Width: 2800 mm
• Overall Height: 2700 mm
• Weight: 8700 kg

Key Features

• Motorised movable portal
• Motorised movable cylinder
• Cylinder stroke is easy to regulate with the end-stroke switches
• Selector for manual or semi-automatic operation
• Pressure regulator and manometer
• Wireless remote control

Optional Accessories

• Milling flat table (3000 x 1800 x 75 mm)
• Small cylinders fitted in the lower table to lift pieces, connected to a second hydraulic group
• Additional extension for the cylinder
• Larger table size

Industries Using the Machine

• Railway Industry: Maintenance, fabrication, production, testing
• Shipbuilding Industry: Structural fabrication, repair, component testing
• Aerospace Industry: Component forming, maintenance, stress testing
• Manufacturing: General fabrication, assembly, material testing

Benefits of Motorised Portal Presses

• Motorised roll frame hydraulic presses for heavy-duty applications
• Easy-to-position motorized gantry for precise alignment
• High-capacity presses: 160 Ton, 220 Ton, 300 Ton models available
• Double-acting cylinders for fast retraction and efficiency
• Integrated pressure gauges for enhanced safety and control
• Two-speed hydraulic pump

Benefits of Motorised Portal Presses (cont.)

• Low maintenance design with minimal downtime
• Versatile press suitable for various fabrication and production tasks
• Improved productivity with reduced loading and unloading time</l
