Profi Punch 10 Ton Mechanical Punching Machine – 1600 Punches Per Hour

Profi Punch 10 Mechanical Punching Machine by RHTC

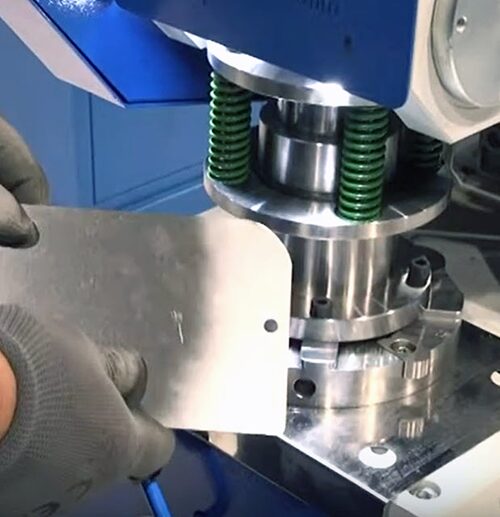

Material with Radius after being cropped in Profi Punch 10

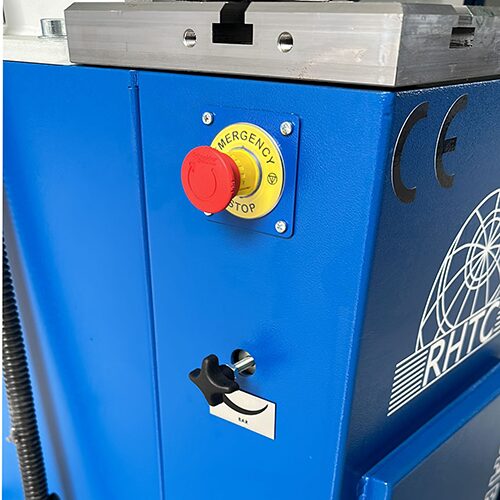

Side view of a punching press with emergency stop and pressure adjustment. The press is a large, heavy-duty machine with a long, cylindrical ram. The ram is connected to a control panel at the top of the machine. The control panel has a red emergency stop button and a pressure adjustment knob.

Profi Punch 10 Ton Mechanical Punching Machine – 1600 Punches Per Hour

Name: Profi Punch 10 Ton Mechanical Punching Machine – 1600 Punches Per Hour
SKU: PPP10001

Please contact for prices

The Profi Punch 10 is a 10-ton mechanical punching machine delivering 1600 punches per hour. Perfect for punching, bending, and cutting metal, this high-performance press is ideal for industrial production with CE certification and advanced safety features.

SKU: PPP10001 Categories: C Frame Mechanical Presses, Hydraulic Punching Machines Tags: hydraulic press, hydraulic press for sale, hydraulic press uses, profi punch, Profi Punch 10 TON, workshop presses

Description

Discover the power and precision of the Profi Punch 10 from RHTC. This 10-ton mechanical punching machine is engineered for high performance and versatility, capable of performing a wide variety of tasks including punching, bending, and cutting metal. Its robust design makes it ideal for industrial production, offering 35 strokes per minute and an average output of 1600 punches per hour. Whether working with metal sheets or pipes, the Profi Punch 10 delivers reliability, ease of use, and uncompromising accuracy.

Technical Specifications

Pressing Force:
10 tons
Motor Power:
2.2 kW
Rotational Speed:
1420 rpm
Stroke Speed:
35 strokes/min
Single Punch Cycle Time:
1.7 seconds
Max Sheet Thickness:
4 mm
Vertical Daylight:
195 mm
Dimensions:
680mm (L) x 440mm (W) x 1214mm (H)
Weight:
190 kg
Power Requirement:
400V, 3-Phase, 50 Hz
Noise Level:
60 dB

Features and Uses

Versatile Punching: Handles multiple tasks such as punching, bending, and cutting for sheet metal and pipes.
1600 Punches Per Hour: High-speed performance suitable for volume production.
Interchangeable Tools: Compatible with custom tools like corner notchers, hole punches for pipes, and sheet metal cutters.
Safety Features: Equipped with a foot pedal switch, emergency stop, and CE certification.
Simple Design: Easy to operate and maintain with a robust construction.

Industries Using the Machine

Metal Fabrication: Ideal for punching and shaping sheet metal.
Automotive Manufacturing: Perfect for metal parts, assembly lines, and precision tasks.
Construction: Suitable for cutting and bending materials for structural components.
HVAC and Plumbing: Used for punching holes and cutting pipes in ventilation and plumbing systems.
Machinery Manufacturing: Supports production lines and parts manufacturing.
