Scantool 100 Industrial Belt Grinder

Belt Grinder General no features display

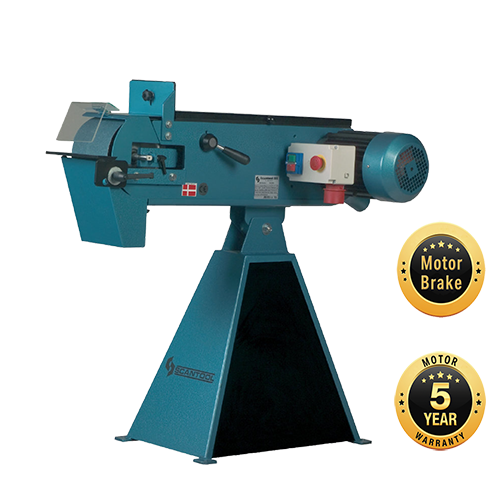

Scantool 100 Industrial Belt Grinder

Please contact for prices

The SCANTOOL 100 Industrial Belt Grinder, featuring a 4.8 HP motor, extra-long grinding table, and quick belt change system, ensures reliable and efficient grinding with top safety features. CE Certified and EU Built.

SKU: 430233140 Categories: All Products, Grinding & Sanding Tags: 4.8 HP Motor, CE certified, Danish Quality, EU Built, Heavy-Duty Grinder, Industrial Belt Grinder, Industrial Grinder, Metal Fabrication, Motor Brake, Quick Belt Change, safety features, SCANTOOL 100, Workshop Grinder

Description
Additional information

The SCANTOOL 100 Industrial Belt Grinder is crafted for excellence, providing unparalleled performance and safety features. Operating at 3000 RPM with a robust 4.8 HP motor on a 3x400V-50 Hz power supply, this grinder is perfect for heavy-duty grinding tasks. It includes a 200x100x42 mm contact wheel, paired with a 100x2000 mm grinder belt and a 605 mm grinding table. The grinder's design incorporates a motor brake, separate emergency stop, and a tool-free quick belt change system, promoting ease of use and operator safety. The extra-long grinding table allows for versatile and extensive material processing. The SCANTOOL 100 is pedestal mounted for stability and ease of use, making it a valuable addition to any professional setting. CE Certified and EU Built for added assurance of quality and safety.

Technical Specifications:

RPM: 3000
Voltage: 3-Phsae, 400V, 50 Hz
Motor Power: 4.8 HP
Contact Wheel Size: 200 x 100 x 42 mm
Grinder Belt Size: 100×2000 mm
Grinding Table Size: 605 mm
Exhaust Capacity: 630 m³/h
Belt Speed: 30 m/sec
Number of Spindle Speeds: 1
Pedestal Mounted: Yes
Without Exhaust: Yes
Dimensions (LxWxH): 1025 x 550 x 1000 mm
Net Weight: 86 kg

Features and Uses:

Danish top-quality construction

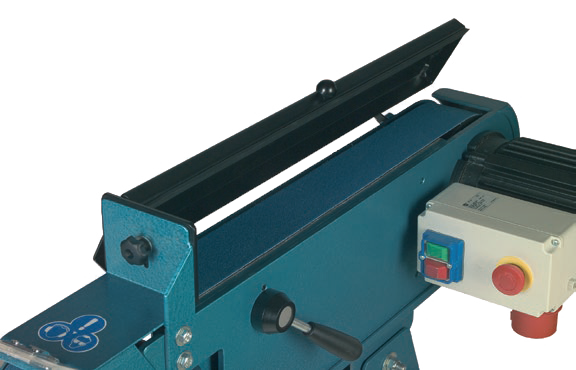

Extra-long grinding table for versatile processing
Separate emergency stop for enhanced safety
Standard motor brake for secure operation
Reliable and efficient performance
Simple and practical operation
Easy to adjust settings

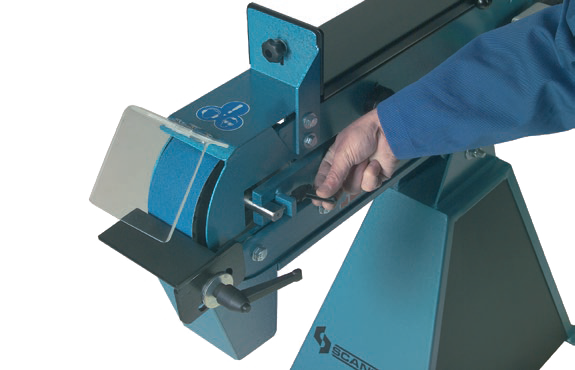

Quick belt change system without tools
5-year guarantee on the motor
CE Certified for safety and compliance
EU Built for superior craftsmanship

FAQ button for all product categories offered by The Workshop Press Company UK

Belt Grinder Category FAQs

Click HERE

Industries Using the Machine and Their Uses:

Metal Fabrication: Precision grinding and finishing of metal parts
Manufacturing: Shaping and sharpening of tools and machinery components
Heavy Equipment Maintenance: Grinding and repair of heavy-duty machinery
Shipbuilding: Surface grinding and finishing of ship components
Custom Fabrication: Creation of bespoke metal parts and prototypes
Blacksmithing: Forging and finishing of metal products
Education: Practical training and instructional use in technical and vocational schools
