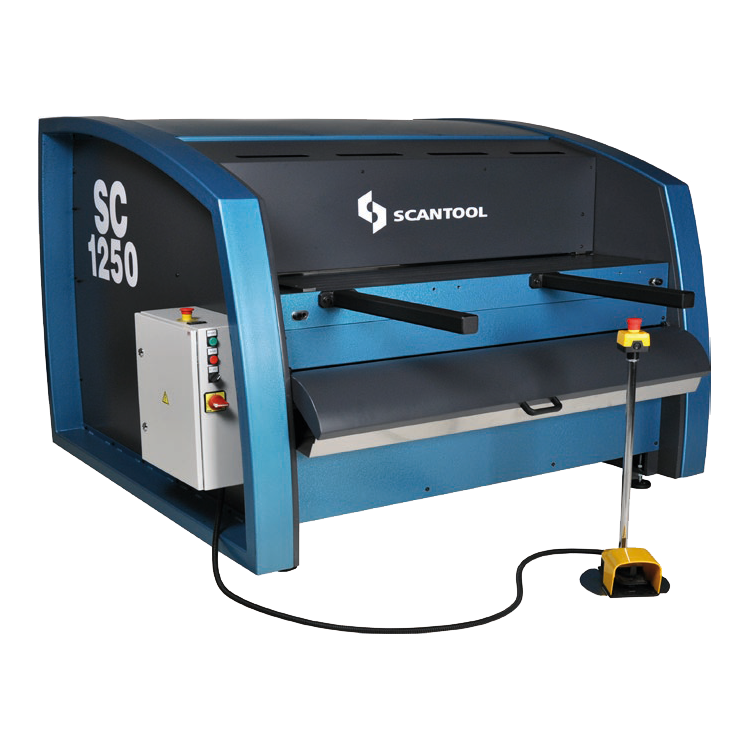

Motorised Guillotine Metal Shear • SCANTOOL 1250-40SM

Technical Specifications

• Capacity:
  1275 x 4.0 mm
• Sheet Thickness Steel:
  4.0 mm
• Working Length:
  1250 mm
• Motor:
  4 kW
• Cutting Angle:
  2.15°
• Cutting/Minute:
  40

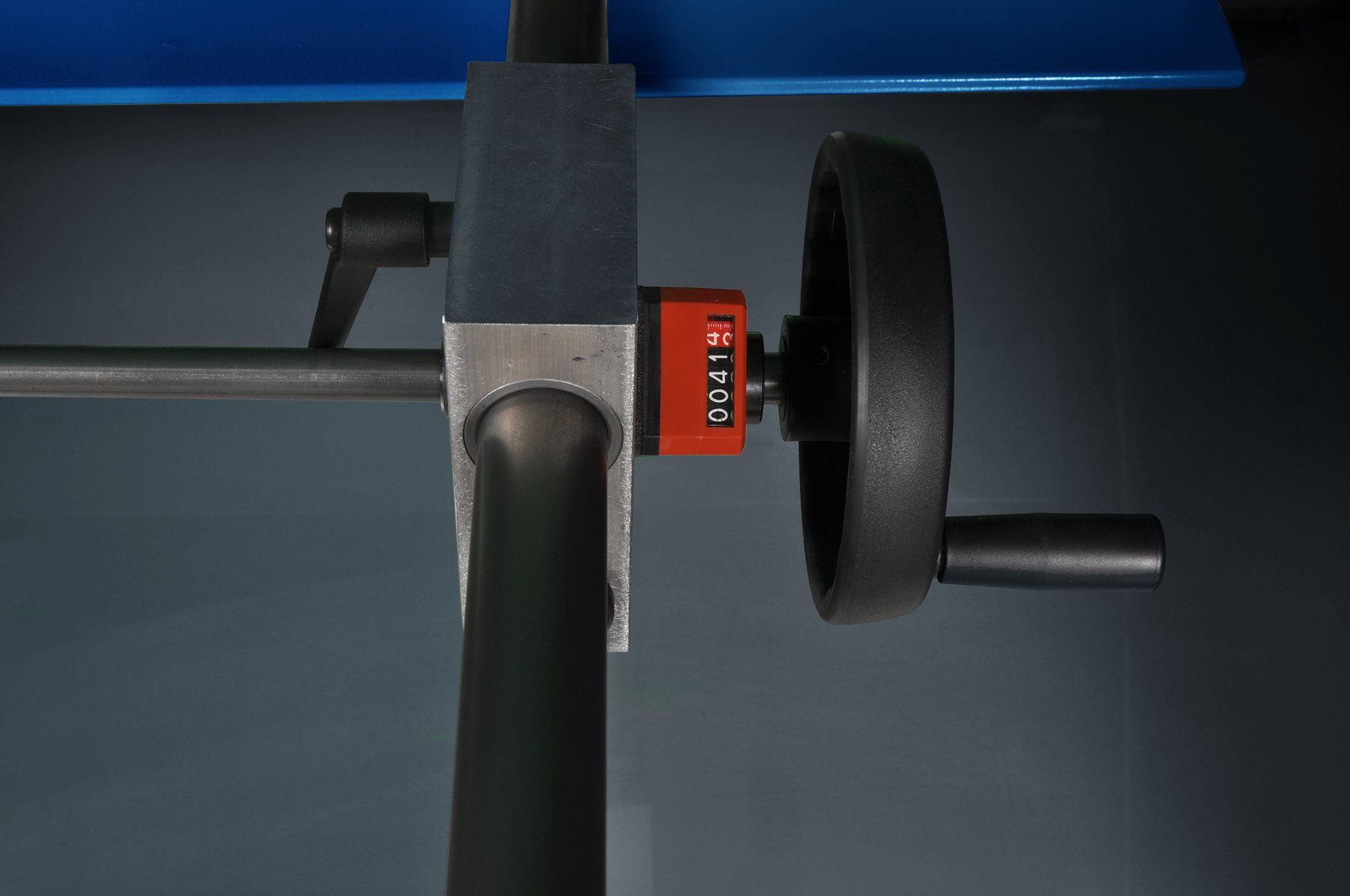

• Manual Back Gauge:
  Yes
• Length:
  2100 mm
• Width:
  2000 mm
• Height:
  1500 mm
• Net Weight:
  1350 kg

Design

• Round shape with soft corners for a modern and timeless look.

Quality

• Manufactured in Poland with the highest quality materials and components.

Functionality

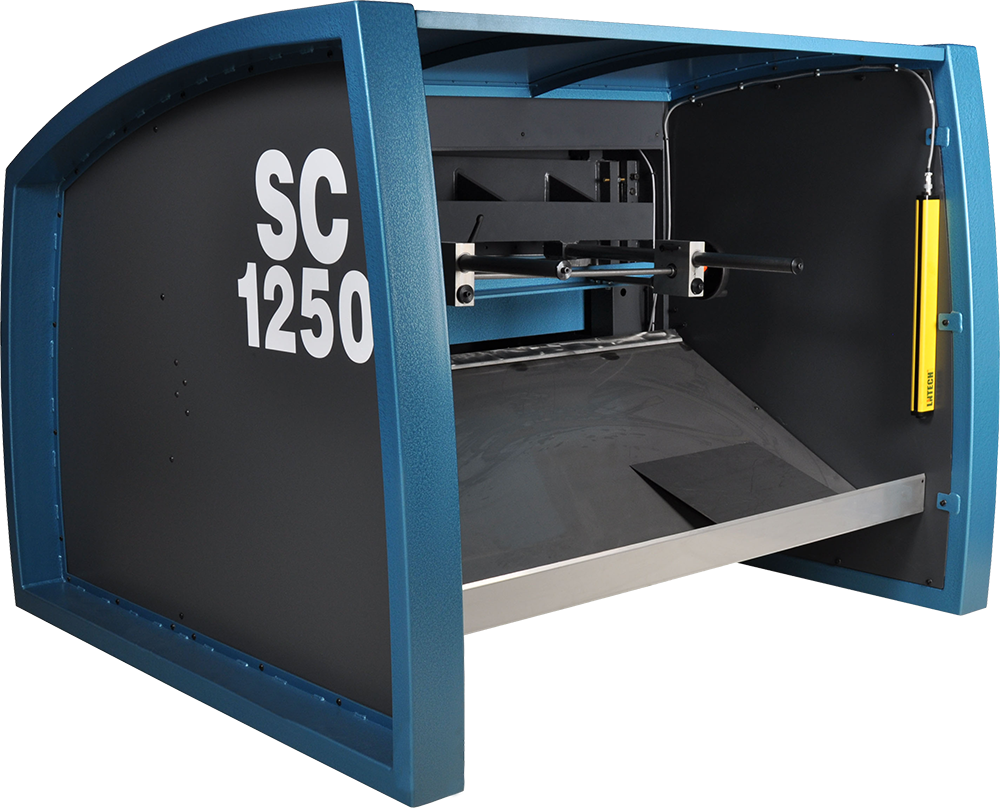

• RTO patented feature directs cut pieces below 400 mm to the front.
• Mirror for easy reading of the cutting line.
• Adjustable blade splitting from the front for easy servicing.

Ergonomics

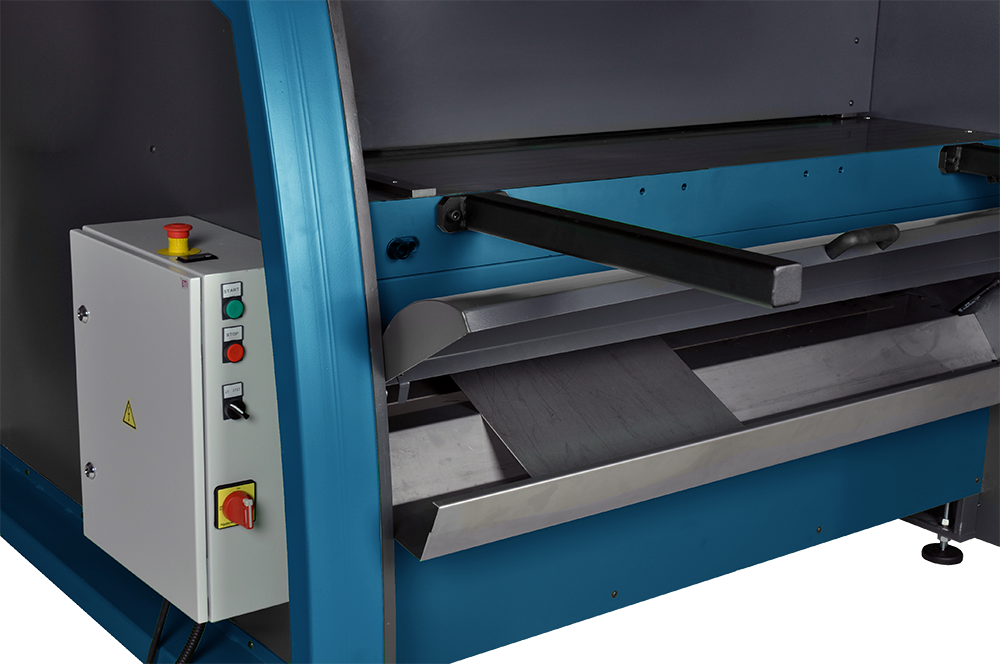

• Ergonomically placed tray for cut-piece retrieval.
• Allows operators to keep gloves on and maintain comfort during operation.

Standard Equipment

• Patented RTO system:
  Return to operator of items
• Average counter
• Motorized plate stop
• Mirror:
  For comfortable reading of the cutting line
• Table extensions:
  2 pcs., 600 mm each
• Angle stop:
• Safety equipment:
  With light beam
• Double eccentric pull:
  On the cutter bar
• Self-lubricating slide guides:
• Low blade angle:
  For a burr-free cut
• Rubber coated plate holder:
• Single or multi-clip function:
• Removable foot pedal:
  With emergency stop
• Adjustable blade splitting:
  From the front
