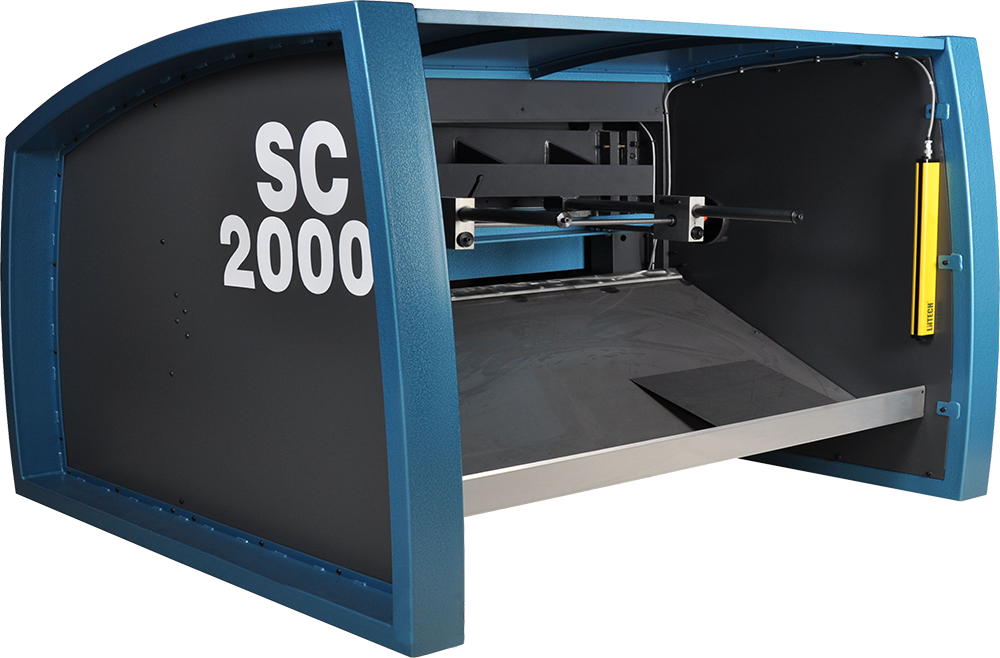

Motorised Guillotine Metal Shear • Scantool 2000-30SM

Technical Specifications

• Capacity:
  2025 x 3.0 mm
• Mild Steel Capacity:
  3.0 mm
• Stainless Steel Capacity:
  1.5 mm
• Working Length:
  2025 mm
• Motor:
  4 kW
• Cutting Angle:
  1.38°
• Cutting/Minute:
  38
• Manual Back Gauge:
  Yes
• Width:
  2000 mm
• Length:
  2900 mm
• Height:
  1500 mm
• Net Weight:
  1750 kg

Design

• Round shape with soft corners for a modern and timeless look.

Quality

• Manufactured in Poland with the highest quality materials and components.

Functionality

• RTO patented feature directs cut pieces below 400 mm to the front.
• Mirror for easy reading of the cutting line.
• Adjustable blade splitting from the front for easy servicing.

Ergonomics

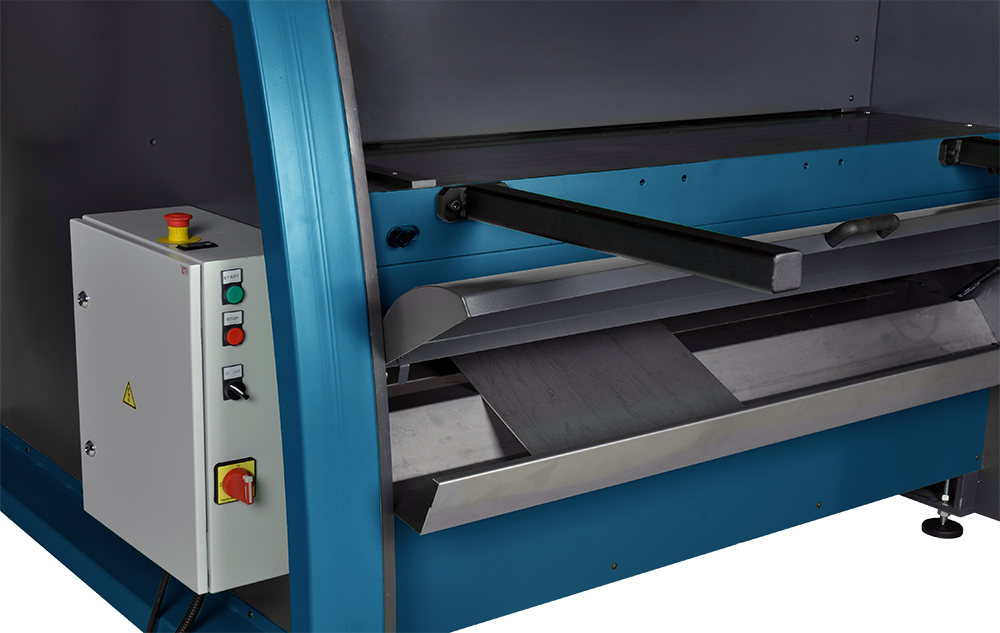

• Ergonomically placed tray for cut-piece retrieval.
• Allows operators to keep gloves on and maintain comfort during operation.

Standard Equipment

• Patented RTO system: Return to operator of items
• Average counter
• Motorized plate stop
• Mirror for comfortable reading of the cutting line
• Table extensions:
  2 pcs., 600 mm each
• Angle stop
• Safety equipment with light beam
• Double eccentric pull on the cutter bar
• Self-lubricating slide guides
• Low blade angle for a burr-free cut
• Rubber coated plate holder
• Single or multi-clip function
• Removable foot pedal with emergency stop
• Adjustable blade splitting from the front
