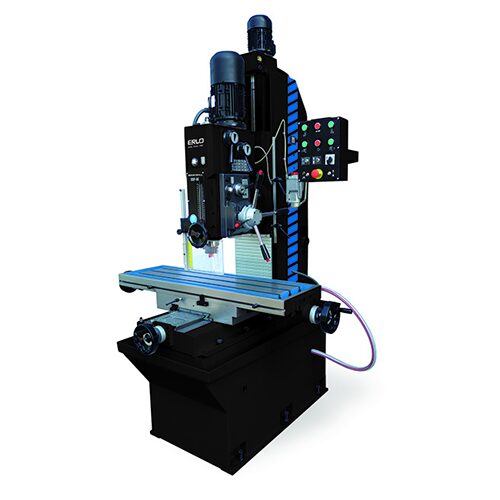

Erlo TF.35 Milling Drilling Machine – 35mm Capacity

Erlo TF.35 Milling Drilling Machine – 35mm Capacity

Please contact for prices

35 mm milling drilling machine with automatic feed, cross table, and robust prismatic column for heavy-duty applications.

The Erlo TF.35 Milling Drilling Machine combines robust construction with advanced features for precision machining tasks. It includes a prismatic column, motorized head movement, and manual grease pump for the guides, column, and table.

Equipped with 16 speeds and a cross table for versatile operations, this machine is ideal for industrial workshops. Operator safety is ensured with an emergency stop button, drill guard with micro switch, and low-voltage electrical controls. Optional accessories, such as digital depth readers and automatic tool changers, allow for expanded capabilities in high-demand environments.

Specifications

  • Drilling Capacity in Steel [Ø mm]: 35
  • Tapping Capacity in Steel [M]: 35
  • Milling Capacity [cm³/min]: 55
  • Morse Cone: CM4
  • Spindle Stroke [mm]: 180
  • Main Motor Power [kW]: 0.9 / 1.5
  • Number of Speeds: 16
  • Speed Range [rpm]: 94–2225 (standard) / up to 3272 (variator)
  • Table Dimensions [mm]: 360 x 1220
  • Longitudinal Movement (X) [mm]: 700
  • Transversal Movement (Y) [mm]: 360
  • Net Weight [kg]: 910

Features

  • Automatic feed with electromagnetic clutch
  • Prismatic column and motorized head movement
  • Cross table with large work surface
  • Manual grease pump for guides and column
  • Lighting equipment and drill guard with micro switch

Options

  • Digital depth reader (Code: 50012 LBC)
  • Automatic rotation inversion for manual tapping (Code: 50020 IR/RS)
  • Automatic tapping system with standard spindle (Code: 50035 RHP)
  • Digital displays for 1-3 axes (Codes: 50089 LDG-1, 50090 LDG-2, 50100 LDG-3)
  • Automatic longitudinal and transversal feed boxes (Codes: 50070 ENG X, 50080 ENG Y)

Additional information

Weight 1400 kg
Dimensions 2520 × 1680 × 2520 cm
