Treadle Foot Operated Guillotine Shear for Metal • Scantool
Please contact for prices
Robust foot-operated treadle guillotine for precise metal cutting, featuring a neoprene-coated sheet holder and reversible high-speed steel knife.

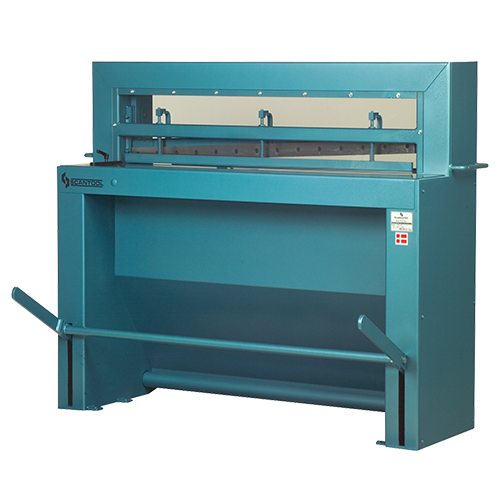

The SCANTOOL TSM 1050 is built for strength and precision. Its welded steel construction provides a stable and durable platform, while the Danish design ensures the highest quality standards. This stomp shear is ideal for cutting metal and other materials, with a neoprene-coated sheet holder that protects materials from damage and ensures a perfect cut. The knife is made from high-speed steel and is reversible for extended use. Additional features include an adjustable angle stop, a built-in working light, and a manual back gauge. This manual guillotine is engineered to handle a variety of cutting tasks efficiently.
Technical Specifications
- Capacity:
1030 x 1.25 mm - Mild Steel Capacity:
1.25 mm - Working Width:
1030 mm - Cutting Angle:
3° - Back Gauge:
550 mm - Side Stop Length:
200 mm - Length:
1380 mm - Width:
880 mm - Height:
1300 mm - Net Weight:
148 kg
Features and Uses
- Foot-operated treadle guillotine:
For hands-free operation - Neoprene-coated sheet holder:
Prevents material damage - Reversible high-speed steel knife:

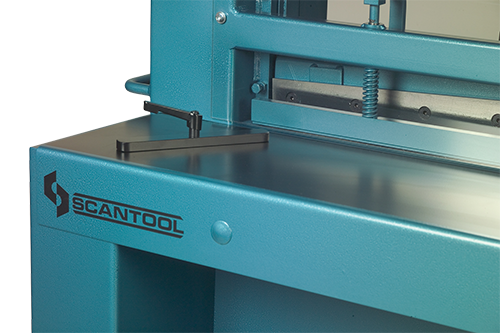

For extended use - Adjustable angle stop:

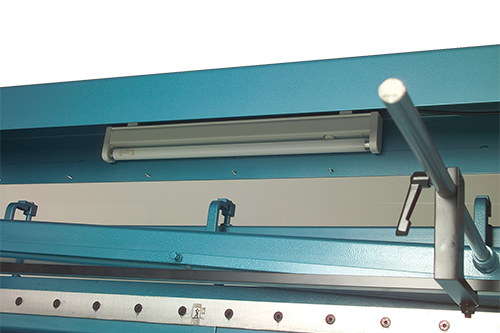

For precision cuts - Built-in working light:

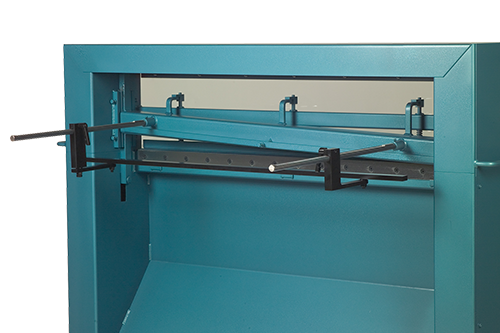

For enhanced visibility - Manual back gauge:
For accurate measurements
Industries Using the Machine and Their Uses
- Metal fabrication:
Precise cutting of metal sheets - Manufacturing:
Cutting various materials for production - Automotive:
Shaping and cutting metal parts - Aerospace:
Precision cutting for components
Additional information
| Weight | 310 kg |
|---|---|
| Dimensions | 1680 × 1210 × 1300 cm |
