Tube and Pipe Notcher – 150RB – Scantool
Please contact for prices
Heavy-duty pipe notcher and belt grinder with 17–100 mm capacity, roll versatility, and a 2-year SCANTOOL industrial warranty.

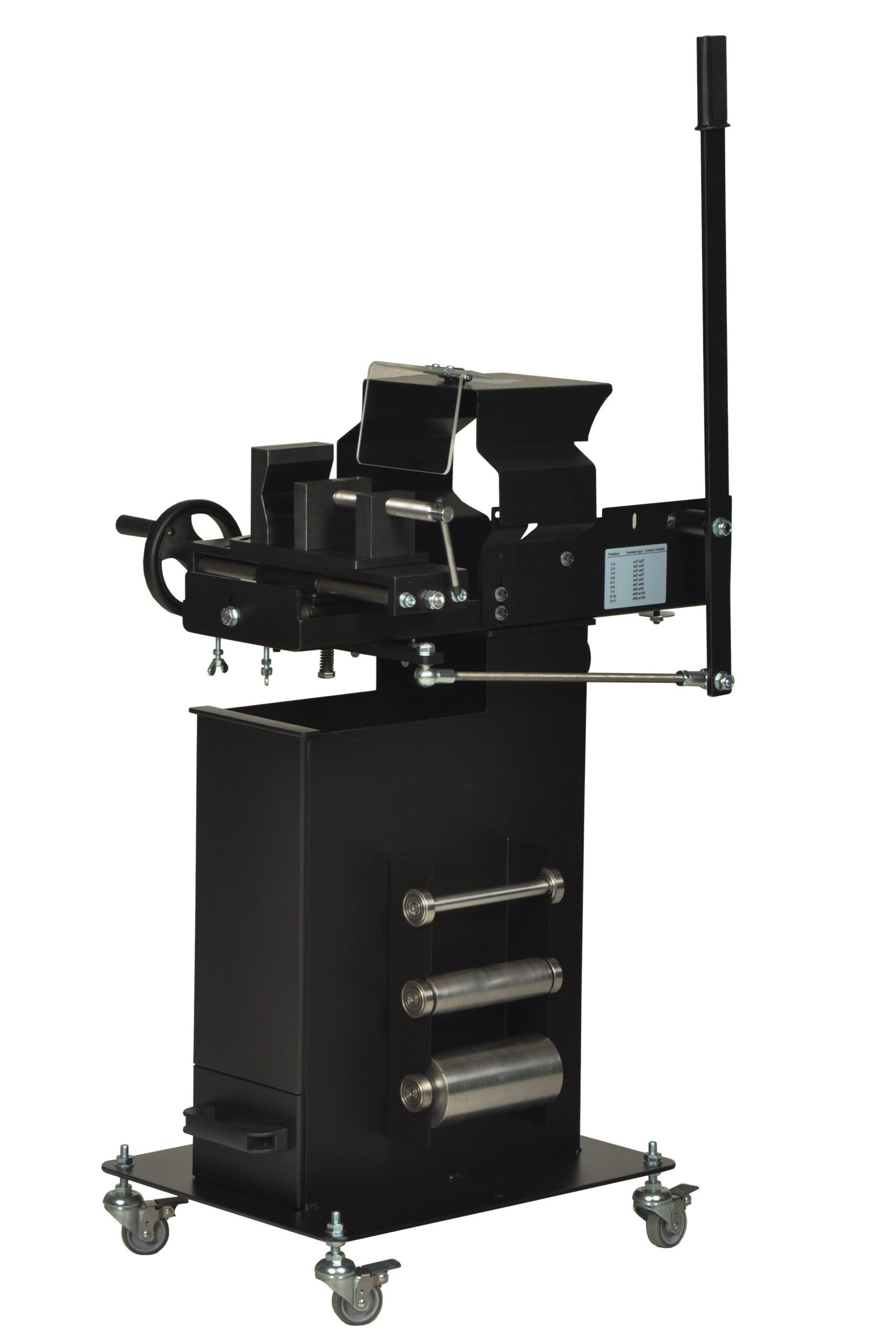

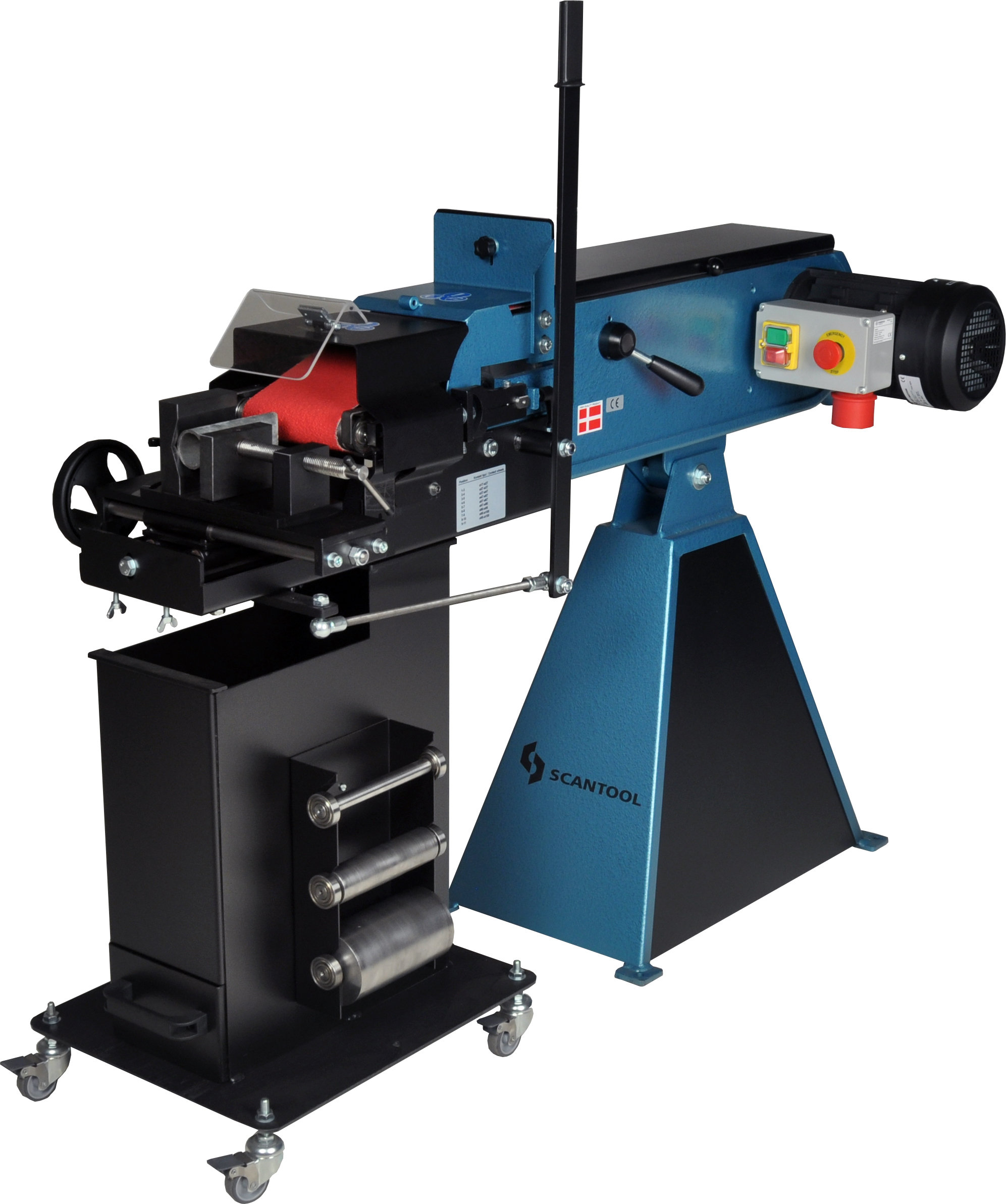

The SCANTOOL 150RB is a multi-functional belt grinder engineered for pipe notching and high-capacity grinding. It handles pipes from 17 mm to 100 mm, allowing grinding angles between 0° and 60°, and converts effortlessly to a standard belt sander once pipe work is complete. Its 4.8 HP motor and selectable spindle speeds (2800/3300 RPM) ensure powerful, continuous operation. The machine is pedestal-mounted and compact, ideal for industrial environments where durability and flexibility are paramount. The 150RB is delivered with a 42 mm roll and supports optional roll sets for all common tube/pipe sizes. Covered by SCANTOOL’s 2-year warranty, this machine is a long-term investment for professional shops.
Technical Specifications
- Pipe Diameter [mm]: 17–100
- Included Roll [mm]: 42
- Grinding Angle [°]: 0–60
- Grinding Belt [mm]: 150 x 2250 / 150 x 2000
- Grinding Table [mm]: 150 x 605
- Machine Height [mm]: 1020
- Machine Length [mm]: 1350
- Machine Width [mm]: 570
- Motor Power [HP]: 4.8
- Net Weight [kg]: 140
- Spindle Speeds [RPM]: 2800 / 3300
Key Features
- Dual-purpose pipe notcher and belt grinder
- Accommodates round, square, and solid pipe profiles
- Grinding angles adjustable from 0° to 60°
- Includes 42 mm roll and supports additional sizes
- Backed by a 2-year SCANTOOL industrial warranty
Optional Accessories
- Rolls for all tube and pipe diameters
- Dust Extraction System
- Abrasive Belt Kits
- Workpiece Support Extensions
- Angle Adjustment Guides
