Compact belt grinder that notches and grinds pipes from 17–70 mm, with centerless grinding compatibility and dual-speed operation.

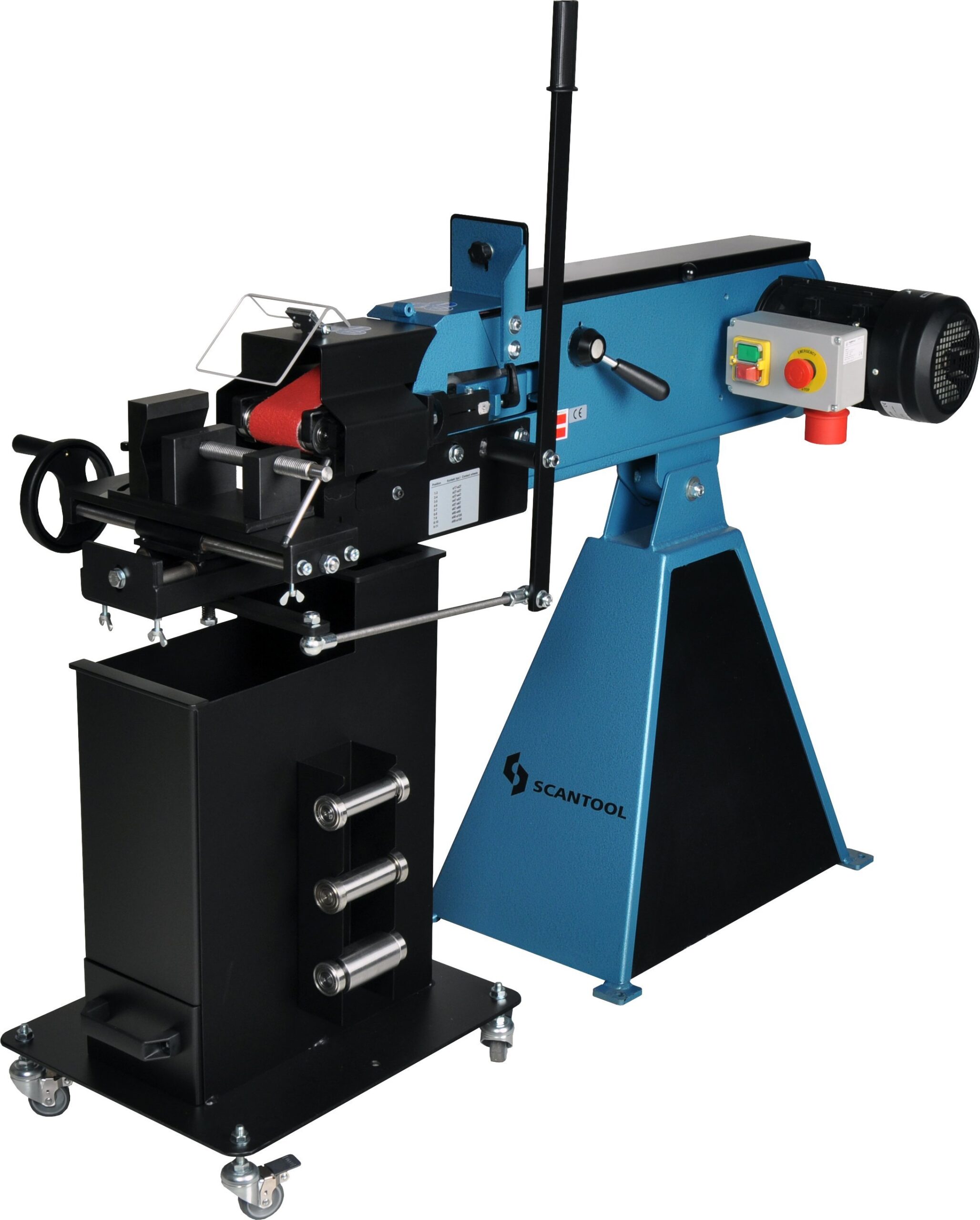

The SCANTOOL 75RB offers powerful pipe notching and grinding capability in a compact, pedestal-mounted format. Supporting pipe diameters of 17 to 70 mm, this unit allows grinding at angles from 0–60°, and can convert into a general-purpose belt sander within minutes. It includes dual spindle speeds (2800/3300 RPM) and is suitable for workshop power configurations (3x400/440V). The optional centerless attachment expands its functionality, providing three grinding processes in one compact solution. SCANTOOL backs this equipment with a reliable 1-year industrial warranty, ensuring confidence and long-term performance.

Technical Specifications

  • Pipe Diameter [mm]: 17–70
  • Included Roll [mm]: 42
  • Grinding Angle [°]: 0–60
  • Grinding Belt [mm]: 75 x 2250 / 75 x 2000
  • Grinding Table [mm]: 75 x 605
  • Machine Height [mm]: 1020
  • Machine Length [mm]: 1350
  • Machine Width [mm]: 570
  • Motor Power [HP]: 4.1
  • Net Weight [kg]: 116
  • Spindle Speeds [RPM]: 2800 / 3300
  • Saw Speed [m/min]: 30
  • Voltage: 3×400/440V – 50/60 Hz

Key Features

  • Multi-purpose machine for pipe notching and belt grinding
  • Works with round, square, and solid pipe profiles
  • Grinds pipe angles from 0° to 60°
  • Quick conversion from notching to general grinding mode
  • Compatible with optional centerless attachment (model 75 only)

Optional Accessories

  • Rolls for any and all Tube/Pipe diameters
  • Centerless Grinding Attachment (for 75 model)
  • Extra Belt Sets
  • Dust Extraction System
  • Angle Guides
  • Workpiece Support Stands

Additional information

Weight 116 kg
Dimensions 1350 × 570 × 1020 cm
