VH06 Series Multi-Spindle Drill Heads

VH06 Series Multi-Spindle Drill Heads

Name: VH06 Series Multi-Spindle Drill Heads
SKU: Erlo-Dual Drill Multi Drill CM2

Please contact for prices

Heavy-duty 2–4 spindle drill heads with ER16 interfaces and reinforced design for high-torque, high-speed production drilling.

SKU: VH062 / VH063 / VH064 Categories: Multi Drill Heads, PIllar Drill and Mill Drill Accessories Tags: ER16 drill unit, heavy-duty drill heads, multi-hole drilling fixture, multi-spindle drill head, VH06 series

Description

Built to support larger hole diameters and increased material resistance, VH06 drill heads deliver synchronized spindle motion via 1:1 gear ratio and handle rotational speeds up to 4,000 RPM. Each head in the VH06 series is equipped with ER16 tool holders and longer spindles for improved tool accessibility and thermal performance.

These multi-spindle heads are optimized for heavy-duty machining in steel, cast iron, and aluminum, with flexible options for both linear and radial spindle arrangements. They are commonly used in combination with automatic feed units, CNC integration, and industrial fixture setups.

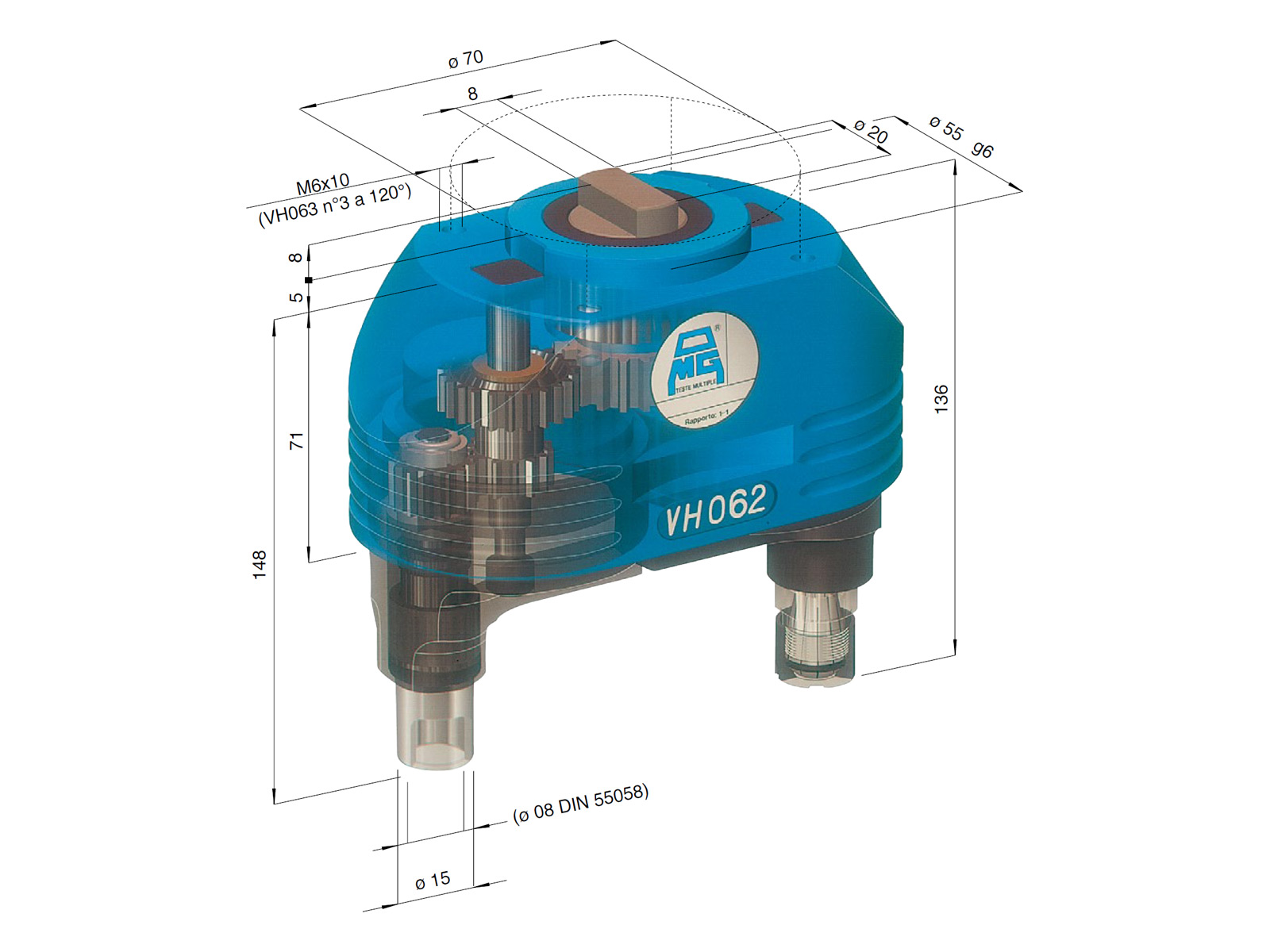

VH062

VH063 L

Technical Specifications – VH062

Item Code: VH 062
Spindle Type: ER16 – max Ø 10 mm
Number of Spindles: 2
Working Range – Center Distances [mm]: 19 + 19
Maximum Center Distance [mm]: 130
Drilling Capacity (Steel Rm 500 N/mm²): Ø 8 mm
Drilling Capacity (Cast Iron GG25): Ø 10 mm
Tapping Capacity: M8
Gear Ratio: 1:1
Maximum Speed [RPM]: 4,000
Weight [kg]: 2.5

Technical Specifications – VH063L

Item Code: VH 063L
Spindle Type: ER16 – max Ø 10 mm
Number of Spindles: 3
Working Range – Center Distances [mm]: 19 + 19
Maximum Center Distance [mm]: 76
Drilling Capacity (Steel Rm 500 N/mm²): Ø 8 mm
Drilling Capacity (Cast Iron GG25): Ø 10 mm
Tapping Capacity: M8
Gear Ratio: 1:1
Maximum Speed [RPM]: 4,000
Weight [kg]: 3.0

VH063

VH064

Technical Specifications – VH063

Item Code: VH 063
Spindle Type: ER16 – max Ø 10 mm
Number of Spindles: 3
Working Range – Center Distances [mm]: Ø 25.7
Maximum Center Distance [mm]: Ø 108
Drilling Capacity (Steel Rm 500 N/mm²): Ø 8 mm
Drilling Capacity (Cast Iron GG25): Ø 10 mm
Tapping Capacity: M8
Gear Ratio: 1:1
Maximum Speed [RPM]: 4,000
Weight [kg]: 4.0

Technical Specifications – VH064

Item Code: VH 064
Spindle Type: ER16 – max Ø 10 mm
Number of Spindles: 4
Working Range – Center Distances [mm]: Ø 36.5
Maximum Center Distance [mm]: Ø 120
Drilling Capacity (Steel Rm 500 N/mm²): Ø 8 mm
Drilling Capacity (Cast Iron GG25): Ø 10 mm
Tapping Capacity: M8
Gear Ratio: 1:1
Maximum Speed [RPM]: 4,000
Weight [kg]: 4.5

Model	Spindle Count	Center Distance (Min-Max)	Drilling Capacity	Tapping Capacity	Max RPM	Weight
VH 042	2	12 mm – 72 mm	4 mm	M3	4,000	0.95 kg
VH 043 L	3	12 mm + 12 mm 42 mm + 42 mm	4 mm	M3	4,000	1.05 kg
VH 043	3	0 mm – 785 mm	4 mm	M3	4,000	1.4 kg
VH 044	4	0 mm – 895 mm	4 mm	M3	4,000	1.9 kg
VH 062	2	17 mm – 93 mm	6 mm	M5	4,000	1.65 kg
VH 063 L	3	175 mm + 175 mm 555 mm + 555 mm	6 mm	M5	4,000	1.95 kg
VH 063	3	0 mm – 103 mm	6 mm	M5	4,000	2.3 kg
VH 064	4	0 mm – 117 mm	6 mm	M5	4,000	3.1 kg
VH 082	2	24 mm – 108 mm	8 mm	M6	4,000	2.2 kg
VH 083 L	3	24 mm + 24 mm 66 mm + 66 mm	8 mm	M6	4,000	2.9 kg
VH 083	3	0 mm – 120 mm	8 mm	M6	4,000	3.4 kg
VH 084	4	0 mm – 137 mm	8 mm	M6	4,000	4.6 kg
VH 102	2	28 mm – 120 mm	10 mm	M8	3,500	3.5 kg
VH 103 L	3	28 mm + 28 mm 74 mm + 74 mm	10 mm	M8	3,500	4.9 kg
VH 103	3	0 mm – 132 mm	10 mm	M8	3,500	4.9 kg
VH 104	4	0 mm – 152 mm	10 mm	M8	3,500	7.2 kg
VH 132	2	35 mm – 151 mm	13 mm	M10	3,000	5.3 kg
VH 133 L	3	35 mm + 35 mm 93 mm + 93 mm	13 mm	M10	3,000	7.2 kg
VH 133	3	0 mm – 167 mm	13 mm	M10	3,000	7.7 kg
VH 134	4	0 mm – 191 mm	13 mm	M10	3,000	10.8 kg
VH 181	2	41 mm – 173 mm	18 mm	M14	2,500	8.3 kg
VH 182	2	41 mm – 173 mm	18 mm	M14	2,500	10.75 kg
VH 183 L	3	41 mm + 41 mm 107 mm + 107 mm	18 mm	M14	2,500	12 kg
VH 183	3	0 mm – 191 mm	18 mm	M14	2,500	15.75 kg
VH 184	4	0 mm – 218 mm	18 mm	M14	2,500	19.75 kg
VH 201	2	45 mm – 184 mm	20 mm	M16	2,500	9.2 kg
VH 202	2	45 mm – 184 mm	20 mm	M16	2,500	12.3 kg
VH 203 L	3	45 mm + 45 mm 110 mm + 110 mm	20 mm	M16	2,500	13.8 kg
VH 203	3	0 mm – 206 mm	20 mm	M16	2,500	17.3 kg
VH 204	4	0 mm – 229 mm	20 mm	M16	2,500	21.3 kg
VH 251	2	50 mm – 208 mm	25 mm	M20	2,000	10.7 kg
VH 252	2	50 mm – 208 mm	25 mm	M20	2,000	13.7 kg
VH 253 L	3	50 mm + 50 mm 110 mm + 110 mm	25 mm	M20	2,000	15.7 kg
VH 253	3	0 mm – 229 mm	25 mm	M20	2,000	19.7 kg
VH 254	4	0 mm – 253 mm	25 mm	M20	2,000	23.7 kg

How These Devices Attach to the Drill Press

The VH series heads are designed to be compatible with standard pillar drills using several standardized attachment methods to ensure secure and efficient operation. The attachment mechanisms follow DIN standards, which dictate the type of tooling interfaces that can be used. Below is an explanation of the DIN standards that are applicable and how they affect the attachment of the device to the drill press:

Installation and Setup

The VH series heads are designed for quick and easy installation on standard drill presses.

Quick Installation: Tooling interfaces like collet chucks and drill sleeves allow for rapid installation of the VH series heads. Operators can swiftly change out heads as needed, enabling different operations without significant delays.
Easy Setup: Once the appropriate attachment method (sleeve, collet chuck, or steep taper) is selected, aligning and securing the VH series head is straightforward. This ensures repeatability in positioning and operational accuracy.

View Pillar Drill Press FAQs
Clicking HERE
