VH13 Series Multi-Spindle Drill Heads
Front image of the VH04 series
Front image of VH043 L
Front image of VH043
Front image of VH044

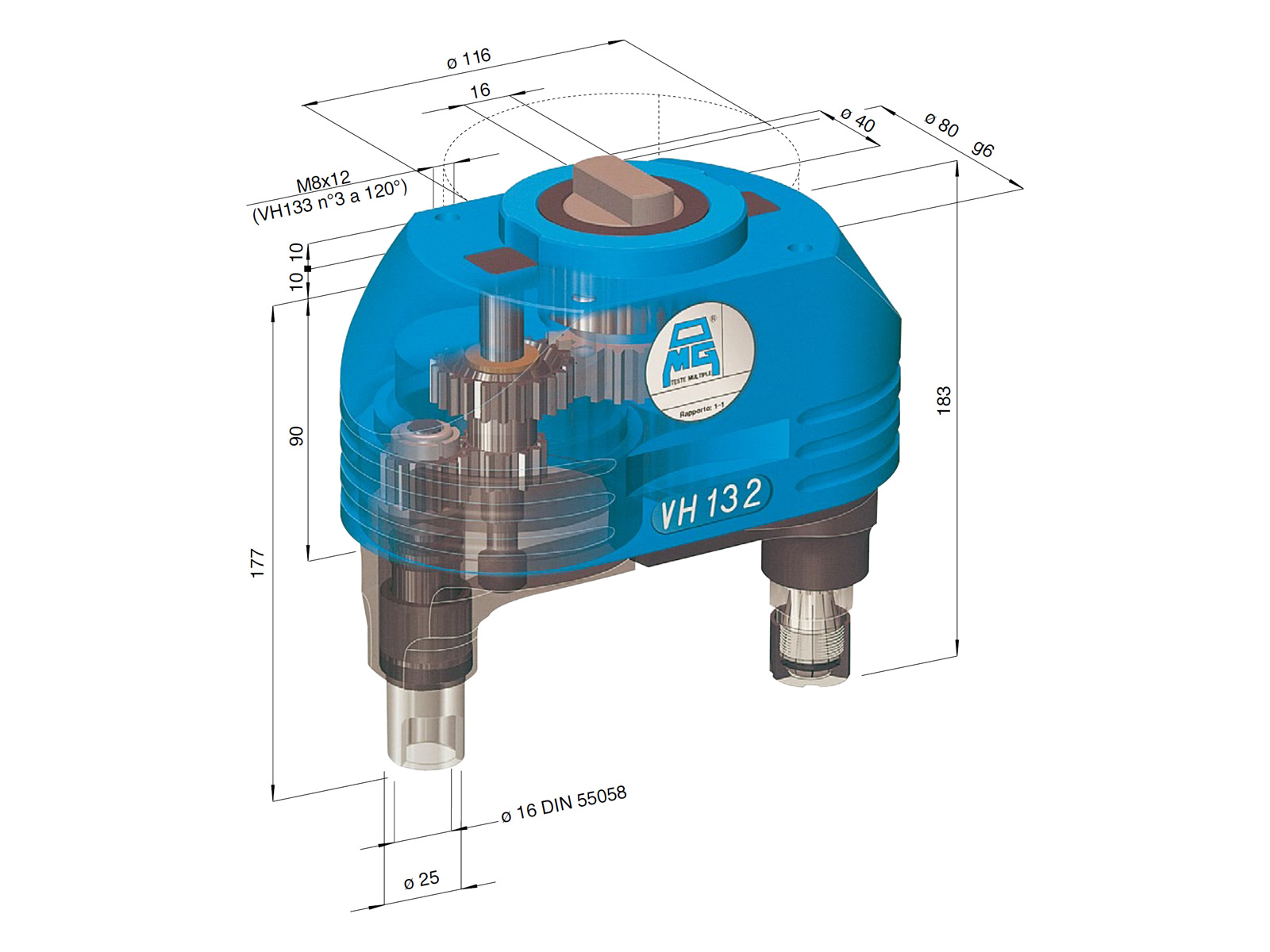

VH13 series image

VH13 Series Multi-Spindle Drill Heads

Please contact for prices

Heavy-duty ER25 multi-spindle drill heads for large-diameter drilling with radial or linear spindle arrangements for industrial production.

SKU: VH132 / VH133L / VH133 / VH134 Categories: , Tags: , , , ,

The VH13 Series delivers unmatched durability and precision for high-demand drilling environments. Using ER25 spindles, these heads can accommodate tooling up to Ø 16 mm and tap up to M12 in steel. Each model is built with a reinforced housing and precision-ground gearing for synchronized spindle motion, allowing consistent performance at speeds up to 4,000 RPM.

Ideal for CNC machining centers, automated drilling lines, and fixture-mounted production cells, the VH13 Series is available in multiple configurations to cover a wide range of multi-hole patterns in one operation.

Front image of the VH04 series

VH132

Front image of VH043 L

VH133 L

Technical Specifications – VH132

  • Item Code: VH132
  • Number of Spindles: 2
  • Spindle Type: ER25 – max Ø 16 mm
  • Center Distance [mm]: 45 + 45
  • Maximum Center Distance [mm]: 220
  • Drilling Capacity (Steel Rm 500 N/mm²): Ø 16 mm
  • Drilling Capacity (Cast Iron GG25): Ø 18 mm
  • Tapping Capacity: M12
  • Gear Ratio: 1:1
  • Maximum Speed [RPM]: 4,000
  • Weight [kg]: 6.5

Technical Specifications – VH133L

  • Item Code: VH133L
  • Number of Spindles: 3
  • Spindle Type: ER25 – max Ø 16 mm
  • Center Distance [mm]: 45 + 45
  • Maximum Center Distance [mm]: 170
  • Drilling Capacity (Steel Rm 500 N/mm²): Ø 16 mm
  • Drilling Capacity (Cast Iron GG25): Ø 18 mm
  • Tapping Capacity: M12
  • Gear Ratio: 1:1
  • Maximum Speed [RPM]: 4,000
  • Weight [kg]: 8.2

Front image of VH043

VH133

Front image of VH044

VH134

Technical Specifications – VH133

  • Item Code: VH133
  • Number of Spindles: 3
  • Spindle Type: ER25 – max Ø 16 mm
  • Radial Layout: Ø 54 mm spacing
  • Maximum Center Distance [mm]: Ø 180
  • Drilling Capacity (Steel Rm 500 N/mm²): Ø 16 mm
  • Drilling Capacity (Cast Iron GG25): Ø 18 mm
  • Tapping Capacity: M12
  • Gear Ratio: 1:1
  • Maximum Speed [RPM]: 4,000
  • Weight [kg]: 8.5

Technical Specifications – VH134

  • Item Code: VH134
  • Number of Spindles: 4
  • Spindle Type: ER25 – max Ø 16 mm
  • Radial Layout: Ø 72 mm spacing
  • Maximum Center Distance [mm]: Ø 200
  • Drilling Capacity (Steel Rm 500 N/mm²): Ø 16 mm
  • Drilling Capacity (Cast Iron GG25): Ø 18 mm
  • Tapping Capacity: M12
  • Gear Ratio: 1:1
  • Maximum Speed [RPM]: 4,000
  • Weight [kg]: 10.1

Model Spindle
Count		 Center Distance
(Min-Max)		 Drilling
Capacity		 Tapping
Capacity		 Max
RPM		 Weight
VH 042 2 12 mm – 72 mm 4 mm M3 4,000 0.95 kg
VH 043 L 3 12 mm + 12 mm
42 mm + 42 mm		 4 mm M3 4,000 1.05 kg
VH 043 3 0 mm – 785 mm 4 mm M3 4,000 1.4 kg
VH 044 4 0 mm – 895 mm 4 mm M3 4,000 1.9 kg
VH 062 2 17 mm – 93 mm 6 mm M5 4,000 1.65 kg
VH 063 L 3 175 mm + 175 mm
555 mm + 555 mm		 6 mm M5 4,000 1.95 kg
VH 063 3 0 mm – 103 mm 6 mm M5 4,000 2.3 kg
VH 064 4 0 mm – 117 mm 6 mm M5 4,000 3.1 kg
VH 082 2 24 mm – 108 mm 8 mm M6 4,000 2.2 kg
VH 083 L 3 24 mm + 24 mm
66 mm + 66 mm		 8 mm M6 4,000 2.9 kg
VH 083 3 0 mm – 120 mm 8 mm M6 4,000 3.4 kg
VH 084 4 0 mm – 137 mm 8 mm M6 4,000 4.6 kg
VH 102 2 28 mm – 120 mm 10 mm M8 3,500 3.5 kg
VH 103 L 3 28 mm + 28 mm
74 mm + 74 mm		 10 mm M8 3,500 4.9 kg
VH 103 3 0 mm – 132 mm 10 mm M8 3,500 4.9 kg
VH 104 4 0 mm – 152 mm 10 mm M8 3,500 7.2 kg
VH 132 2 35 mm – 151 mm 13 mm M10 3,000 5.3 kg
VH 133 L 3 35 mm + 35 mm
93 mm + 93 mm		 13 mm M10 3,000 7.2 kg
VH 133 3 0 mm – 167 mm 13 mm M10 3,000 7.7 kg
VH 134 4 0 mm – 191 mm 13 mm M10 3,000 10.8 kg
VH 181 2 41 mm – 173 mm 18 mm M14 2,500 8.3 kg
VH 182 2 41 mm – 173 mm 18 mm M14 2,500 10.75 kg
VH 183 L 3 41 mm + 41 mm
107 mm + 107 mm		 18 mm M14 2,500 12 kg
VH 183 3 0 mm – 191 mm 18 mm M14 2,500 15.75 kg
VH 184 4 0 mm – 218 mm 18 mm M14 2,500 19.75 kg
VH 201 2 45 mm – 184 mm 20 mm M16 2,500 9.2 kg
VH 202 2 45 mm – 184 mm 20 mm M16 2,500 12.3 kg
VH 203 L 3 45 mm + 45 mm
110 mm + 110 mm		 20 mm M16 2,500 13.8 kg
VH 203 3 0 mm – 206 mm 20 mm M16 2,500 17.3 kg
VH 204 4 0 mm – 229 mm 20 mm M16 2,500 21.3 kg
VH 251 2 50 mm – 208 mm 25 mm M20 2,000 10.7 kg
VH 252 2 50 mm – 208 mm 25 mm M20 2,000 13.7 kg
VH 253 L 3 50 mm + 50 mm
110 mm + 110 mm		 25 mm M20 2,000 15.7 kg
VH 253 3 0 mm – 229 mm 25 mm M20 2,000 19.7 kg
VH 254 4 0 mm – 253 mm 25 mm M20 2,000 23.7 kg



How These Devices Attach to the Drill Press

The VH series heads are designed to be compatible with standard pillar drills using several standardized attachment methods to ensure secure and efficient operation. The attachment mechanisms follow DIN standards, which dictate the type of tooling interfaces that can be used. Below is an explanation of the DIN standards that are applicable and how they affect the attachment of the device to the drill press:

Installation and Setup

The VH series heads are designed for quick and easy installation on standard drill presses.

  • Quick Installation: Tooling interfaces like collet chucks and drill sleeves allow for rapid installation of the VH series heads. Operators can swiftly change out heads as needed, enabling different operations without significant delays.
  • Easy Setup: Once the appropriate attachment method (sleeve, collet chuck, or steep taper) is selected, aligning and securing the VH series head is straightforward. This ensures repeatability in positioning and operational accuracy.
