VH18 Series Multi-Spindle Drill Heads

VH18 Series Multi-Spindle Drill Heads

Name: VH18 Series Multi-Spindle Drill Heads
SKU: Erlo-Dual Drill Multi Drill CM2

Please contact for prices

Heavy-duty ER32 multi-spindle drill heads for high-capacity drilling, available in 2–4 spindle configurations with radial or linear layouts.

SKU: VH182 / VH183L / VH183 / VH184 Categories: Multi Drill Heads, PIllar Drill and Mill Drill Accessories Tags: ER32 drill unit, high-torque drilling, large-diameter drill head, multi-spindle drill head, VH18 series

Description

The VH18 Series combines reinforced housing, precision-ground gearing, and ER32 spindles for maximum performance in large-hole drilling applications. Capable of drilling up to Ø 20 mm in steel and Ø 22 mm in cast iron, these heads deliver synchronized, vibration-free operation at speeds up to 3,000 RPM.

Available in 2, 3, and 4 spindle variants, the VH18 series supports both radial and linear spindle configurations, allowing for custom drilling patterns in a single pass. The high-torque design makes these heads suitable for CNC machining centers, heavy-duty transfer lines, and fixed drilling installations.

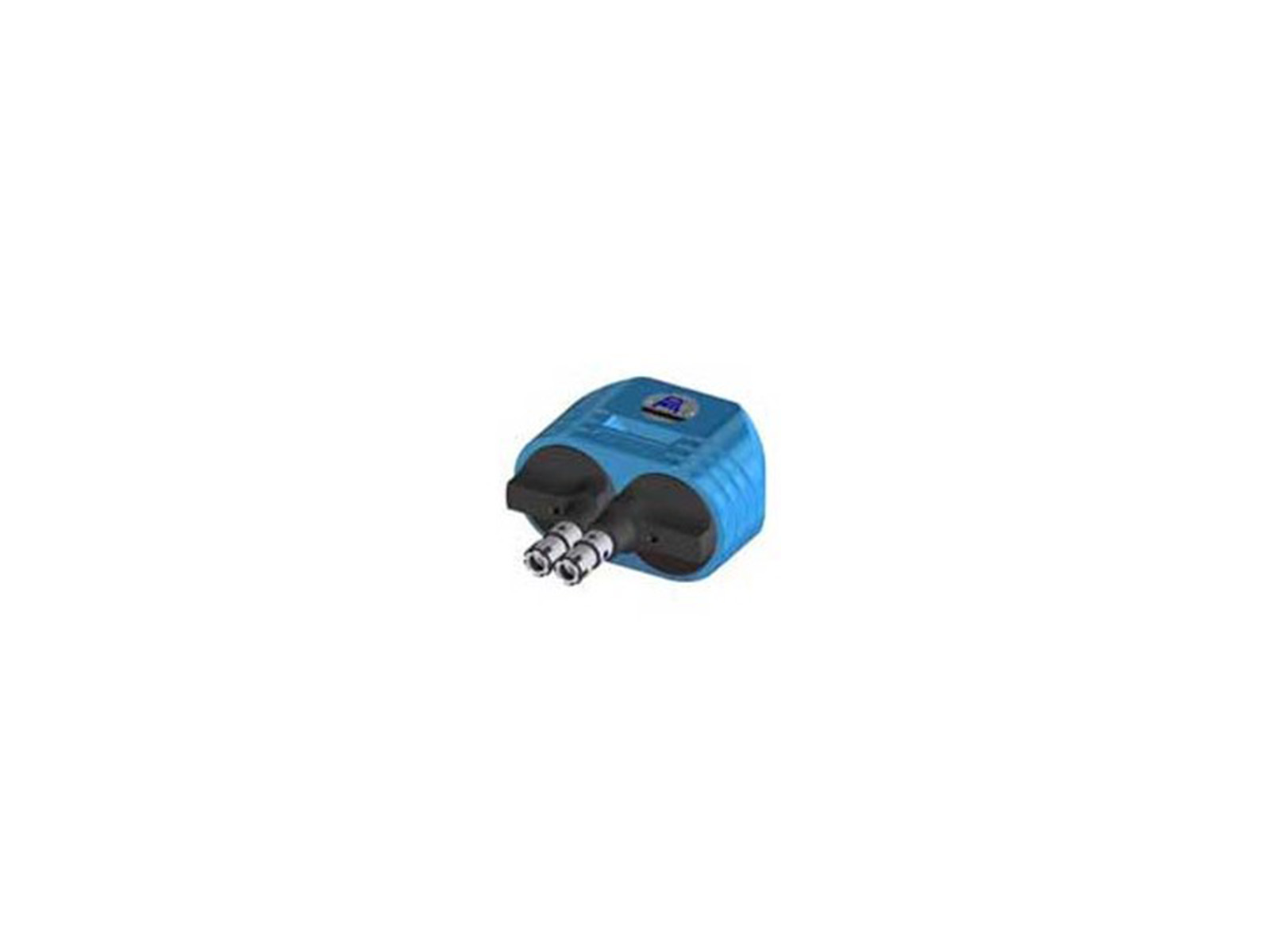

VH182

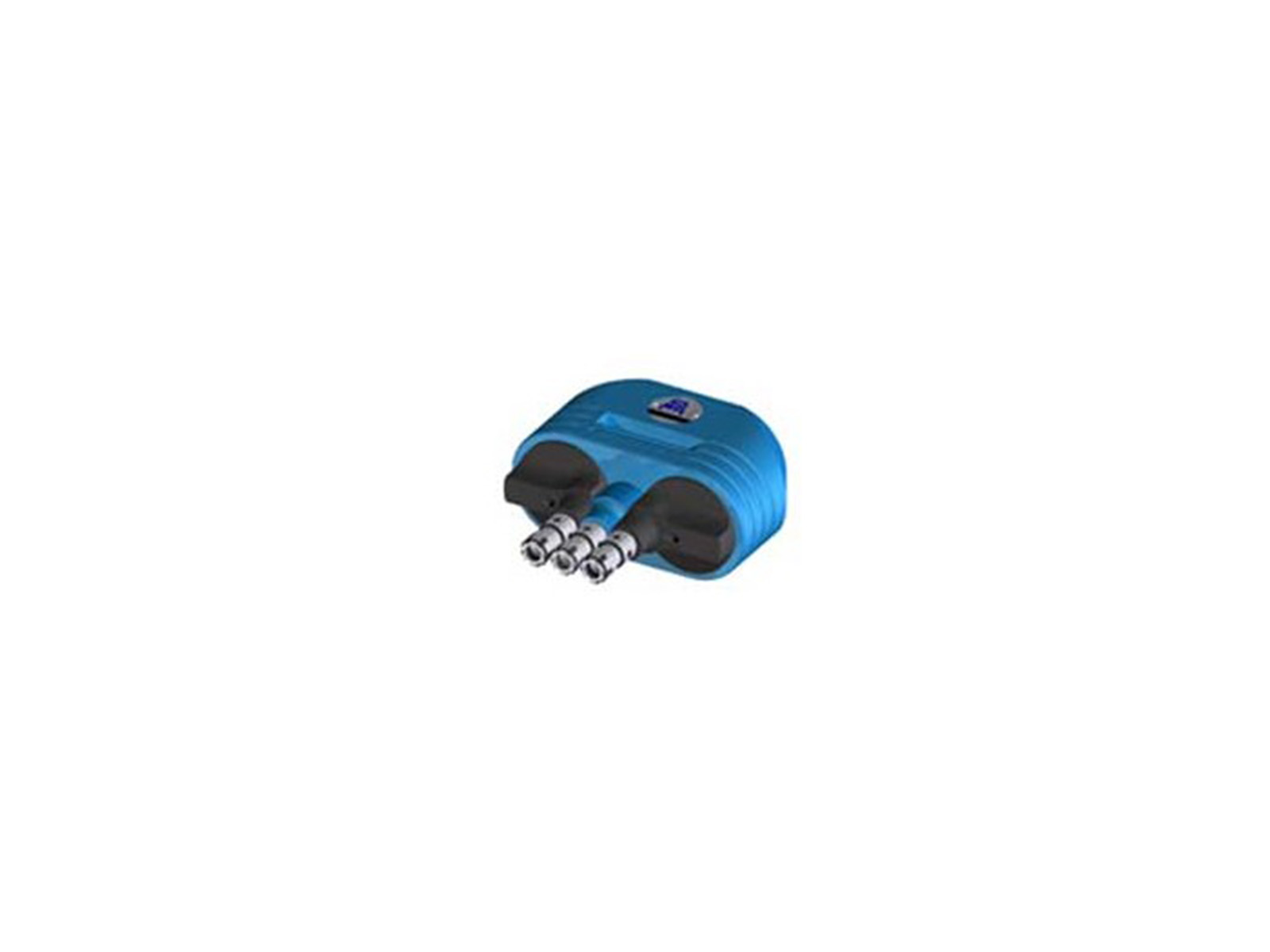

VH183 L

Technical Specifications – VH182

Item Code: VH182
Number of Spindles: 2
Spindle Type: ER32 – max Ø 20 mm
Center Distance [mm]: 60 + 60
Drilling Capacity (Steel Rm 500 N/mm²): Ø 20 mm
Drilling Capacity (Cast Iron GG25): Ø 22 mm
Tapping Capacity: M16
Gear Ratio: 1:1
Maximum Speed [RPM]: 3,000
Weight [kg]: 9.0

Technical Specifications – VH183L

Item Code: VH183L
Number of Spindles: 3
Spindle Type: ER32 – max Ø 20 mm
Layout: Linear
Center Distance [mm]: 60 + 60
Drilling Capacity (Steel Rm 500 N/mm²): Ø 20 mm
Drilling Capacity (Cast Iron GG25): Ø 22 mm
Tapping Capacity: M16
Gear Ratio: 1:1
Maximum Speed [RPM]: 3,000
Weight [kg]: 11.8

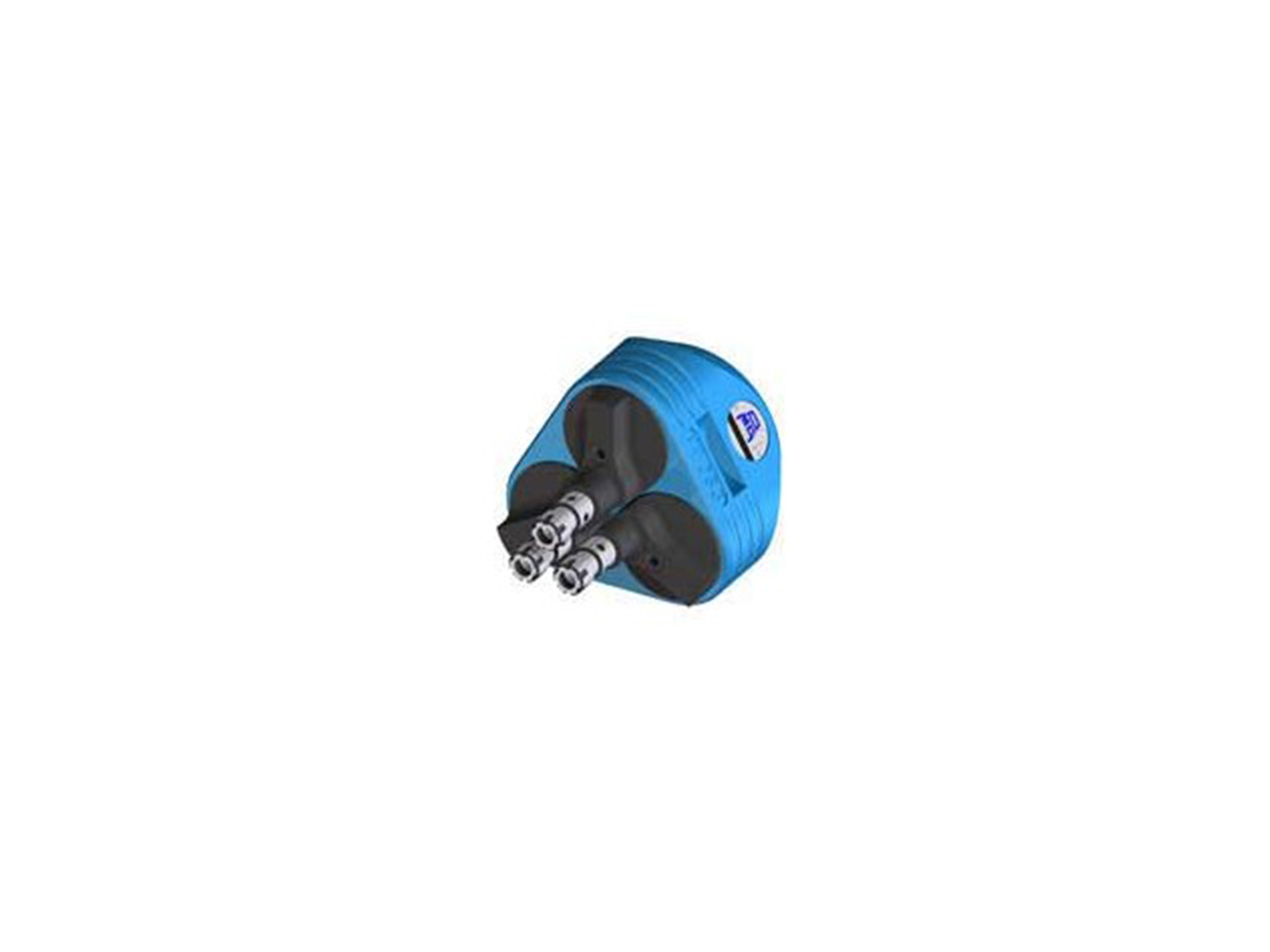

VH183

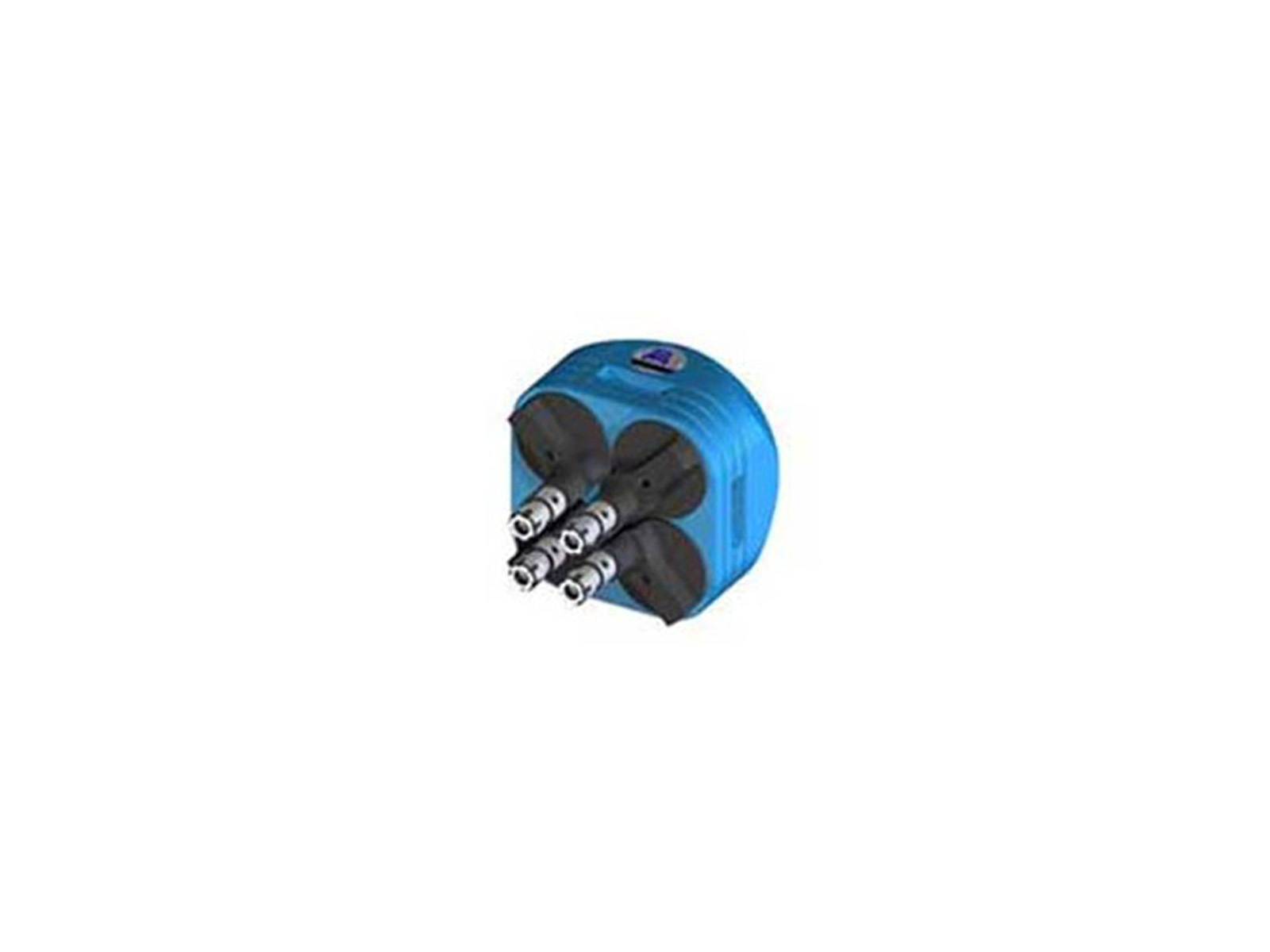

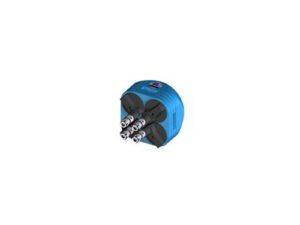

VH184

Technical Specifications – VH183

Item Code: VH183
Number of Spindles: 3
Spindle Type: ER32 – max Ø 20 mm
Layout: Radial
Radial Spacing [mm]: Ø 72 (inner) / Ø 240 (outer)
Drilling Capacity (Steel Rm 500 N/mm²): Ø 20 mm
Drilling Capacity (Cast Iron GG25): Ø 22 mm
Tapping Capacity: M16
Gear Ratio: 1:1
Maximum Speed [RPM]: 3,000
Weight [kg]: 12.1

Technical Specifications – VH184

Item Code: VH184
Number of Spindles: 4
Spindle Type: ER32 – max Ø 20 mm
Layout: Radial
Radial Spacing [mm]: Ø 96 (inner) / Ø 280 (outer)
Drilling Capacity (Steel Rm 500 N/mm²): Ø 20 mm
Drilling Capacity (Cast Iron GG25): Ø 22 mm
Tapping Capacity: M16
Gear Ratio: 1:1
Maximum Speed [RPM]: 3,000
Weight [kg]: 14.6

Model	Spindle Count	Center Distance (Min-Max)	Drilling Capacity	Tapping Capacity	Max RPM	Weight
VH 042	2	12 mm – 72 mm	4 mm	M3	4,000	0.95 kg
VH 043 L	3	12 mm + 12 mm 42 mm + 42 mm	4 mm	M3	4,000	1.05 kg
VH 043	3	0 mm – 785 mm	4 mm	M3	4,000	1.4 kg
VH 044	4	0 mm – 895 mm	4 mm	M3	4,000	1.9 kg
VH 062	2	17 mm – 93 mm	6 mm	M5	4,000	1.65 kg
VH 063 L	3	175 mm + 175 mm 555 mm + 555 mm	6 mm	M5	4,000	1.95 kg
VH 063	3	0 mm – 103 mm	6 mm	M5	4,000	2.3 kg
VH 064	4	0 mm – 117 mm	6 mm	M5	4,000	3.1 kg
VH 082	2	24 mm – 108 mm	8 mm	M6	4,000	2.2 kg
VH 083 L	3	24 mm + 24 mm 66 mm + 66 mm	8 mm	M6	4,000	2.9 kg
VH 083	3	0 mm – 120 mm	8 mm	M6	4,000	3.4 kg
VH 084	4	0 mm – 137 mm	8 mm	M6	4,000	4.6 kg
VH 102	2	28 mm – 120 mm	10 mm	M8	3,500	3.5 kg
VH 103 L	3	28 mm + 28 mm 74 mm + 74 mm	10 mm	M8	3,500	4.9 kg
VH 103	3	0 mm – 132 mm	10 mm	M8	3,500	4.9 kg
VH 104	4	0 mm – 152 mm	10 mm	M8	3,500	7.2 kg
VH 132	2	35 mm – 151 mm	13 mm	M10	3,000	5.3 kg
VH 133 L	3	35 mm + 35 mm 93 mm + 93 mm	13 mm	M10	3,000	7.2 kg
VH 133	3	0 mm – 167 mm	13 mm	M10	3,000	7.7 kg
VH 134	4	0 mm – 191 mm	13 mm	M10	3,000	10.8 kg
VH 181	2	41 mm – 173 mm	18 mm	M14	2,500	8.3 kg
VH 182	2	41 mm – 173 mm	18 mm	M14	2,500	10.75 kg
VH 183 L	3	41 mm + 41 mm 107 mm + 107 mm	18 mm	M14	2,500	12 kg
VH 183	3	0 mm – 191 mm	18 mm	M14	2,500	15.75 kg
VH 184	4	0 mm – 218 mm	18 mm	M14	2,500	19.75 kg
VH 201	2	45 mm – 184 mm	20 mm	M16	2,500	9.2 kg
VH 202	2	45 mm – 184 mm	20 mm	M16	2,500	12.3 kg
VH 203 L	3	45 mm + 45 mm 110 mm + 110 mm	20 mm	M16	2,500	13.8 kg
VH 203	3	0 mm – 206 mm	20 mm	M16	2,500	17.3 kg
VH 204	4	0 mm – 229 mm	20 mm	M16	2,500	21.3 kg
VH 251	2	50 mm – 208 mm	25 mm	M20	2,000	10.7 kg
VH 252	2	50 mm – 208 mm	25 mm	M20	2,000	13.7 kg
VH 253 L	3	50 mm + 50 mm 110 mm + 110 mm	25 mm	M20	2,000	15.7 kg
VH 253	3	0 mm – 229 mm	25 mm	M20	2,000	19.7 kg
VH 254	4	0 mm – 253 mm	25 mm	M20	2,000	23.7 kg

How These Devices Attach to the Drill Press

The VH series heads are designed to be compatible with standard pillar drills using several standardized attachment methods to ensure secure and efficient operation. The attachment mechanisms follow DIN standards, which dictate the type of tooling interfaces that can be used. Below is an explanation of the DIN standards that are applicable and how they affect the attachment of the device to the drill press:

Installation and Setup

The VH series heads are designed for quick and easy installation on standard drill presses.

Quick Installation: Tooling interfaces like collet chucks and drill sleeves allow for rapid installation of the VH series heads. Operators can swiftly change out heads as needed, enabling different operations without significant delays.
Easy Setup: Once the appropriate attachment method (sleeve, collet chuck, or steep taper) is selected, aligning and securing the VH series head is straightforward. This ensures repeatability in positioning and operational accuracy.

View Pillar Drill Press FAQs
Clicking HERE
