Workshop Press • Extended Controls • Motorised • Any Tonnage

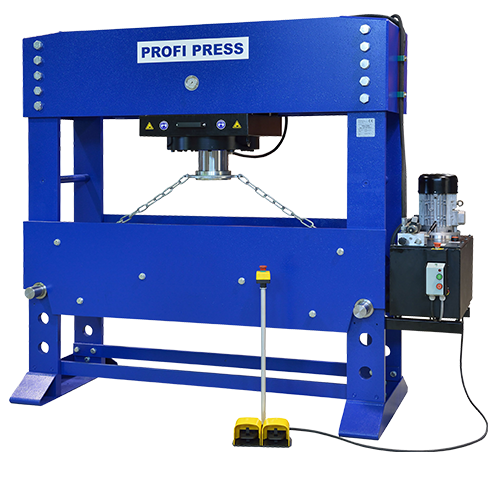

Motorised Workshop Presses can be fitted with a footpedal to replace the joystick to control up and down operations of the pedestal.
Workshop Press • Extended Controls • Motorised • Any Tonnage - Image 2
Workshop Press • Extended Controls • Motorised • Any Tonnage - Image 3
Workshop Profi Press 300 ton hydraulic view
Workshop Press table adjustment hydraulic side view
Workshop Press Primary Piston with End Cover Adapter
Workshop Press Primary Piston with Tool Adapter Groove
Piston Cover with Securing Grub Screws - Top Down View
Piston Cover with Securing Grub Screws - Bottom Up View

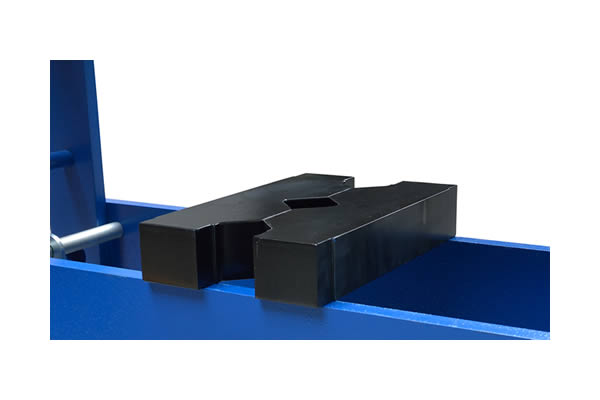

Workshop press optional tooling V-Block front view
Workshop press optional tooling V-Block facing down view
Workshop Press • Extended Controls • Motorised • Any Tonnage - Image 12

Workshop Press • Extended Controls • Motorised • Any Tonnage

Please contact for prices

Discover the power of hydraulic presses with WorkshopPress.co.uk’s premium RHTC models. Enhance your operations with top-quality hydraulic workshop presses designed for durability, reliability, and efficiency. From pressing to forming, folding, and riveting, our hydraulic presses empower your business with expanded capabilities and increased profitability. Invest in excellence with Workshop Press today.

SKU: Motorised WSP with Foot Pedal All Models Categories: , , Tags: , , , , , , , , , , , ,

Unlock the full potential of your workshop with the Workshop Press Motorised Foot Pedal Movable Cylinder. This hydraulic workshop press is engineered to deliver exceptional performance and versatility, making it an essential tool for various pressing and forming applications. Whether you're straightening, folding, or pressing materials, this press offers unmatched precision and efficiency. Built with robust materials and advanced technology, it ensures durability, reliability, and stability, enabling you to maximize productivity while minimizing downtime. With its motorized foot pedal and movable cylinder design, it provides effortless operation and precise control, making it ideal for professional workshops, manufacturing facilities, and assembly lines. Elevate your productivity and efficiency with the Workshop Press Motorised Foot Pedal Movable Cylinder - your ultimate hydraulic solution.

Capacity Table for Foot Operated Workshop Presses.

Press –> 30 TON M/H-2 60 TON M/H-M/C-2 100 TON M/H-M/C-2 100 TON M/H-M/C-2 D=1500 160 TON M/H-M/C-2 160 TON M/H-M/C-2 D=1500 200 TON M/H-M/C-2 300 TON M/H-M/C-2 D=1750
Technical specifications PP10014FP PP10028FP PP10058FP PP10061FP PP10083FP PP10084FP PP10085FP PP10090FP
Force [kN]: 294 588 981 981 1570 1570 1962 2943
Pressure max. [bar]: 221 259 258 258 255 255 243 260
Stroke [mm]: 380 380 380 380 400 400 400 480
Oil delivery [l/min]: 2.82 / 11.84 2.82 / 11.84 5.64/17.2 5.64/17.2 7.1/27.6 7.1/27.6 7.1/27.6 12/33
Oil capacity [dm³]: 37 41 46 46 57 57 64 100
Press speed [mm/sec]: 3.57 2.07 2.47 2.47 2.4 2.4 1.84 1.8
Lowering speed [mm/sec]: 9.8 8.69 7.54 7.54 7.48 7.48 5.73 4.9
Return speed [mm/sec]: 18.11 10.79 9.6 9.06 9.35 9.35 7.08 6.2
Motor [kW]: 1.5 1.5 2.2 2.2 3 3 3 5.5
Voltage [V]: 400/3 400/3 400/3 400/3 400/3 400/3 400/3 400/3
Frequency [hz]: 50 50 50 50 50 50 50 50
RPM [rpm]: 3000 3000 3000 3000 3000 3000 3000 2800
Insulation protection [IP]: 54 54 54 54 54 54 54 54
Insulation classification: I I I I I I I I
Movable cylinder: No Yes Yes Yes Yes Yes Yes Yes
Speeds 2 2 2 2 2 2 2 2
Working width [mm]: 750 750 1100 1500 1100 1500 1300 1750
Weight [kg]: 385 540 970 1145 1195 1430 1690 3150
Diameters
Inside: 130 170 220 220 280 280 325 380
Piston rod: 55 75 90 90 125 125 140 180
Piston head: 80 100 120 120 160 160 175 215
Diamgram Ref.
A 2120 2120 2140 2080 2200 2270 2270 2250
B 1000 1000 1350 1750 1410 1810 1610 2120
C 695 695 755 755 825 825 865 985
D 750 750 1100 1500 1100 1500 1300 1750
E 260 260 300 300 380 380 410 500
F 1315 1315 1665 2065 1725 2125 1925 2550
G 150 150 150 150 150 150 150 177
H 200 197 180 130 180 180 180 180
I 750 750 750 750 750 750 750 531
J 805 805 865 865 935 935 975 1085
K 160 200 250 250 325 325 368 420



Dimensions refer to above table

Dimensions for different sized Motorised Workshop Presses where letters displayed related to a particular dimension.

Customisations & Modifcations

  • 1-Phase Motor
  • 60 Hz Motor
  • Bespoke dimensions
  • System Inetegrations
  • Bespoke Applications

Optional Accessories & Tools

  • V-Block sets
  • foot pedals
  • hand controls
  • additional safety features
  • system integrations
  • mandrel sets
  • corner rounding notchers
  • corner wedge-shaped punches
  • corner notchers
  • hole punches of all shapes and sizes
  • tube and pipe notching
  • drain hole nibbler punch
  • brake press tooling
  • custom tools

Motorised Workshop Press Chart
